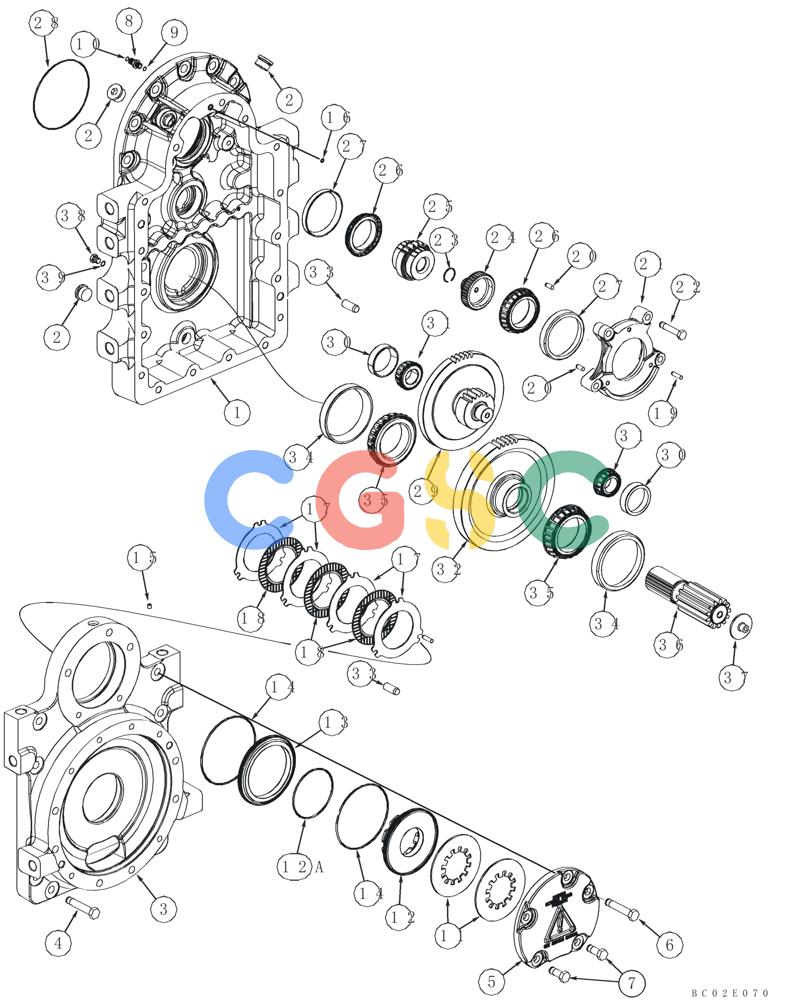

| . . | 385250A4 | [2] | DRIVE ASSY. | RACFinal Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; Incl. Ref 1 - 39; Also Includes Figure 06-08, Ref 1 - 23, 24 - 27 Superseded by part number: 87724629 |
| . . | 87724629R | [2] | REMAN-AXLE | RACD75 (1/06-), Reman For New P/N 385250A4 Superseded by part number: 87724629 |
| . . | 87724629C | [1] | CORE-AXLE | RACReturn Number |
| . . | 385251A4 | [2] | DRIVE ASSY. | RACFinal Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Incl. Ref 1 - 39; Also Includes Figure 06-08, Ref 1 - 22, 23A, 24 - 27 Superseded by part number: 84490715 |
| . . | 87724630R | [2] | REMAN-FINAL DRIVE | RACD75 (1/06-), Reman for new PN 385251A4 Superseded by part number: 87724630 |
| . . | 87724630C | [1] | CORE-FINAL DRIVE | RACReturn Number |
| 1. | 87446295 | [1] | HOUSING | BURHOUSING, Drop Housing; Use With Loctite 515 Superseded by part number: 87724625 |
| 2. | 218-5212 | [3] | PLUG,1-1/16" - 12 ORB | CASIncludes 237-6010 Superseded by part number: 72186308, 9841223 |
| . . | 237-6010 | [1] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CAS Superseded by part number: 72186125, 167269 |
| 3. | 385209A6 | [1] | HOUSING | RACCenter Housing; Use With Loctite 515 Superseded by part number: 87724626 |
| 4. | 608-16085 | [8] | BOLT,Hex, M16 x 85mm, Cl 10.9 | BRR |
| 5. | 385277A1 | [1] | PROTECTIVE COVER | RACCenter Housing; Use With Loctite 515 |
| 7. | 608-16040 | [2] | BOLT,Hex, M16 x 40mm, Cl 10.9 | BRR |
| 8. | 201-101 | [1] | HYD CONNECTOR,11/16"-16 ORFS x 9/16"-18 ORB | CASIncl Ref 9, 10 Superseded by part number: 9993143 |
| 9. | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CASBoss End Superseded by part number: 9617873 |
| 10. | 238-6012 | [1] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9993141 |
| 11. | 1997880C1 | [2] | SPRING,70.15mm ID x 155mm OD x 3.5mm Thk | IH |
| 12. | 385248A2 | [1] | BRAKE PLATE | RACPiston Brake |
| 12A. | 385236A2 | [1] | SEALING RING | RACSEALRING 1/8 x 4-3/4 |
| 13. | 385243A2 | [1] | BRAKE PLATE | RACPiston |
| 14. | 385237A2 | [2] | SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro | RACSEALRING 1/8 x 6-1/4 |
| 15. | 87520608 | [1] | EXPANSION PLUG,8mm | BRR8 mm; Expansion Plug, w/ 2 mm Nose Tip Ext.; Replaces 1345888C1 w/ Std. Nose Tip Used on Some Models |
| 16. | 238-5014 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro | CAS Superseded by part number: 130282 |
| 17. | 385244A2 | [4] | BRAKE PLATE | RACSeparator |
| 18. | A188946 | [3] | DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk | CASClutch Friction Plate |
| 19. | 837-8030 | [3] | DOWEL,M8 x 30 | CAS Superseded by part number: 9780097 |
| 20. | 837-8020 | [2] | DOWEL,8mm OD x 20mm L | CAS |
| 21. | 385246A4 | [1] | BEARING HOUSING,96 mm ID | RACInput Bearing Housing; Use With Loctite 596 |
| 22. | 608-12060 | [4] | BOLT,Hex, M12 x 60mm, Cl 10.9 | BRR |
| 23. | 385240A1 | [1] | RING, LOCKING | RACInput Gear Drop Ring |
| 24. | 385239A2 | [1] | CLUTCH INPUT SHAFT | RACUse With Loctite 767 |
| 25. | 385202A2 | [1] | GEAR | RAC19 T |
| 26. | 385264A1 | [2] | BEARING ASSY,66.67mm ID x 17.25mm W | RAC |
| 27. | 385265A1 | [2] | BEARING CUP,103.21mm OD x 11.99mm W | RAC |
| 28. | 238-7163 | [1] | O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro | CAS Superseded by part number: 87017583 |
| 29. | 385275A1 | [1] | GEAR | RACDual Countershaft |
| 30. | 385267A1 | [2] | BEARING CUP | RAC Superseded by part number: 86516462 |
| 31. | 385266A1 | [2] | BEARING ASSY,34.92 mm ID x 24.608 mm | RAC Superseded by part number: 86516471 |
| 32. | 385276A1 | [1] | GEAR | RAC67 T |
| 33. | 837-16040 | [6] | DOWEL,M16 x 40 | CAS Superseded by part number: 86639248 |
| 34. | 385269A1 | [2] | BEARING CUP | RAC Superseded by part number: 510553 |
| 35. | 385268A1 | [2] | BEARING ASSY,82.55 mm ID x 29.769 mm | RAC Superseded by part number: 86629496 |
| 36. | 385222A1 | [1] | GEAR SHAFT | RAC13 T; Sun Shaft |
| 37. | 1981270C1 | [1] | INSERT | IHWear |
| 38. | 218-5156 | [1] | PLUG,Hex Hd, 3/4"-16 ORB | CASIncl. Ref 39 Superseded by part number: 87779386, 214389 |
| 39. | 237-6008 | [1] | O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro | CAS Superseded by part number: 128825 |
