斗山零件查询AIRCONDITIONER(2) DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1009392B
|
[-] |

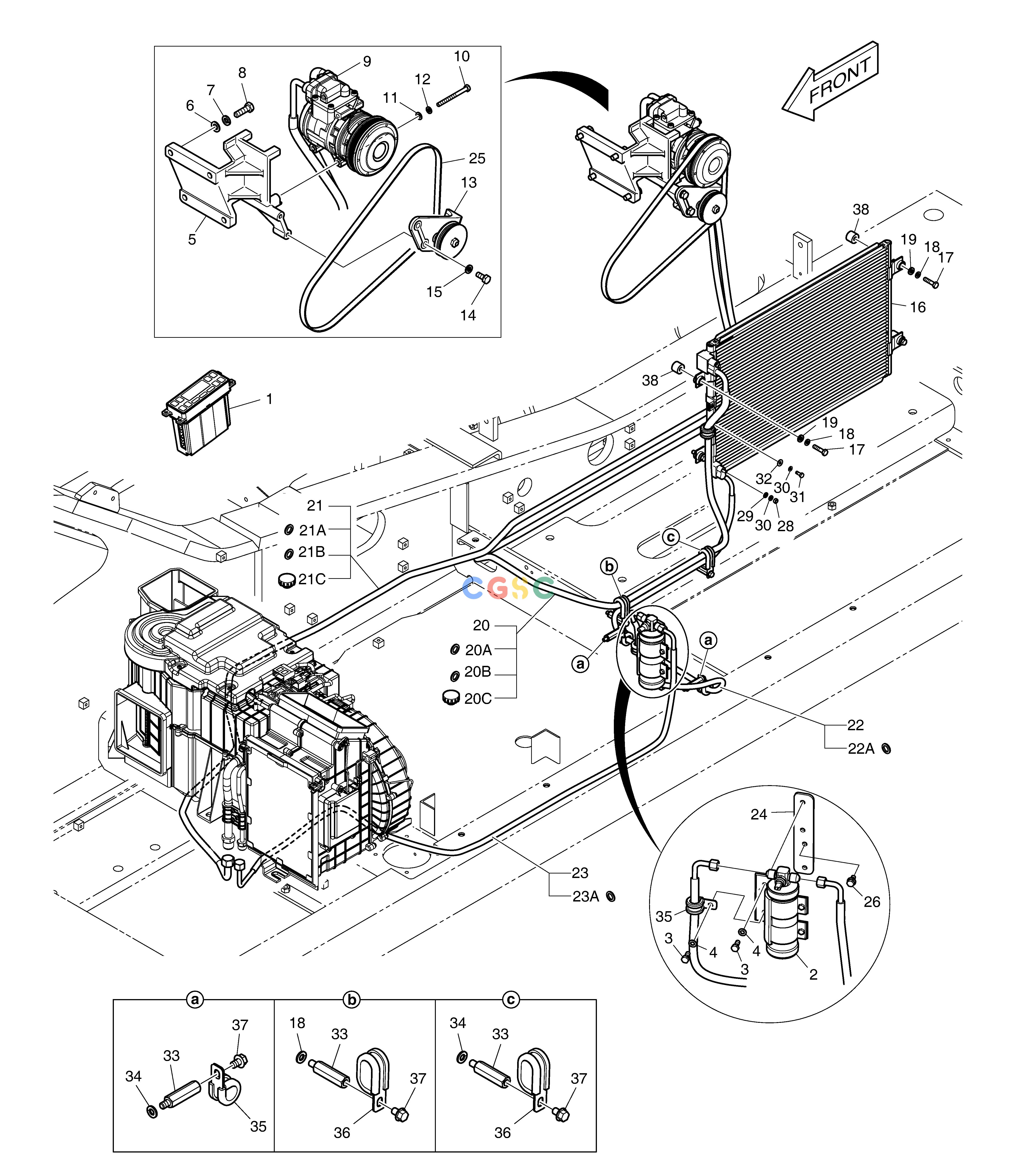

AIR CONDITIONER(2)
|
|
| 1. |
543-00107
|
[1] |
CONTROL PANEL,AIR CON
|
|
| 10. |
S0557153
|
[4] |
BOLT M8X1.25X90
|
|
| 11. |
S5010513
|
[4] |
WASHER
|
|
| 12. |
S5102503
|
[4] |
. WASHER
|
|
| 13. |
130710-00078
|
[1] |
PULLEY ASSY,IDLE
|
|
| 13. |
2107-6006
|
[1] |
PULLEY ASS'Y;IDLE
|
130710-00078
|
| 14. |
S0512053
|
[2] |
BOLT
|
|
| 15. |
S5102603
|
[2] |
. WASHER
|
|
| 16. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 17. |
S0509353
|
[4] |
BOLT M8X1.25X35
|
|
| 18. |
S5102503
|
[4] |
. WASHER
|
|
| 19. |
2114-1058D29
|
[4] |
WASHER
|
|
| 2. |
300720-00003
|
[1] |
DRYER,RECEIVER
|
|
| 2. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
300720-00003
|
| 20. |
K1010014B
|
[1] |
HOSE;DISCHARGE
|
|
| 20A. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 20B. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 20C. |
1.161-00018
|
[1] |
CAP;CHECK PORT(H)
|
|
| 21. |
185-00385B
|
[1] |
HOSE;SUCTION
|
|
| 21A. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 21B. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 21C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 22. |
K1010013B
|
[1] |
HOSE;LIQUID(1)
|
|
| 22A. |
K1011388
|
[2] |
O-RING
|
|
| 23. |
185-00387A
|
[1] |
HOSE;LIQUID(2)
|
|
| 23A. |
K1011388
|
[2] |
O-RING
|
|
| 24. |
K1009936
|
[1] |
BRACKET
|
|
| 25. |
2106-1019D25
|
[1] |
BELT;AIRCON
|
|
| 26. |
DS0025013
|
[2] |
BOLT
|
|
| 28. |
S4012303
|
[2] |
NUT
|
|
| 29. |
S5000313
|
[2] |
WASHER
|
|
| 3. |
S0508866
|
[2] |
BOLT
|
|
| 30. |
S5102303
|
[3] |
. WASHER
|
|
| 31. |
S0504653
|
[1] |
. BOLT
|
|
| 32. |
2114-1058D52
|
[2] |
WASHER
|
|
| 33. |
2120-2187
|
[4] |
BOLT
|
|
| 34. |
S5102503
|
[3] |
. WASHER
|
|
| 35. |
124-00208D3
|
[3] |
CLIP
|
|
| 36. |
124-00209D1
|
[2] |
CLIP
|
|
| 37. |
K1001029
|
[4] |
BOLT
|
|
| 38. |
K1005017
|
[4] |
SPACER
|
|
| 4. |
S5102503
|
[2] |
. WASHER
|
|
| 5. |
195-02803B
|
[1] |
BRACKET;COMPRESSOR
|
|
| 6. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 7. |
S5102703
|
[4] |
WASHER
|
|
| 8. |
S0786453
|
[4] |
BOLT;HEX.
|
|
| 9. |
440205-00070
|
[1] |
COMPRESSOR
|
|
| 9. |
2208-6013B
|
[1] |
COMPRESSOR
|
440205-00070
|
