纽荷兰零件查询(D75) - CRAWLER DOZER - NA (1/06-) (06-11) - HYDROSTATIC MOTOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
883 次

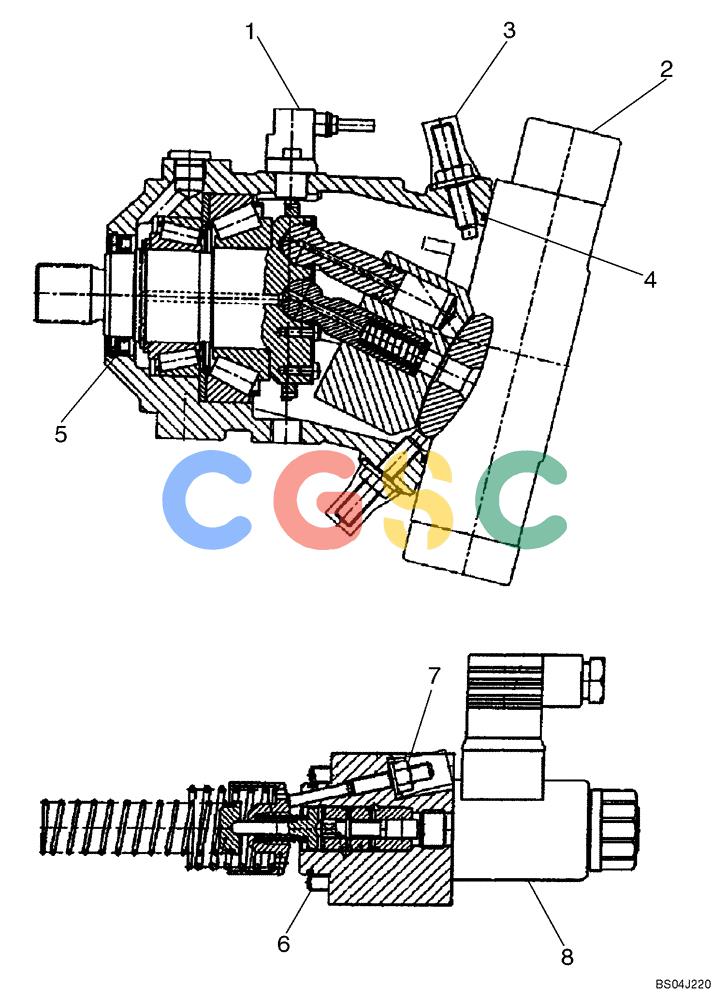

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 401629A2 | [1] | HYDROSTATIC MOTOR,80CC | BURIncl. 1 - 7, Also Incl. Parts On Figure 06-12 |
| . . | 401629A2R | [1] | REMAN-HYDROSTATIC MOTOR | BURRemanufactured, HYDROSTATIC MOTOR, 80CC |
| . . | 401629A2C | [1] | CORE-HYDROSTATIC MOTOR | BURReturn Number |
| 1. | 87440317 | [1] | SENSOR | BURMotor Speed |
| 2. | 87441435 | [1] | CONTROL BLOCK | BUR |
| 3. | 87441442 | [2] | LOCK NUT | BURSeal Lock |
| 4. | 238-5257 | [1] | O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro | CAS Superseded by part number: 87016956 |
| 5. | 87441446 | [1] | SEAL | BURShaft Seal |
| 6. | 87441443 | [1] | O-RING | BURSolenoid Base Mounting |
| 6. | 87516671 | [4] | HEX SOC SCREW,M8 x 45mm, Cl 8.8 | BURM8 x 45; Solenoid Base Mounting |
| 7. | 87441441 | [1] | LOCK NUT | BURSeal Lock |
| 8. | 87441436 | [1] | SOLENOID VALVE | BURProportional |
