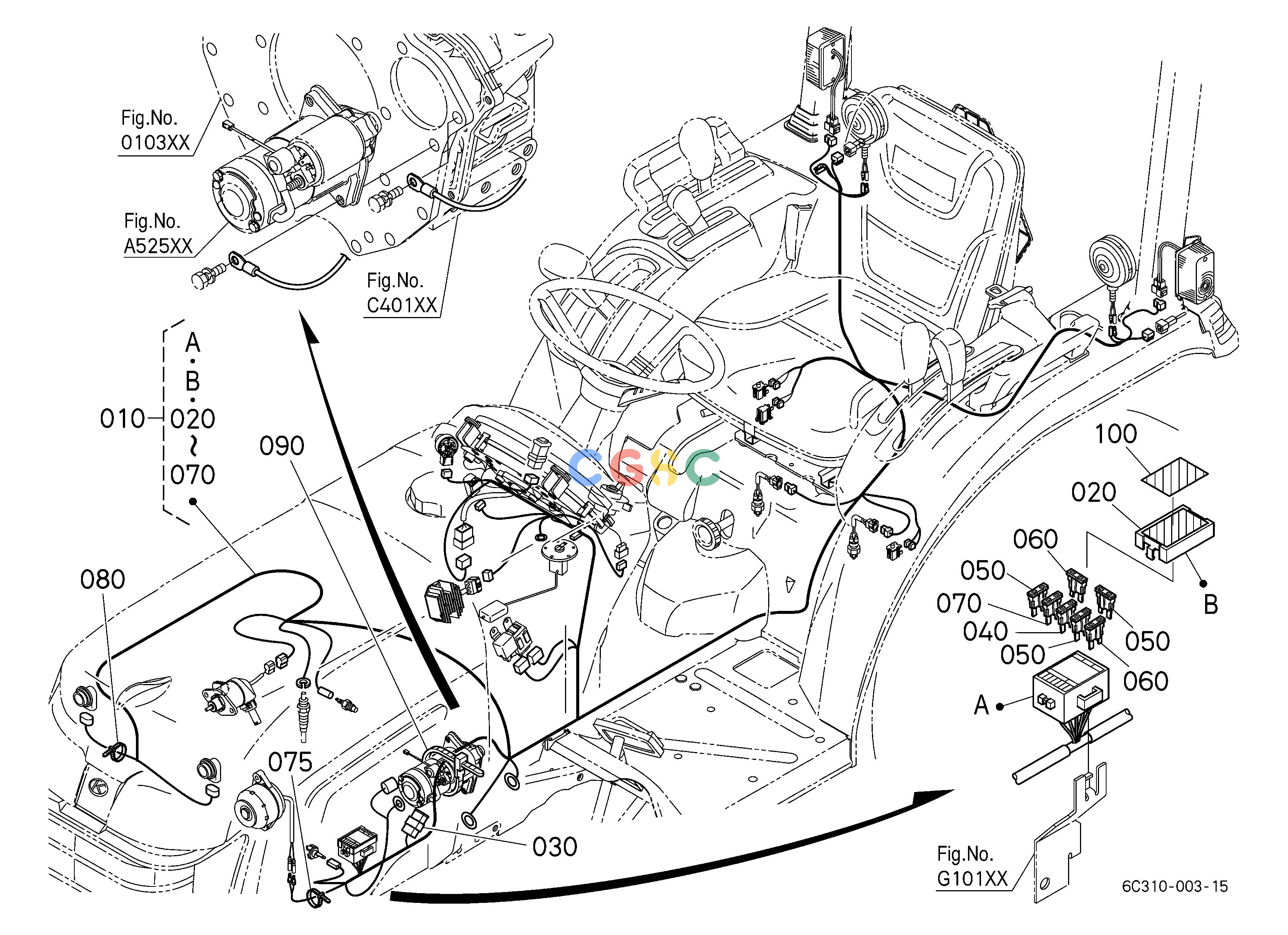

久保田零件查询B50100 ELECTRICAL WIRING (BODY) ELECTRICAL SYSTEMEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 129 次

Pos.	Part No	Qty	Parts name	Comments
010.	6C30030402	[1]	ASSY WIRE HARNESS	; <=30009 0.0000(lbs); 0.000
010.	6C30030403	[1]	ASSY WIRE HARNESS	; >=30010 2.7500(lbs); 1.250
010.	6C30030404	[1]	ASSY WIRE HARNESS	; >=30126 2.7720(lbs); 1.260
010.	6C30030407	[1]	ASSY WIRE HARNESS	; >=34408 2.7720(lbs); 1.260
010.	6C30030408	[1]	ASSY WIRE HARNESS	; >=34521 2.7720(lbs); 1.260
010.	6C30030409	[1]	ASSY WIRE HARNESS	; >=34906 2.7720(lbs); 1.260
020.	6C30030430	[1]	LABEL,FUSE	ENGLISH 0.0022(lbs); 0.001
030.	1G11165720	[1]	FUSE	30A 0.0198(lbs); 0.009
040.	T106530430	[1]	FUSE	5A 0.0022(lbs); 0.001
050.	5H05041620	[3]	FUSE	10A 0.0066(lbs); 0.003
060.	5H05041640	[2]	FUSE(20A,AUTO)	20A 0.0022(lbs); 0.001
070.	5H05041660	[1]	FUSE,AUTO(30A)	30A 0.0022(lbs); 0.001
075.	5358164150	[1]	BAND,CORD	0.0044(lbs); 0.002
080.	5358164150	[1]	BAND,CORD	0.0044(lbs); 0.002
090.	5531141260	[1]	BAND,CORD	0.0154(lbs); 0.007
100.	6C30192110	[1]	LABEL,FUSE	FRENCH 0.0022(lbs); 0.001
