神钢零件查询(8DC9) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (03-013) - FUEL HOSE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
137 次

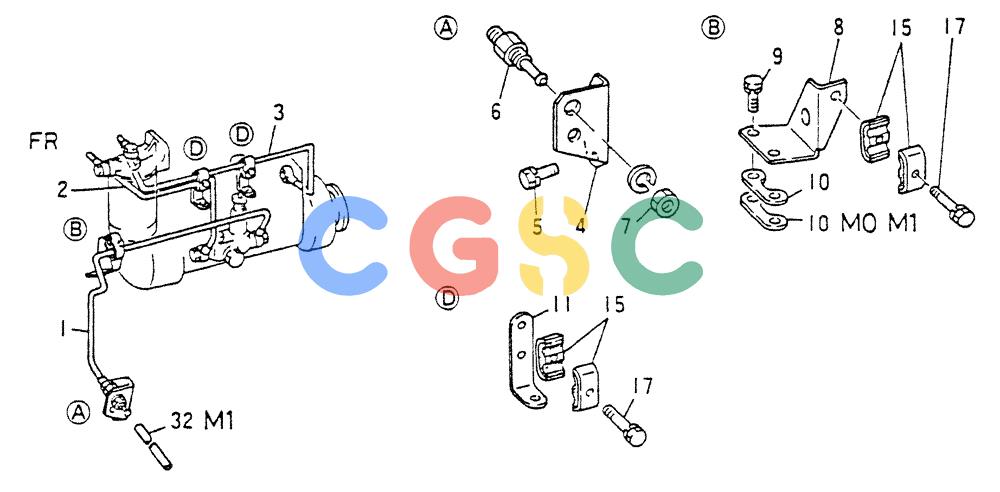

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME069067 | [1] | PIPE | KOBPIPE,FUEL FEED,NIPPLE-F/P (FOR M0 & M1 ONLY) (FF:P - PARTS EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINE) |
| 1. | VAME069068 | [1] | PIPE,FUEL FEED,NIPPLE-F/P (FOR M3 ONLY) | |
| 2. | VAME069070 | [1] | PIPE,FUEL FEED,F/P-FILTER (FOR M0 & M1 ONLY) | |
| 2. | VAME069071 | [1] | PIPE,FUEL FEED,F/P-FILTER (FOR M3 ONLY) | |
| 3. | VAME069072 | [1] | PIPE | KOBPIPE,FUEL FEED,FILTER-I/P (FOR M0 & M1 ONLY) |
| 3. | VAME060522 | [1] | PIPE,FUEL FEED,FILTER-I/P (FOR M3 ONLY) | |
| 4. | VAME069634 | [1] | BRACKET | |
| 5. | VAMF300002 | [2] | B0LT,W/WSR 10X22 | |
| 6. | VA3156106500 | [1] | JOINT D=10 | |
| 7. | VAMF430729 | [1] | NUT | KOBNUT 16 |
| 7. | VAMF450409 | [1] | WASHER | KOBWASHER,SPG 16 |
| 8. | VAME069611 | [1] | BRACKET,FUEL PIPE (FF:P) | |
| 9. | VAMF300870 | [2] | BOLT | KOBBOLT,W/WSR 12X35 (FOR M0 & M1 ONLY) |
| 9. | VAMF300868 | [2] | BOLT | KOBBOLT,W/WSR 12X30 (FOR M3 ONLY) |
| 10. | VAME067123 | [2] | SPACER L=6 (FOR M0 & M1 ONLY) | |
| 11. | VAME930137 | [2] | STAY | |
| 15. | VAMH021218 | [6] | CLAMP | KOBCLAMP 10-10 |
| 17. | VAMF240033 | [3] | BOLT BOLT,W/WSR 6X35 | BOLT BOLT,W/WSR 6X35 |
| 32. | VAMS616219 | [2] | TUBE TUBE,VINYL 10X2000 (FOR M1 ONLY) | TUBE TUBE,VINYL 10X2000 (FOR M1 ONLY) |
