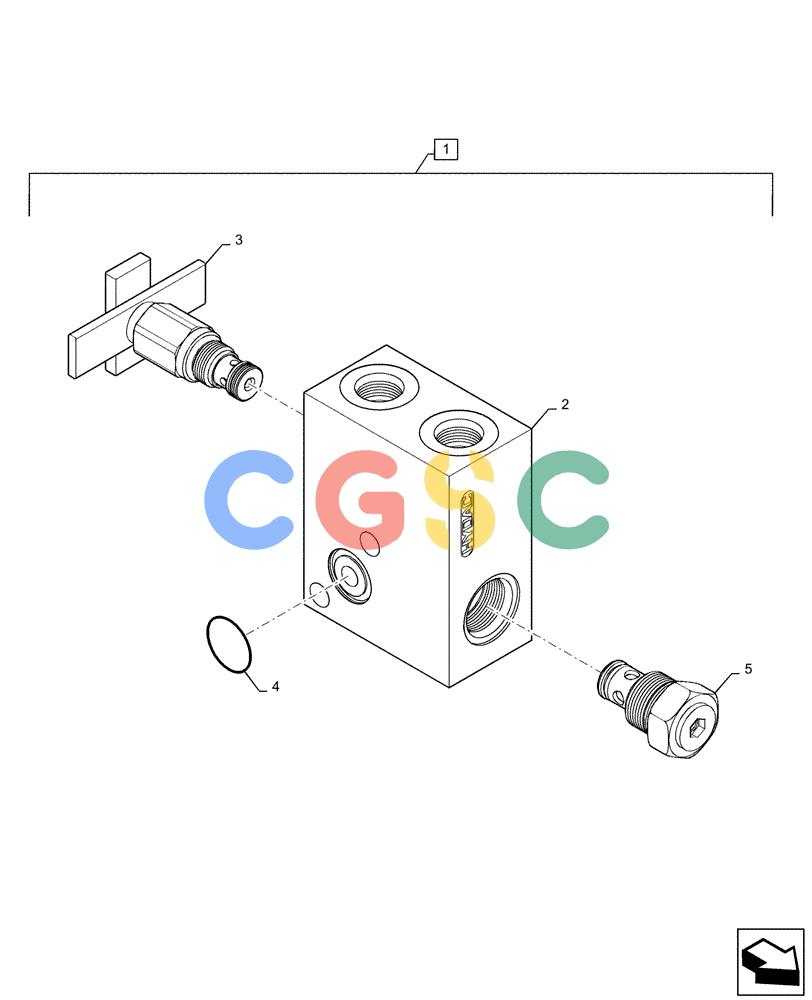

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (35.540.AK[03]) - VAR - 726813 - BALE TENSION, MANIFOLD, 2000 PSI Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
565 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47482891
|
[1] |
HYDRAULIC MANIFOLD
|
NH
Bale Tension, Incl 2 - 5
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Manifold
|
| 3. |
47604141
|
[1] |
VALVE PRESSURE RELIE
|
NH
2000 PSI
|
| 4. |
128359
|
[1] |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
|
MOD
|
| 5. |
84559455
|
[1] |
CHECK VALVE
|
NH
Incl 6
|
| 6. |
377451A1
|
[1] |
SEAL KIT
|
CAS
Superseded by part number: 84556584
|
