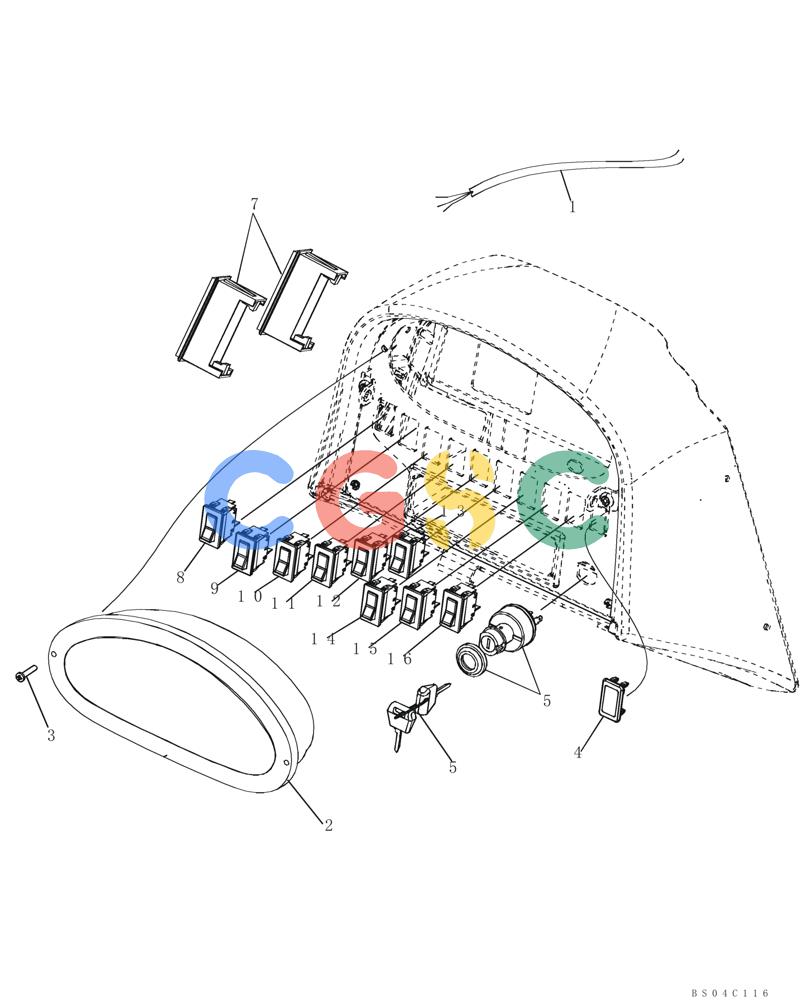

纽荷兰零件查询(D75) - CRAWLER DOZER - NA (1/06-) (04-13) - HARNESS, FRONT CONSOLE AND SWITCHES (SIAC CAB WITH STATIONARY SIDE REAR WINDOW) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
184 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87441567 | [1] | WIRE HARNESS | BURFront Console; Cab Models |
| 2. | 87434892 | [1] | CLUSTER, INSTR. | BURInstrument Cluster, See Figure 04-19 |
| 3. | 87026656 | [2] | SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8 | BUR |
| 4. | 86000535 | [1] | PLUG,1.427" x .62", Plastic | WINSwitch Hole; Models without Cold Start; If Used; Replaces 126844A1 |
| 5. | 87416177 | [1] | IGNITION SWITCH | FARIncludes Keys |
| . . | 86502201 | [1] | IGNITION KEY | WINOn Ring Superseded by part number: 47457834 |
| 7. | 76067216 | [2] | COVER | LECFuse Panel |
| . . | A149796 | [1] | FUSE | CAS3 Amp; Violet; Upper Fuse Box Superseded by part number: 86503942 |
| . . | A149799 | [5] | FUSE | CAS7.5 Amp; Brown; Upper Fuse Box Superseded by part number: 87717079 |
| . . | A149802 | [3] | FUSE | CAS20 Amp; Yellow; Upper Fuse Box Superseded by part number: 9804895 |
| . . | A149798 | [3] | FUSE | CAS5 Amp; Tan; Lower Fuse Box Superseded by part number: 87693742 |
| . . | A149800 | [2] | FUSE | CAS10 Amp; Red; Lower Fuse Box Superseded by part number: 9811773 |
| . . | A149801 | [1] | FUSE | CAS15 Amp; Light Blue; Lower Fuse Box Superseded by part number: 84090658 |
| 9. | 133715A1 | [1] | LIGHT SWITCH | CASRocker; Rear Work Lamps |
| 10. | 87410552 | [1] | WINDSHIELD WIPER SWITCH | BURRocker; Front and Rear Windshield Wipers |
| 11. | 386788A1 | [1] | WINDSHIELD WIPER SWITCH | CASRocker; Front and Rear Windshield Washers |
| 12. | 87410551 | [1] | WINDSHIELD WIPER SWITCH | BURRocker; Left-Hand and Right-Hand Door Window Wipers |
| 13. | 87411310 | [1] | WINDSHIELD WASHER SWITCH | BURRocker; Left-Hand and Right-Hand Door Window Washers |
| 14. | 87410087 | [1] | ROCKER SWITCH | BURRocker; Momentary, Up/Down |
| 15. | 87410091 | [1] | ROCKER SWITCH | BURRocker; Momentary, Display |
| 16. | 386852A2 | [1] | SWITCH | CASRocker; Horn |
