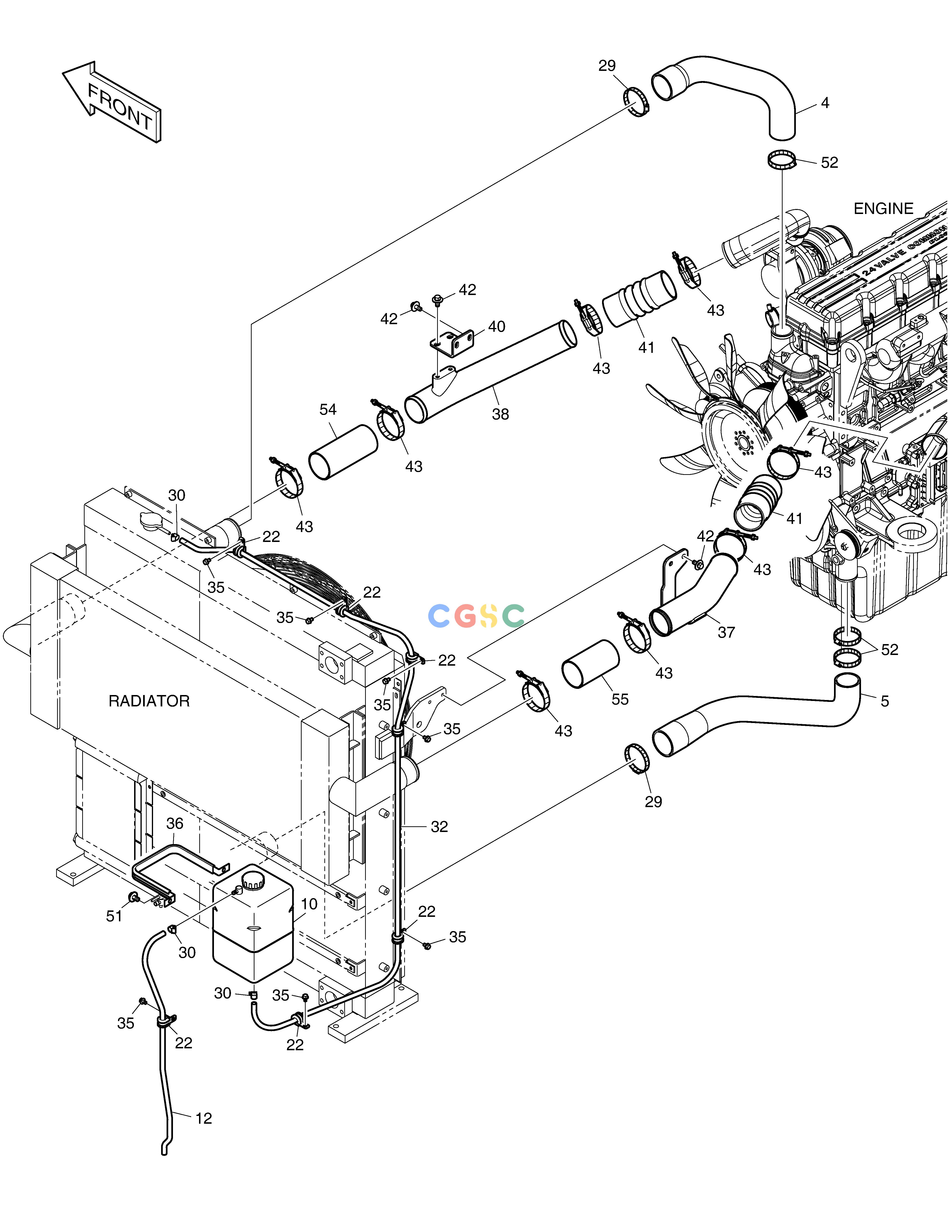

斗山零件查询CAC PIPING DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
431 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00586
|
[-] |
|
|
| -. |
K1004971K
|
[-] |
ENGINE ASS'Y
|
|
| 10. |
K1003354A
|
[1] |
TANK;RESERVE
|
|
| 12. |
K1004515
|
[1] |
HOSE
|
|
| 22. |
124-00208D2
|
[7] |
CLAMP
|
|
| 29. |
S8500092
|
[2] |
CLAMP;HOSE
|
|
| 29. |
S8470085
|
[2] |
CLAMP
|
|
| 30. |
120402-00149
|
[3] |
|
|
| 30. |
DS2809001
|
[3] |
CLIP
|
|
| 30. |
S8450006
|
[3] |
CLAMP
|
|
| 32. |
K1006252
|
[1] |
HOSE;WATER
|
|
| 35. |
K1001029
|
[7] |
BOLT
|
|
| 36. |
K1002851
|
[1] |
CLAMP
|
|
| 37. |
K1046120
|
[1] |
PIPE;AIR
|
|
| 38. |
K1005098
|
[1] |
PIPE;AIR
|
|
| 4. |
K1024918
|
[1] |
HOSE;WATER
|
|
| 40. |
K1006253A
|
[1] |
BRACKET
|
|
| 41. |
K1038559
|
[2] |
HOSE;CAC
|
|
| 42. |
DS0025017
|
[6] |
BOLT
|
|
| 43. |
124-00194
|
[8] |
CLAMP
|
S8500092
|
| 43. |
S8500092
|
[8] |
CLAMP;HOSE
|
|
| 5. |
K1005189B
|
[1] |
HOSE;WATER
|
|
| 51. |
DS0025014
|
[2] |
BOLT
|
|
| 52. |
S8470075
|
[2] |
CLAMP
|
|
| 52. |
S8500079
|
[3] |
CLAMP
|
|
| 54. |
K1046005
|
[1] |
HOSE;AIR
|
|
| 55. |
K1046023
|
[1] |
HOSE;AIR
|
420101-01112
|
| 55. |
420101-01112
|
[1] |
|
|
