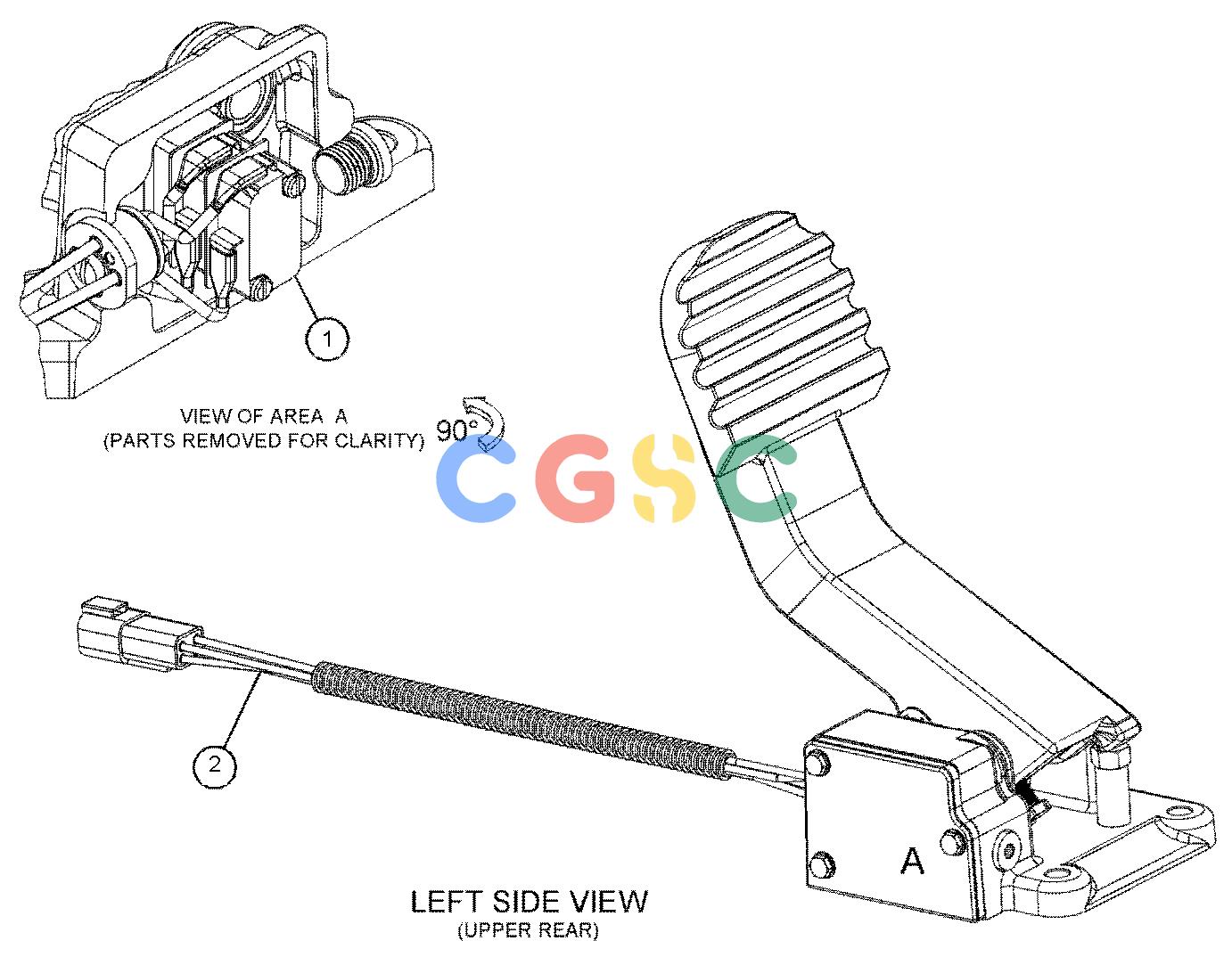

卡特零件查询（725C） 379-1040: PEDAL GP-BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 105-6117 | [2] | SWITCH AS-LIMIT | |
| 2. | 114-9493 | [1] | HARNESS AS-WIRING(LEFT FOOT BRAKE BASE) | |
| | 8C-8514 | [1] | SCREW-MACHINE(8-32X0.375-IN) | |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-2957 | [4] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | | | -OR- |
| | 5P-5602 | [4] | TERMINAL-BLADE(18-GA TO 22-GA) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 357-9364 | [1] | KIT-REPAIR | |
| | | | (INLCUDES SHAFT ASSEMBLY, BEARING ASSEMBLY, O-RINGS, RETAINING RINGS, BEARINGS, SCREW CAP & SEAL) |
