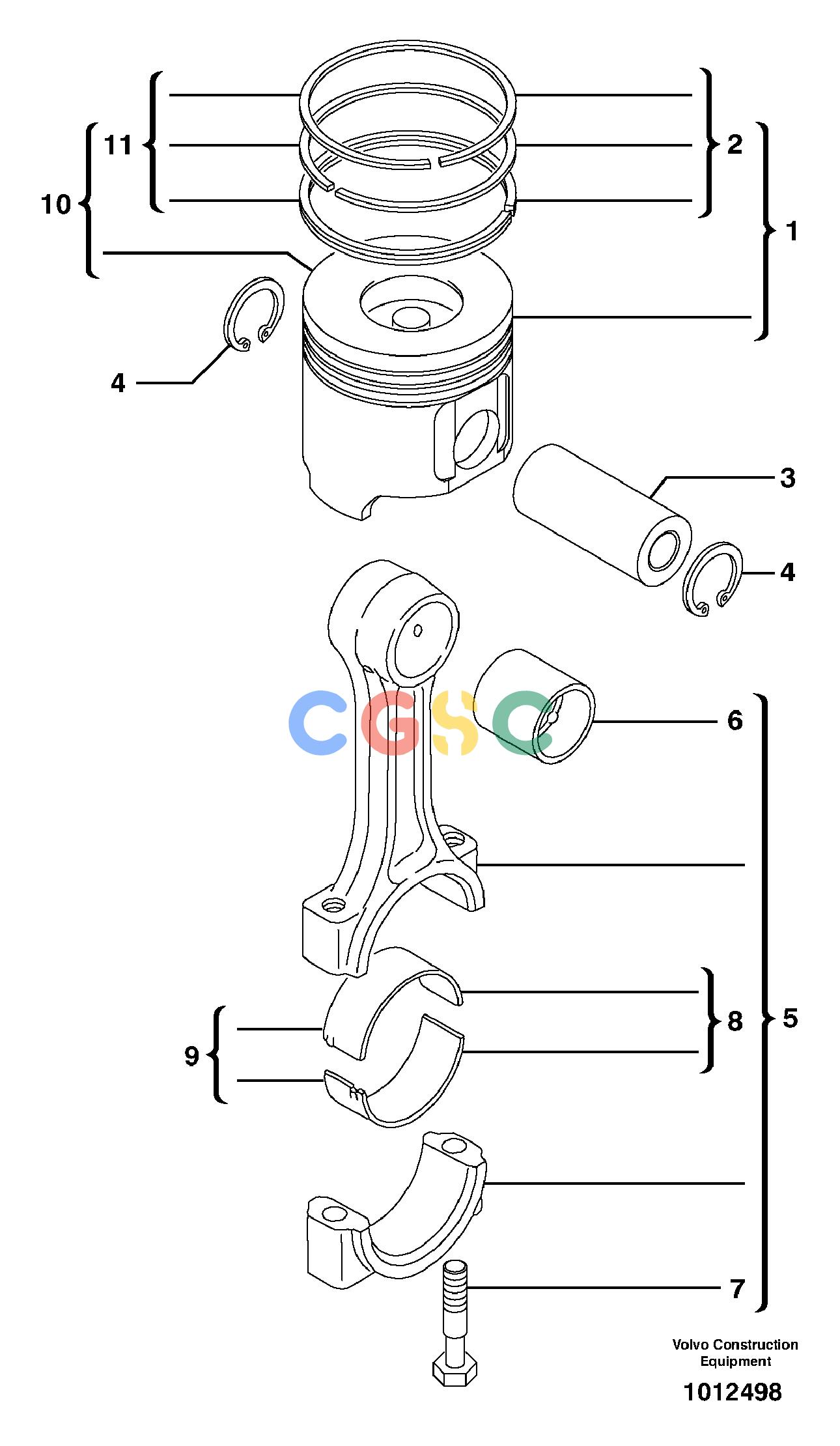

沃尔沃零件查询ECR38 Connecting rod and pistonTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713692
|
[3] |
Piston
|
|
| 2. |
VOE11713693
|
[3] |
Compression ring
|
STD SZ
|
| 3. |
VOE11713694
|
[3] |
Pin
|
|
| 4. |
VOE11713695
|
[6] |
Snap ring
|
|
| 5. |
VOE11713696
|
[3] |
Connecting rod
|
|
| 6. |
|
[3] |
Bushing
|
ORDER ITEM NO 5
|
| 7. |
VOE11713697
|
[6] |
Bolt
|
|
| 8. |
VOE11713698
|
[3] |
Bearing
|
STD SZ
|
| 8. |
|
|
Bearing
|
|
| 9. |
VOE11713699
|
[3] |
Bearing
|
0,25mm/0.0098in
|
| 9. |
|
|
Bearing
|
|
| 10. |
VOE11713700
|
[3] |
Piston
|
0,25mm/0.0098in
|
| 11. |
VOE11713701
|
[3] |
Compression ring
|
0,25mm/0.0098in
|
