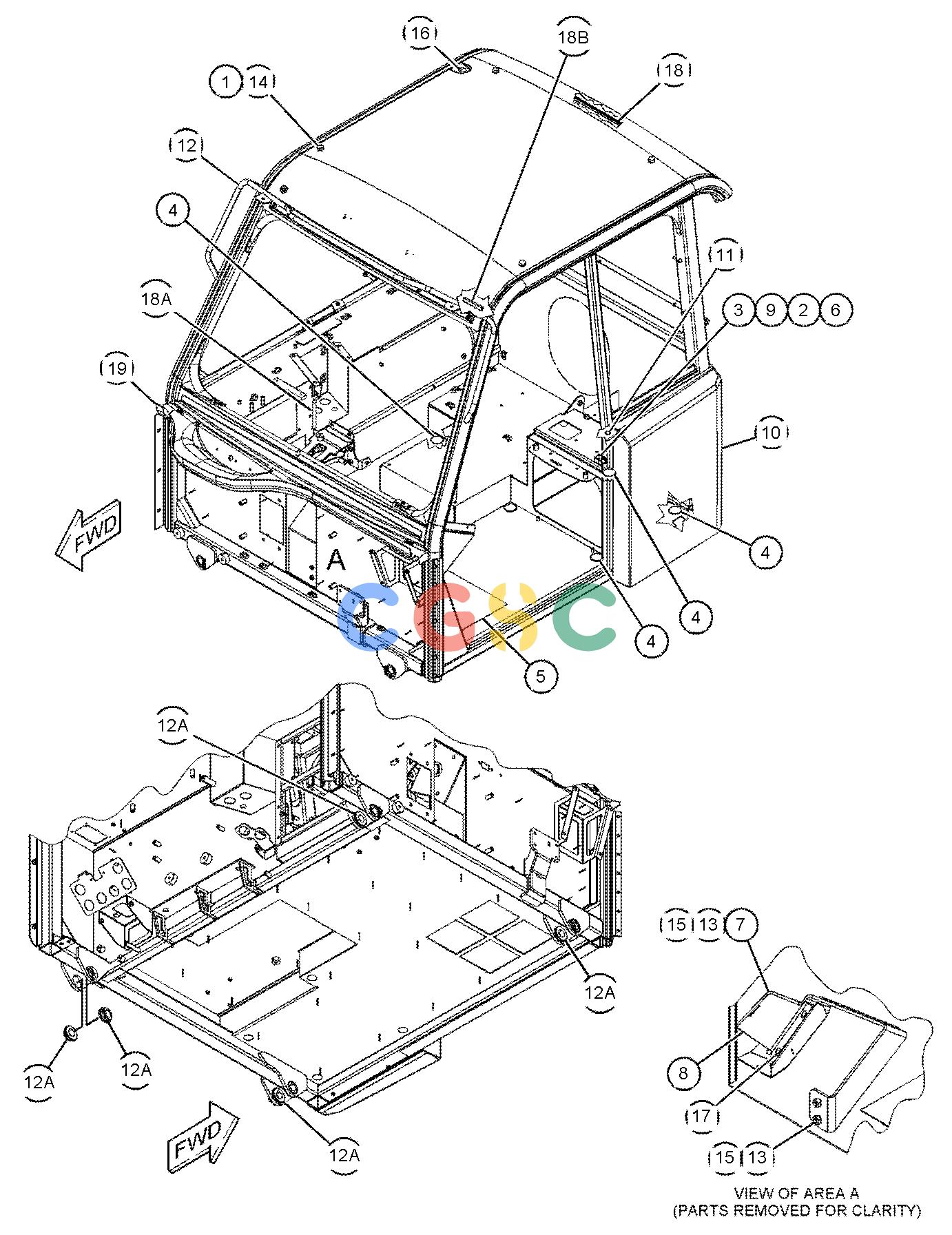

卡特零件查询（725C） 373-3614: ROPS GP
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8N-4409 | [4] | WASHER(16.89X27.05X1.91-MM THK) | |
| 2. | 8T-0318B | [1] | SHIM(0.8-MM THK) | |
| 3. | 8Y-6385 | [1] | SHIELD-STRIKER | |
| 4. | 140-9628 | [5] | PLUG | |
| 5. | 180-1546 | [1] | PLATE-COVER | |
| 6. | 184-0983M | [1] | NUT-HEX FLANGE(M12X1.75-THD) | |
| 7. | 186-0134 | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| 8. | 186-0256 | [1] | PLATE AS-COVER | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| 9. | 192-6437 | [1] | STRIKER AS | |
| 10. | 331-1125 | [1] | PANEL | |
| 11. | 363-7681 | [1] | PLUG | |
| 12. | 380-0500 | [1] | CAB AS-ROPS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| | 126-3075 | [59] | STUD-WELD | |
| 12A. | | [8] | BUSHING |
| 13. | 6V-5217M | [4] | BOLT(M8X1.25X20-MM) | |
| 14. | 7X-2552M | [4] | BOLT(M16X2X30-MM) | |
| 15. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 9R-5615 | [1] | PLUG | |
| 17. | 9X-2044M | [3] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 18. | 3E-6600E | | SEAL(126-CM) | |
| 18A. | 3E-6600E | | SEAL(20-CM) | |
| 18B. | 3E-6600E | | SEAL(10-CM) | |
| 19. | 136-7728N | | SEAL(16-DM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | N | | ORDER BY THE DECIMETER |
