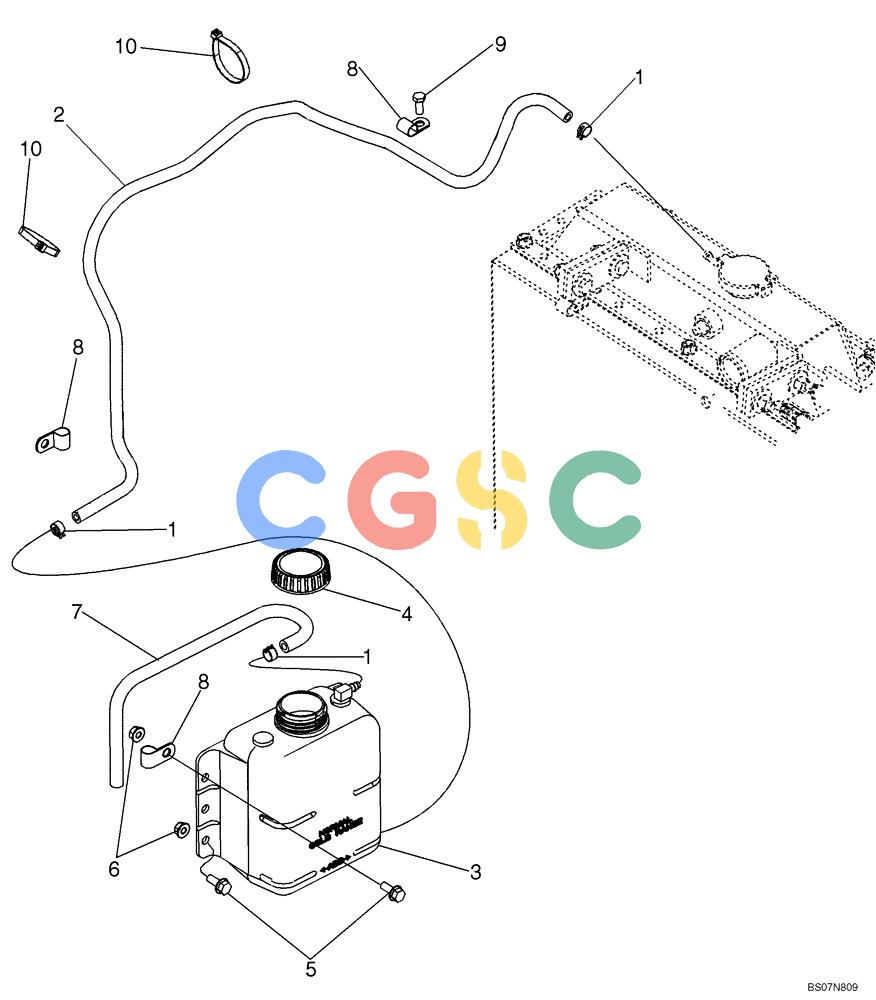

纽荷兰零件查询(D85B) - CRAWLER DOZER TIER 3 (3/08-) (02-05) - COOLANT RECOVERY SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
527 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | A171099 | [3] | HOSE CLAMP,13.2mm - 15.4mm | CAS |
| 2. | 87611674 | [1] | PLASTIC-RUBBER TUBE,7.9 mm ID x 1285 mm L | BURHOSE, 1285mm (50 5/8 in); Cut from L126767; Radiator to Coolant Reservoir |
| 3. | L127093 | [1] | RESERVOIR | CAS |
| 4. | A184079 | [1] | CAP | CASNon-Vented With Tether Superseded by part number: 440729A1 |
| 5. | 905-8020 | [4] | BOLT,Hex Flg, M8 x 20mm | CAS Superseded by part number: 86511479 |
| 6. | 832-4748 | [4] | FLANGE NUT,M8 x 1.25, Flg, Cl 8 | CAS Superseded by part number: 86050303 |
| 7. | 433784A1 | [1] | HOSE,7.90 mm ID x 445.00 mm, SAE J30 or SAE 20R4 Class D1 | BURCut From L126767, Overflow |
| 8. | 515-23143 | [3] | CLAMP,9/16", Insul, 3/8" Bolt | CAS Superseded by part number: 72187280, 257492 |
| 9. | 614-8020 | [1] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| 10. | 87406613 | [2] | CABLE TIE | BURReleasable; If Used Superseded by part number: 529070 |
