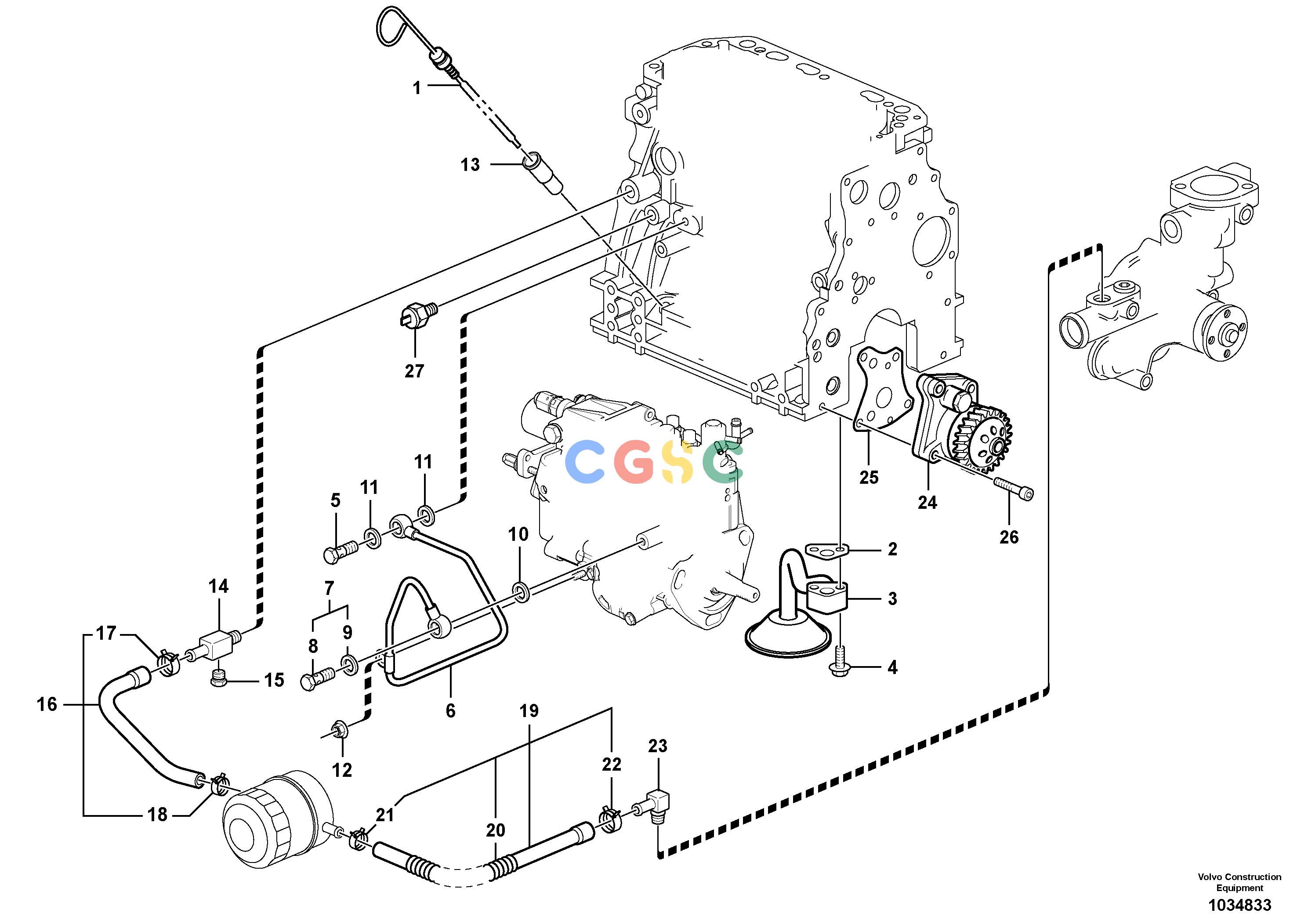

沃尔沃零件查询ECR38 Lubricating oil systemTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11715317
|
[1] |
Dipstick
|
|
| 1. |
VOE11715317
|
|
Dipstick
|
|
| 2. |
VOE11713704
|
[1] |
Gasket
|
|
| 3. |
VOE11713705
|
[1] |
Oil strainer
|
|
| 4. |
VOE11714281
|
[2] |
Flange screw
|
|
| 5. |
VOE11713706
|
[1] |
Bolt
|
|
| 6. |
VOE11713707
|
[1] |
Pipe
|
|
| 7. |
VOE14521571
|
[1] |
Bolt
|
|
| 8. |
SA8210-05600
|
[1] |
Bolt
|
|
| 9. |
VOE11714476
|
[1] |
Sealing washer
|
|
| 10. |
VOE11714476
|
[1] |
Sealing washer
|
|
| 11. |
VOE11713708
|
[2] |
Seal
|
|
| 12. |
VOE11713709
|
[1] |
Nut
|
|
| 13. |
VOE11715318
|
[1] |
Dipstick tube
|
|
| 14. |
VOE11713713
|
[1] |
Manifold
|
|
| 15. |
SA8210-05340
|
[1] |
Plug
|
|
| 15. |
VOE11714474
|
|
Plug
|
|
| 16. |
VOE11713714
|
[1] |
Hose
|
|
| 17. |
VOE11713715
|
[1] |
Clamp
|
|
| 18. |
VOE11713716
|
[1] |
Clamp
|
|
| 19. |
VOE11713717
|
[1] |
Hose
|
|
| 20. |
VOE11713721
|
[1] |
Protecting hose
|
|
| 21. |
VOE11713716
|
[1] |
Clamp
|
|
| 22. |
VOE11713715
|
[1] |
Clamp
|
|
| 23. |
VOE11713722
|
[1] |
Elbow
|
|
| 24. |
|
|
Oil Pump
|
|
| 25. |
VOE15079350
|
|
Gasket
|
|
| 26. |
VOE15079623
|
|
Bolt
|
|
| 27. |
VOE15066081
|
|
Oil pressure sensor
|
|
