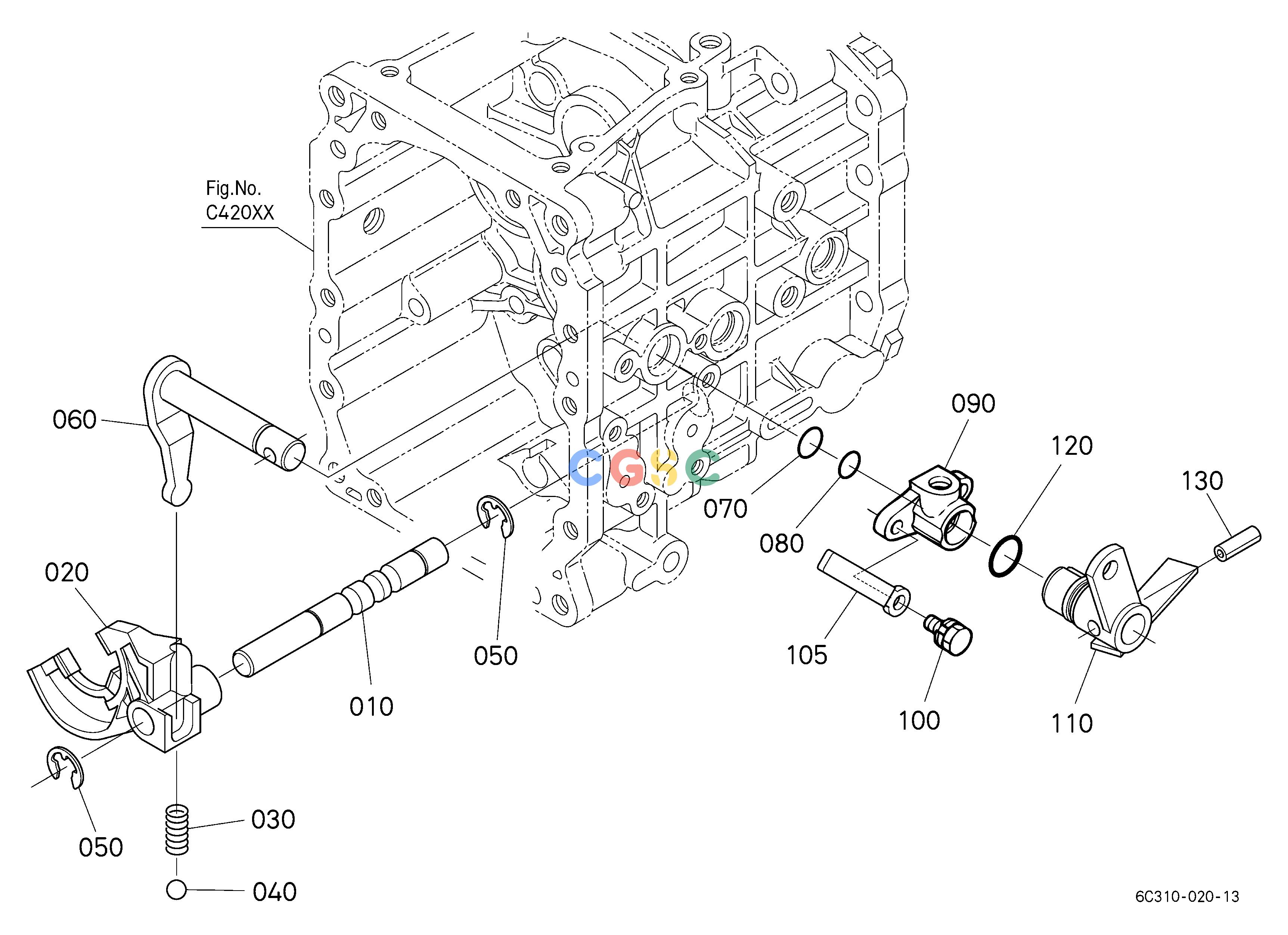

久保田零件查询D22000 PTO GEAR SHIFT FORK SPEED CHANGEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
534 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C31018610
|
[1] |
ROD,FORK
|
0.3190(lbs); 0.145
|
| 020. |
6C09018623
|
[1] |
FORK,PTO SHIFT
|
0.1980(lbs); 0.090
|
| 030. |
6206118260
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 040. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
0461350120
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
6C08018710
|
[1] |
ARM,PTO SHIFT
|
0.4180(lbs); 0.190
|
| 070. |
0481600160
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 080. |
0481110140
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 090. |
6A32042732
|
[1] |
HOLDER,PTO ARM
|
0.1188(lbs); 0.054
|
| 100. |
0112350825
|
[2] |
BOLT,SEMS
|
0.0286(lbs); 0.013
|
| 105. |
1382467580
|
[1] |
CLANP,CORD
|
0.0132(lbs); 0.006
|
| 110. |
6C30018730
|
[1] |
LEVER,SHIFT ARM
|
0.3300(lbs); 0.150
|
| 120. |
0481110220
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 130. |
0541100832
|
[1] |
PIN,SPRING
|
0.0770(lbs); 0.035
|
