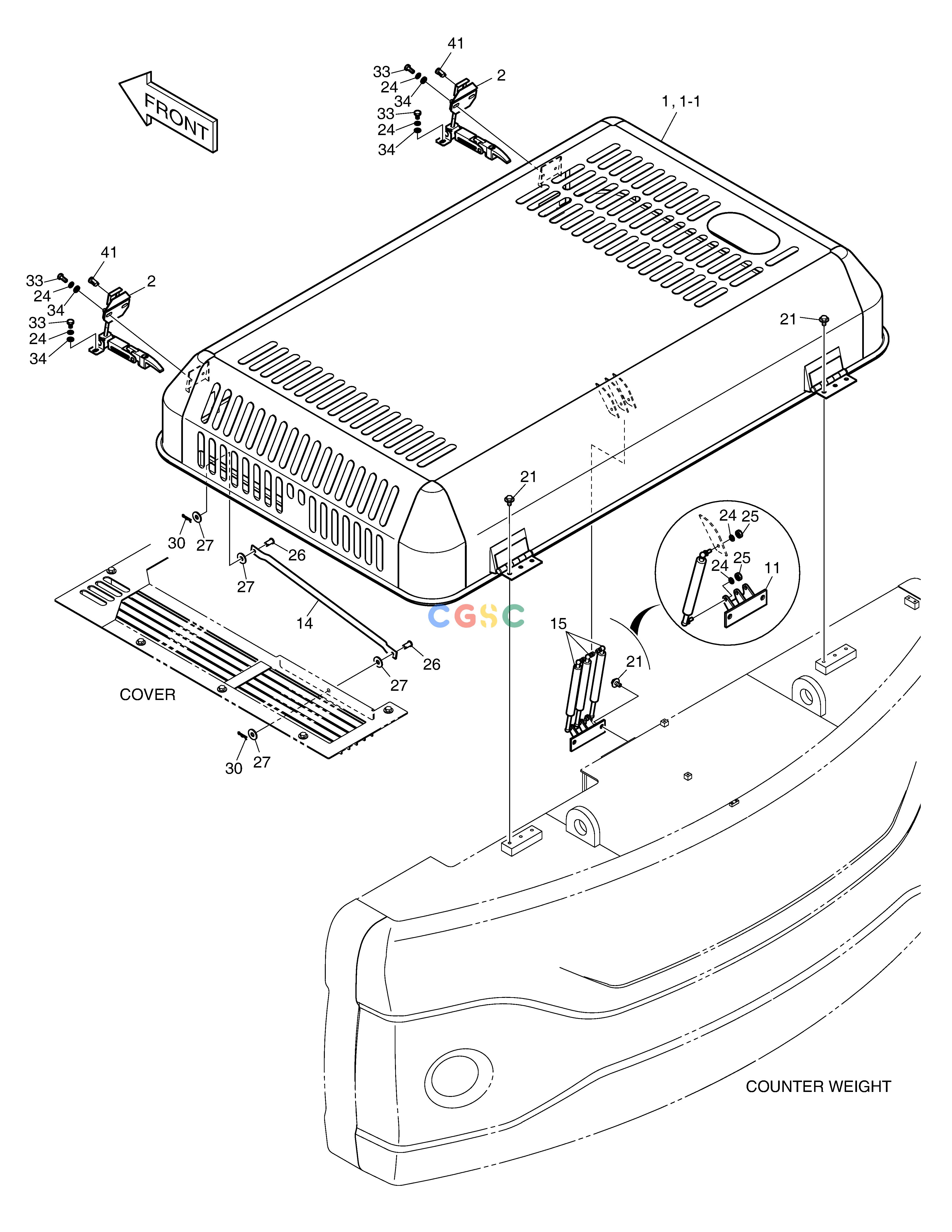

斗山零件查询ENGINE COVER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005229J
|
[-] |
COVER ASS'Y
|
|
| 1. |
K1005353B
|
[1] |
BONNET
|
110501-00063
|
| 1. |
110501-00063
|
[1] |
|
|
| 1-1. |
2160-1023
|
[8] |
. TRIM;RUBBER
|
|
| 11. |
K1002078
|
[1] |
BRACKET
|
|
| 14. |
145-00069
|
[1] |
STAY
|
|
| 15. |
DS1001072
|
[3] |
SPRING;GAS
|
DS1001059
|
| 15. |
DS1001059
|
[3] |
SPRING;GAS
|
|
| 2. |
125-00075A
|
[2] |
CATCH
|
|
| 21. |
DS0025015
|
[8] |
BOLT
|
|
| 24. |
S5102503
|
[14] |
. WASHER
|
|
| 25. |
S4012533
|
[6] |
NUT
|
|
| 26. |
2123-1057D47
|
[2] |
PIN
|
|
| 27. |
2114-1154
|
[4] |
WASHER
|
|
| 30. |
2705-9002
|
[2] |
PIN
|
|
| 33. |
S0508866
|
[8] |
BOLT
|
|
| 34. |
S5010513
|
[8] |
WASHER
|
|
| 41. |
K1004529
|
[2] |
CYLINDER;KEY
|
|
