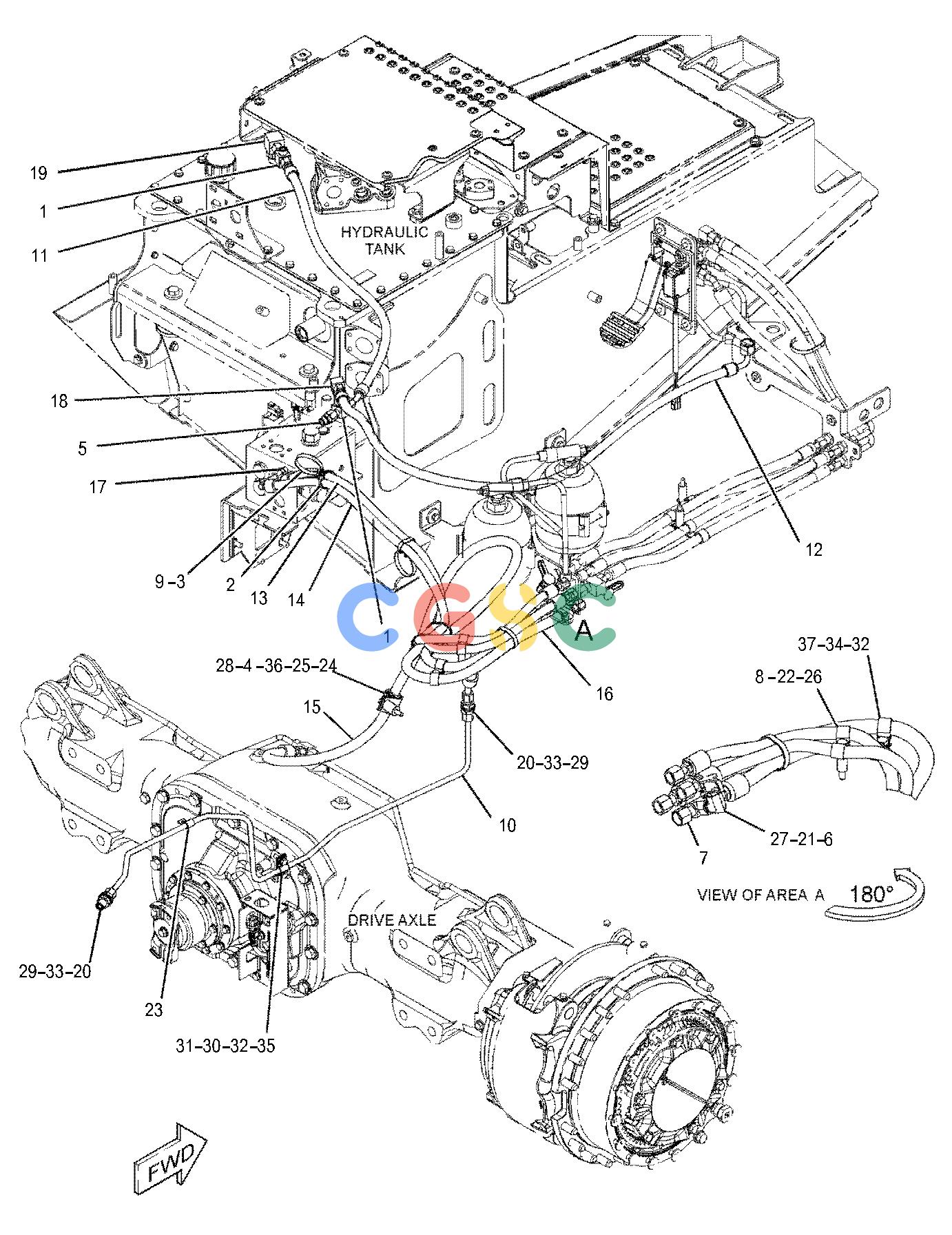

卡特零件查询（725C） 497-7215: LINES GP-SERVICE BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8444 | [2] | TEE AS-SWIVEL | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 2. | 6U-0455 | [2] | STRAP | |
| 3. | 6U-0456 | [6] | STRAP | |
| 4. | 125-7484 | [1] | SPACER(11X25X36-MM THK) | |
| 5. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 6. | 150-3065 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 7. | 164-5586 | [1] | TEE AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7X-0871 | [1] | TEE | |
| 8. | 260-6673M | [1] | BOLT(M10X1.5X65-MM) | |
| 9. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 10. | 444-6789 | [1] | TUBE AS | |
| 11. | 446-6576I | [1] | HOSE AS | |
| 12. | 446-6577I | [1] | HOSE AS | |
| 13. | 496-4806I | [1] | HOSE AS | |
| 14. | 496-4808I | [1] | HOSE AS | |
| 15. | 496-4810I | [1] | HOSE AS | |
| 16. | 496-4811I | [1] | HOSE AS | |
| 17. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 18. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 19. | 148-8381 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-5429 | [1] | ELBOW | |
| 20. | 148-8457 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 21. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 22. | 302-6550 | [1] | SPACER(11X16X40-MM THK) | |
| 23. | 3U-2752 | [1] | CLIP(LOOP) | |
| 24. | 5P-7464 | [1] | CLIP(SLOT) | |
| 25. | 5P-7465 | [1] | CLIP(TAB) | |
| 26. | 6D-4246 | [2] | CLIP(LOOP) | |
| 27. | 6V-0852 | [1] | CAP-DUST | |
| 28. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 29. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 30. | 8T-1885 | [1] | CLIP(SLOT) | |
| 31. | 8T-1886 | [1] | CLIP(TAB) | |
| 32. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 34. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 35. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 36. | 8T-5005M | [1] | BOLT(M10X1.5X70-MM) | |
| 37. | 9X-8250 | [2] | CLIP | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
