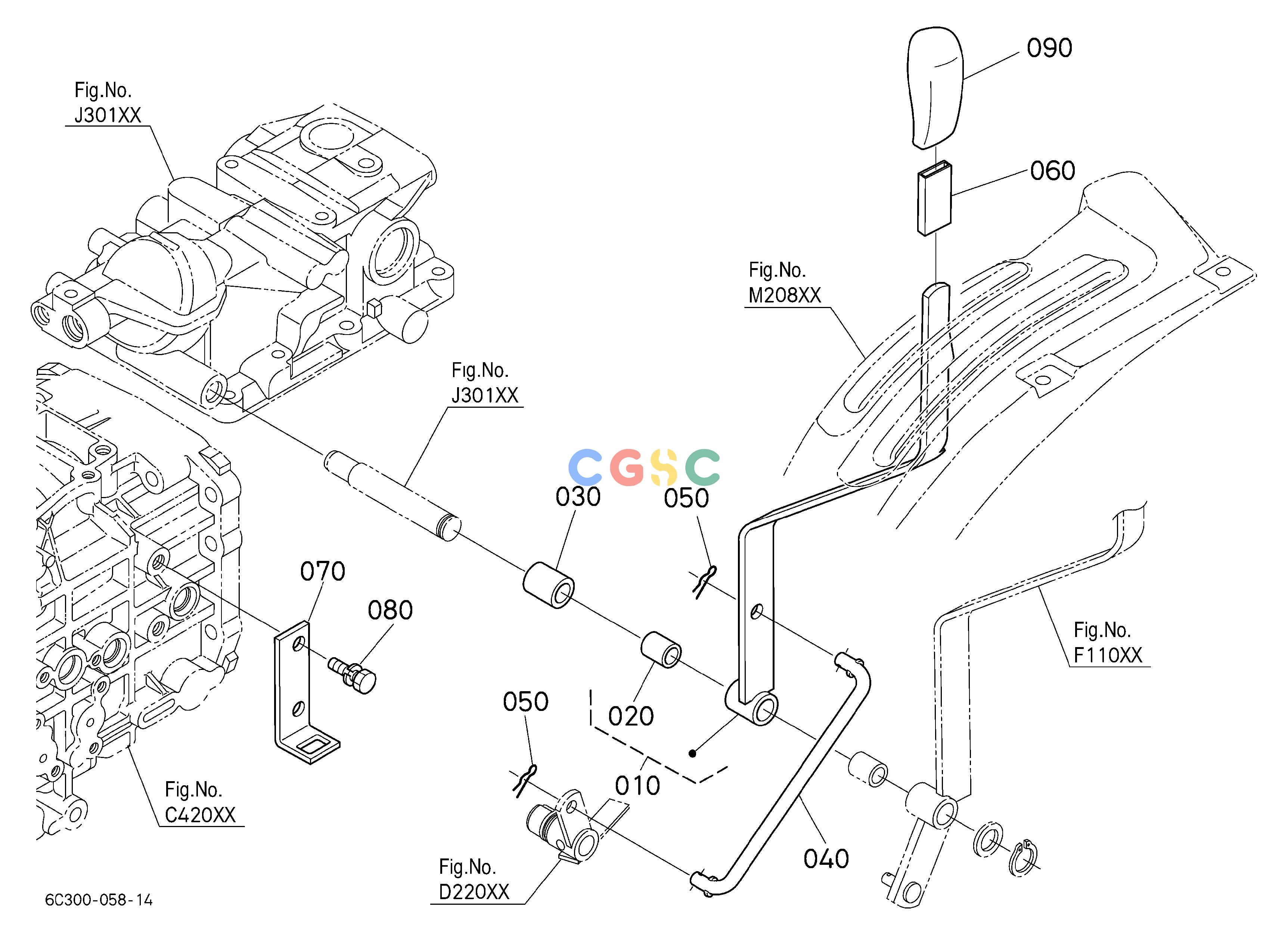

久保田零件查询F12500 PTO GEAR SHIFT LEVER SPEED CHANGEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
197 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30018700
|
[1] |
ASSY LEVER,PTO
|
1.4520(lbs); 0.660
|
| 020. |
0851101825
|
[1] |
BUSH
|
0.0220(lbs); 0.010
|
| 030. |
6C12042750
|
[1] |
COLLAR
|
0.1210(lbs); 0.055
|
| 040. |
6C30018752
|
[1] |
ROD,PTO
|
0.4290(lbs); 0.195
|
| 040. |
6C30018753
|
[1] |
ROD,PTO
|
0.4290(lbs); 0.195
|
| 050. |
0552551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 060. |
6A60038250
|
[1] |
CUSHION(POSITION MA)
|
0.0110(lbs); 0.005
|
| 060. |
6A90038250
|
[1] |
CUSHION(POSITION MA)
|
0.0066(lbs); 0.003
|
| 070. |
6C30018770
|
[1] |
STAY,NEUTRAL SWITCH
|
0.1870(lbs); 0.085
|
| 080. |
0112351020
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 090. |
6C20018790
|
[1] |
GRIP,YELLOW 63
|
0.0880(lbs); 0.040
|
