沃尔沃零件查询D13C1-A MP D13C2-A MP D13C3-A MP D13C4-A MP D13C6-A MPElectrical SystemCables, Transmission, IPS, EVC-E2EPC Volvo Penta Parts catalog_沃尔沃遍达Volvo Penta_工程机械

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPElectrical SystemCables, Transmission, IPS, EVC-E2EPC Volvo Penta Parts catalog

广数供应链运营团队, 14 02月, 2025，浏览： 369 次

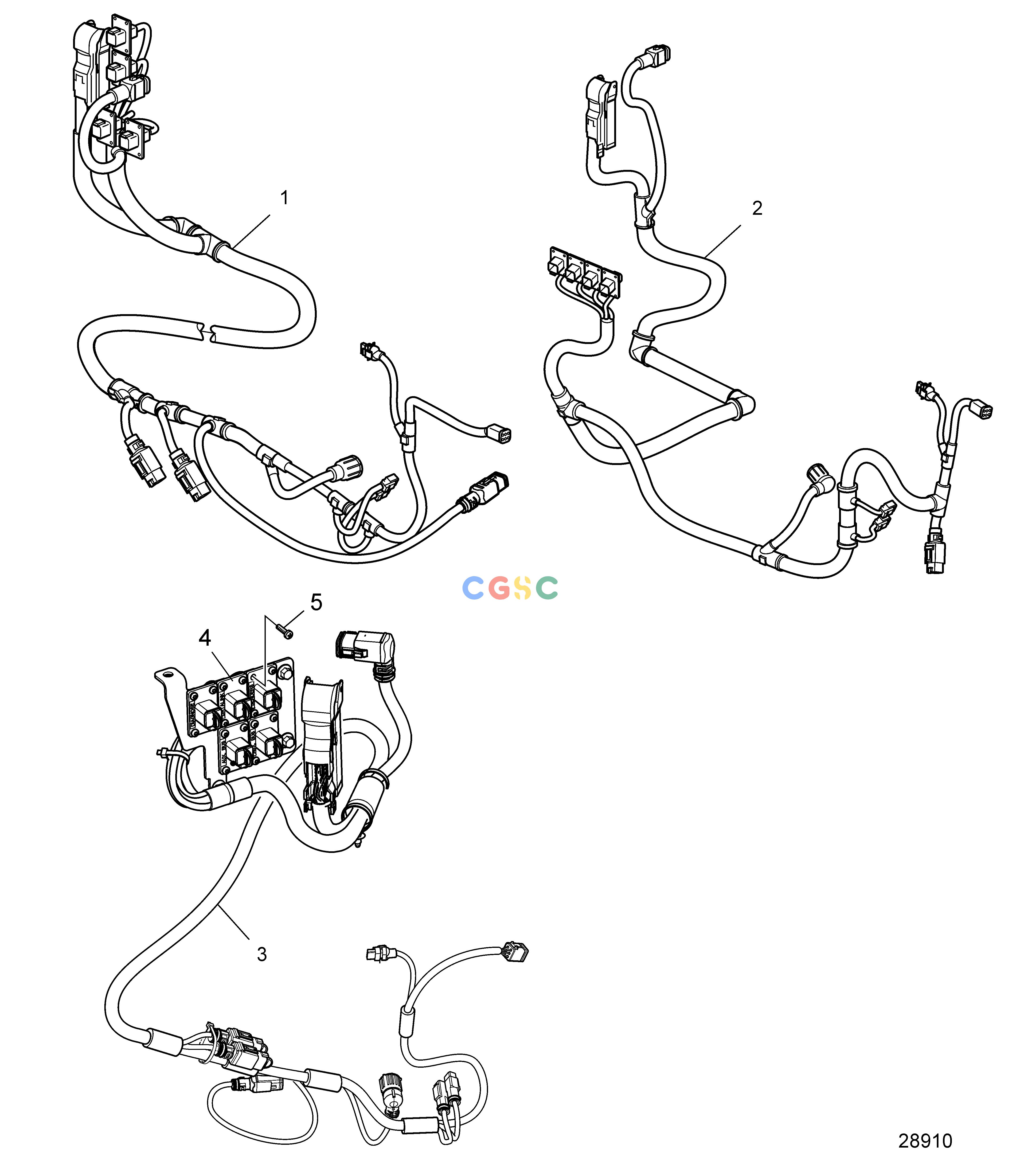

Pos.	Part No	Qty	Parts name	Comments
1.	22023238	[1]	Wiring harness	Transmission cable, IPS, D13-IPS 1050–1200, 1,3m
1.	22023239	[1]	Wiring harness	Transmission cable, IPS, D13-IPS 1050–1200, 1,7m
1.	22023240	[1]	Wiring harness	Transmission cable, IPS, D13-IPS 1050–1200, 2,2m
1.	22023241	[1]	Wiring harness	Transmission cable, IPS, D13-IPS 1050–1200, 2,6m
1.	22023242	[1]	Wiring harness	Transmission cable, IPS, D13-IPS 1050–1200, 3,1m
1.	22023243	[1]	Wiring harness	Transmission cable, IPS, D13-IPS 1050–1200, 3,5m
1.	22023244	[1]	Wiring harness	Transmission cable, IPS, D13-IPS 1050–1200, 5,5m
2.	22390849	[1]	Wiring harness	Transmission cable, IPS, D4/D6-IPS350–IPS600, 0,5m
2.	22390850	[1]	Wiring harness	Transmission cable, IPS, D4/D6-IPS350–IPS600, 2,5m
3.	22732912	[1]	Wiring harness	Transmission cable, IPS, D8-IPS 700–800, 1,5m
3.	22732913	[1]	Wiring harness	Transmission cable, IPS, D8-IPS 700–800, 3,5m
3.	22732914	[1]	Wiring harness	Transmission cable, IPS, D8-IPS 700–800, 5,5m
4.	22478734	[1]	Bracket
5.	972399	[20]	Six point socket scr
