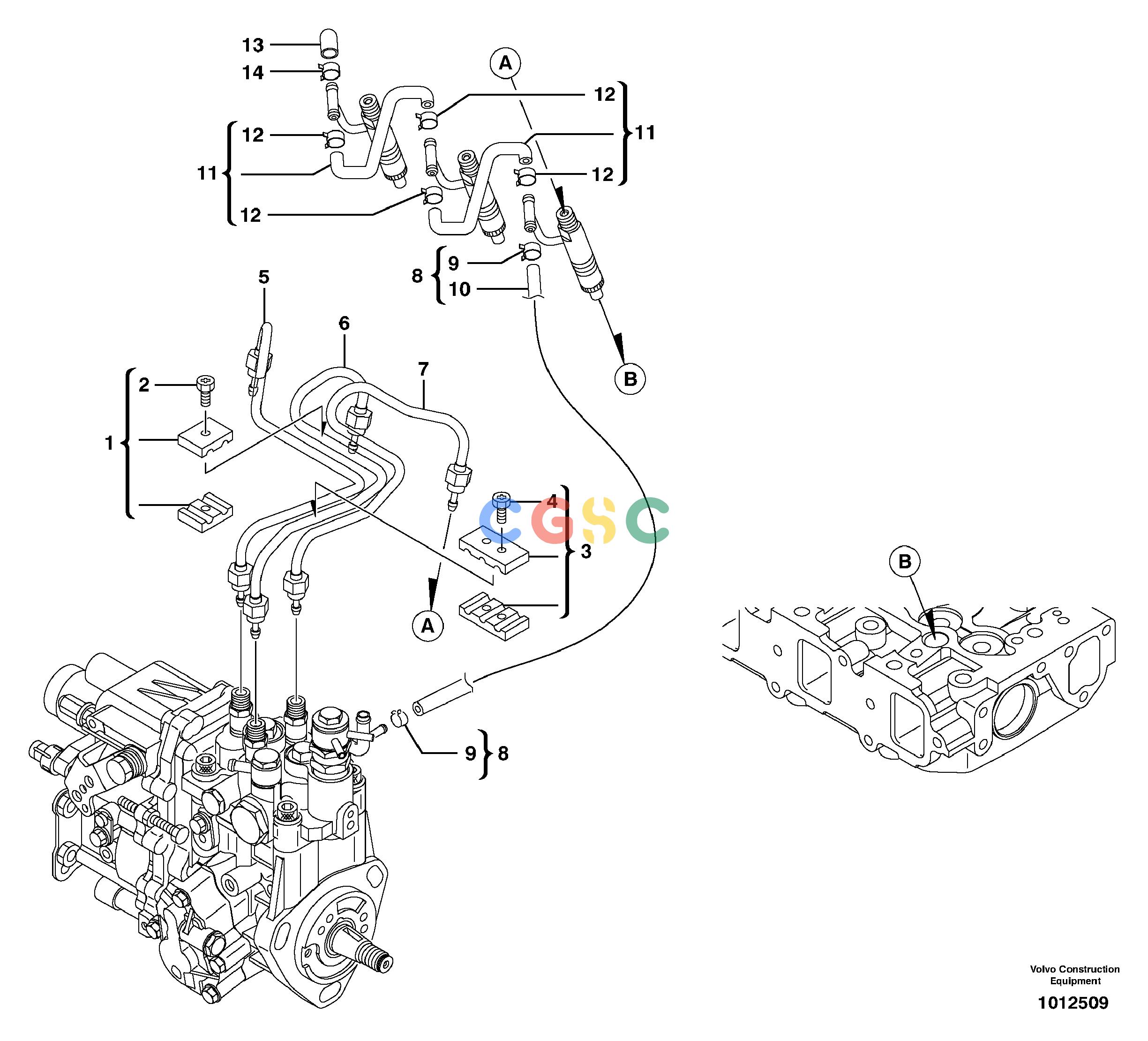

沃尔沃零件查询ECR38 Fuel pipes-injectorTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
669 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714505
|
[1] |
Retainer
|
|
| 2. |
VOE11714506
|
[1] |
Bolt
|
|
| 3. |
VOE11713464
|
[1] |
Retainer
|
|
| 4. |
VOE11714506
|
[2] |
Bolt
|
|
| 5. |
VOE11713757
|
[1] |
Pipe
|
|
| 5. |
VOE15080391
|
|
Pipe
|
|
| 6. |
VOE11713758
|
[1] |
Pipe
|
|
| 6. |
VOE15080392
|
|
Pipe
|
|
| 7. |
VOE11713759
|
[1] |
Pipe
|
|
| 7. |
VOE15080394
|
|
Pipe
|
|
| 8. |
VOE11713760
|
[1] |
Hose
|
|
| 9. |
VOE14521580
|
[2] |
Clamp
|
|
| 10. |
VOE11713761
|
[1] |
Hose
|
|
| 11. |
VOE14521178
|
[2] |
Pipe
|
|
| 11. |
VOE11714642
|
|
Fuel hose
|
|
| 12. |
VOE14521580
|
[4] |
Clamp
|
|
| 13. |
VOE11713762
|
[1] |
Cap
|
|
| 13. |
VOE15079992
|
|
Cap
|
|
| 14. |
VOE11713763
|
[1] |
Clamp
|
|
| 14. |
VOE11714639
|
|
Clamp
|
|
