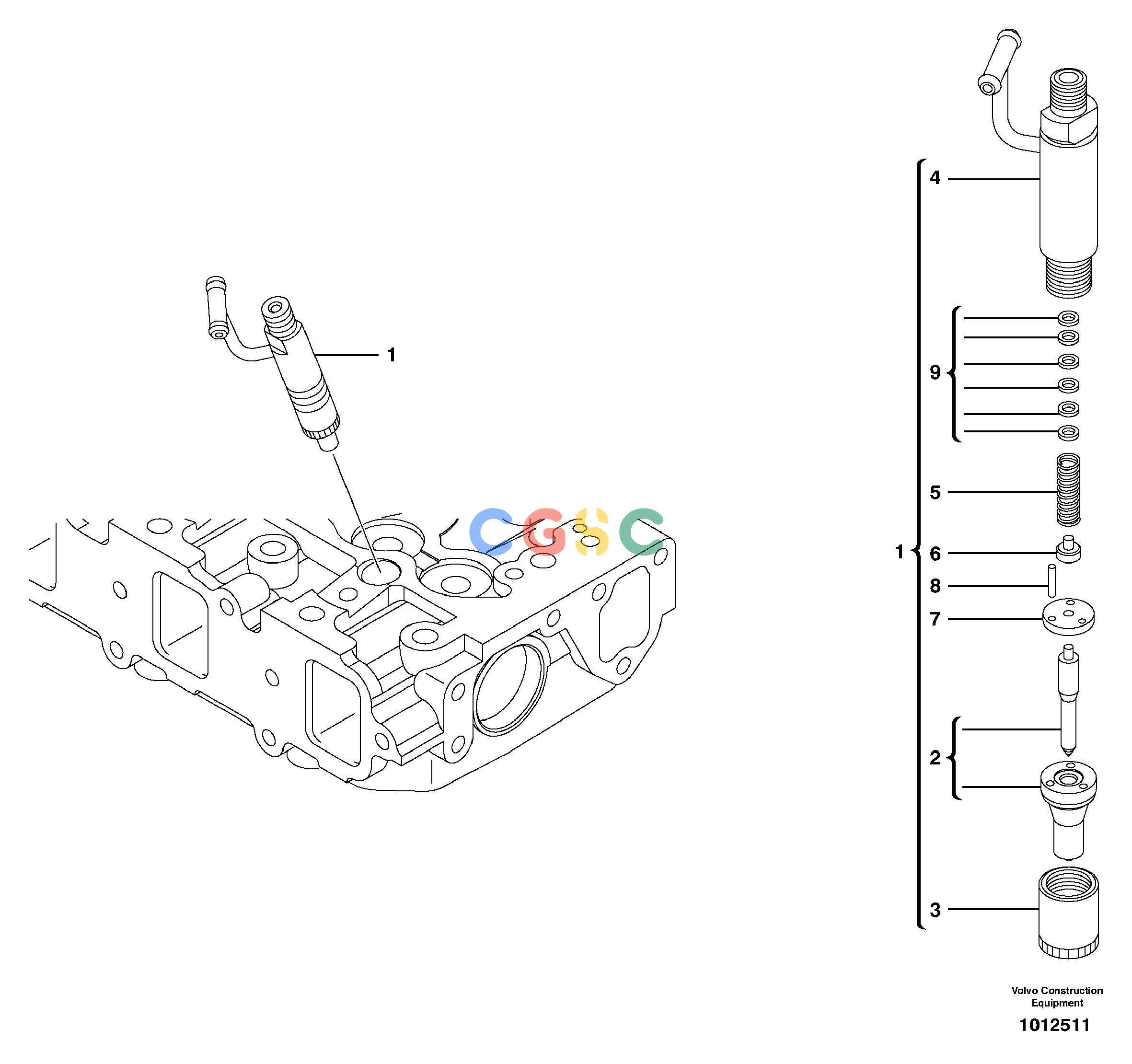

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE11713754 | [3] | Fuel nozzle | |
| 1. | VOE15079978 | Injector | ||
| 2. | VOE11713755 | [3] | Nozzle | |
| 2. | VOE15079979 | Nozzle | ||
| 3. | SA8210-00380 | [3] | Nut | |
| 4. | VOE11713756 | [3] | Nozzle retainer | |
| 5. | SA8210-00390 | [3] | Spring | |
| 6. | SA8210-00400 | [3] | Spring | |
| 7. | SA8210-00410 | [3] | Plate | |
| 8. | SA8210-00420 | [6] | Pin | |
| 9. | SA8210-00430 | [3] | Shim | |
| 9. | VOE15079990 | Shim kit |
