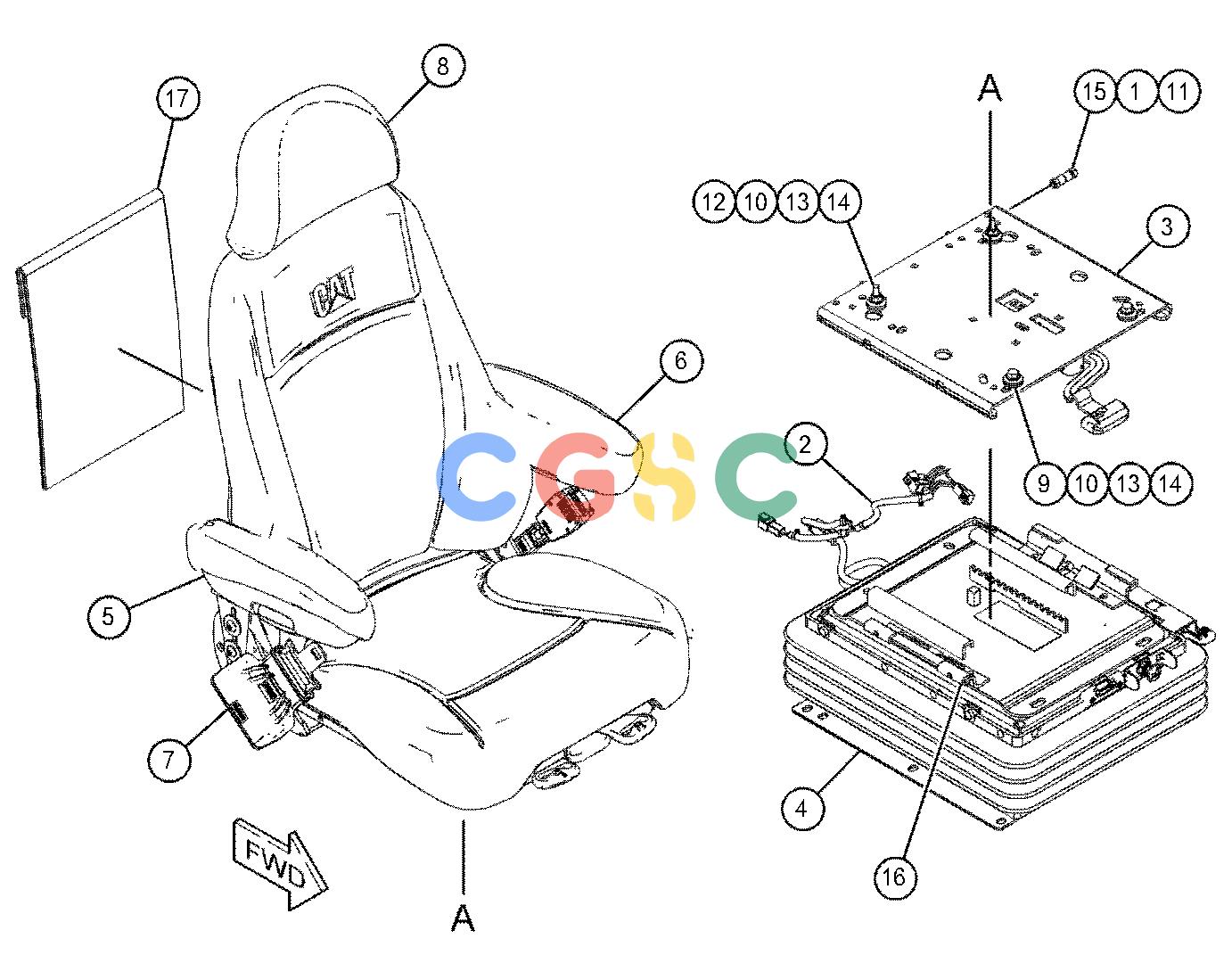

卡特零件查询（725C） 421-1231: SEAT GP-SUSPENSION
广数供应链运营团队, 14 02月, 2025，浏览：
821 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-1705 | [2] | SPACER | |
| 2. | 241-5786 | [2] | HARNESS AS-HEATER(SEAT) | |
| 3. | 347-8750Y | [1] | ADJUSTER GP-SEAT | |
| 4. | 347-8771Y | [1] | SUSPENSION GP-SEAT(AIR, HEATED) | |
| 5. | 348-3688Y | [1] | ARMREST GP(RH) | |
| 6. | 349-4002Y | [6] | ARMREST GP(LH) | |
| 7. | 390-9306 | [1] | SEAT BELT GP(RETRACTABLE, 3-IN) | |
| 8. | 443-8294Y | [1] | SEAT GP-SUSPENSION | |
| 9. | 0S-1588 | [2] | BOLT(3/8-16X1.25-IN) | |
| 10. | 195-7055 | [8] | WASHER-HARD(9.9X28.5X3.2-MM THK) | |
| 11. | 1A-9579 | [1] | BOLT(5/16-18X1.5-IN) | |
| 12. | 1D-4672 | [2] | BOLT-CARRIAGE(1/2-13X5.5-IN) | |
| 13. | 2K-4973 | [4] | LOCKNUT(3/8-16-THD) | |
| 14. | 4B-4278 | [6] | WASHER(10.2X20.5X1.6-MM THK) | |
| 15. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 16. | 173-7035 | [1] | KIT-SLIDER BLOCK(SUSPENSION SEAT) | |
| 17. | 385-5501 | [1] | KIT-LITERATURE HOLDER | |
| | Y | | SEPARATE ILLUSTRATION |
