纽荷兰零件查询(D85B) - CRAWLER DOZER TIER 3 (3/08-) (08-13A) - CYLINDER ASSY - ANGLE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
662 次

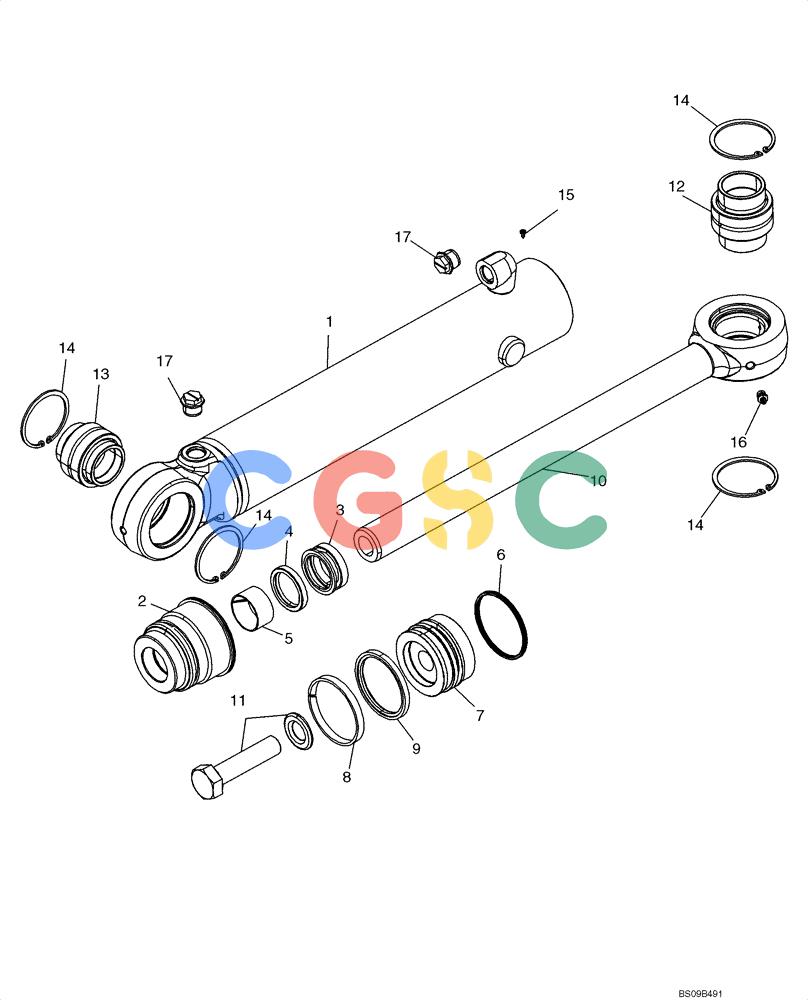

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 84135898 | [2] | HYDRAULIC CYLINDER | BUR89 ID x 396 mm Stroke; Angle; Incl. Ref 1 - 17 Superseded by part number: 84135900 |
| . . | 84135900R | [2] | REMAN-HYD CYLINDER | BURReman for new P/N 84135898 |
| . . | 84135900C | [2] | CORE-HYD CYLINDER | BURReturn Number |
| 1. | 87610732 | [1] | TUBE,88.67mm Bore Dia | BUR |
| 2. | 87610735 | [1] | GLAND | BURGland Packing |
| 3. | D95143 | [1] | WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk | CAS |
| 4. | 1542875C1 | [1] | SEAL KIT | IHRod & Buffer Seal |
| 5. | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk | CASRod |
| 6. | 84130482 | [1] | SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk | BURSeal, Static Head |
| 7. | 1986982C1 | [1] | PISTON | IH |
| 8. | G100711 | [1] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk | CAS |
| 9. | 190332A1 | [1] | SEAL,74.5mm ID x 88.77mm OD x 7.16mm Thk | CASPiston |
| 10. | 84135902 | [1] | PISTON ROD | BUR |
| 11. | 86982439 | [1] | SPECIAL BOLT | BURIncludes Washer |
| 12. | 407538A1 | [1] | SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W | CAS |
| 13. | 407539A1 | [1] | SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W | CAS |
| 14. | 103-21281 | [4] | SNAP RING,66.92mm ID x 2.36mm W, Int | CASInt. 281 |
| 15. | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | CAS Superseded by part number: 86642312 |
| 16. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 17. | 353-780 | [2] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CASW/ O-Ring Superseded by part number: 86625121 |
| . . | 84157290 | [1] | SEAL KIT | BURKIT, Seal Repair, Incl. Ref 3 - 6, 8, 9 |
