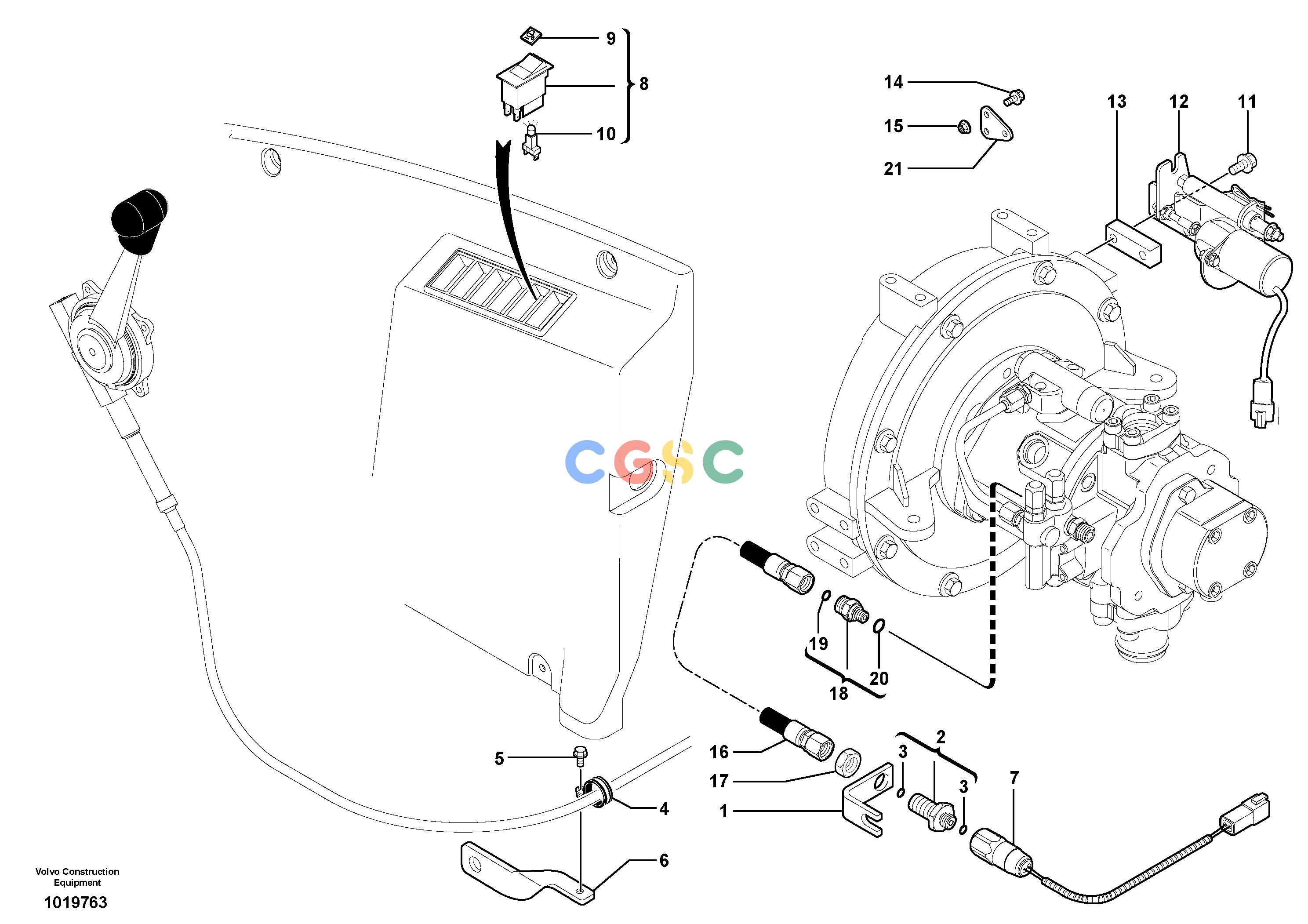

沃尔沃零件查询ECR38 Automatic Speed controlTYPE 602602.10525 602.11342-602.11343NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
441 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11803532
|
[1] |
Support
|
|
| 2. |
VOE935425
|
[1] |
Nipple
|
|
| 3. |
VOE990737
|
[2] |
O-ring
|
|
| 4. |
VOE952624
|
[1] |
Clamp
|
|
| 5. |
VOE965175
|
[1] |
Flange screw
|
|
| 6. |
VOE11806985
|
[1] |
Support
|
|
| 7. |
VOE11806749
|
[1] |
Pressure switch
|
|
| 8. |
VOE11713145
|
[1] |
Switch
|
|
| 9. |
VOE11802798
|
[1] |
Symbol
|
|
| 10. |
VOE11715954
|
[1] |
Bulb
|
|
| 11. |
VOE60113082
|
[2] |
Flange screw
|
|
| 12. |
|
[1] |
Solenoid
|
|
| 13. |
VOE11803220
|
[1] |
Spacer
|
|
| 13. |
VOE11808284
|
|
Spacer
|
|
| 14. |
VOE965175
|
[2] |
Flange screw
|
|
| 15. |
VOE949278
|
[2] |
Flange lock nut
|
|
| 16. |
VOE11802932
|
[1] |
Hose
|
|
| 17. |
VOE935429
|
[1] |
Lock nut
|
|
| 18. |
VOE935084
|
[1] |
Nipple
|
|
| 19. |
VOE990737
|
[1] |
O-ring
|
|
| 20. |
VOE993319
|
[1] |
O-ring
|
|
| 21. |
VOE11803538
|
[1] |
Cable clamp
|
|
