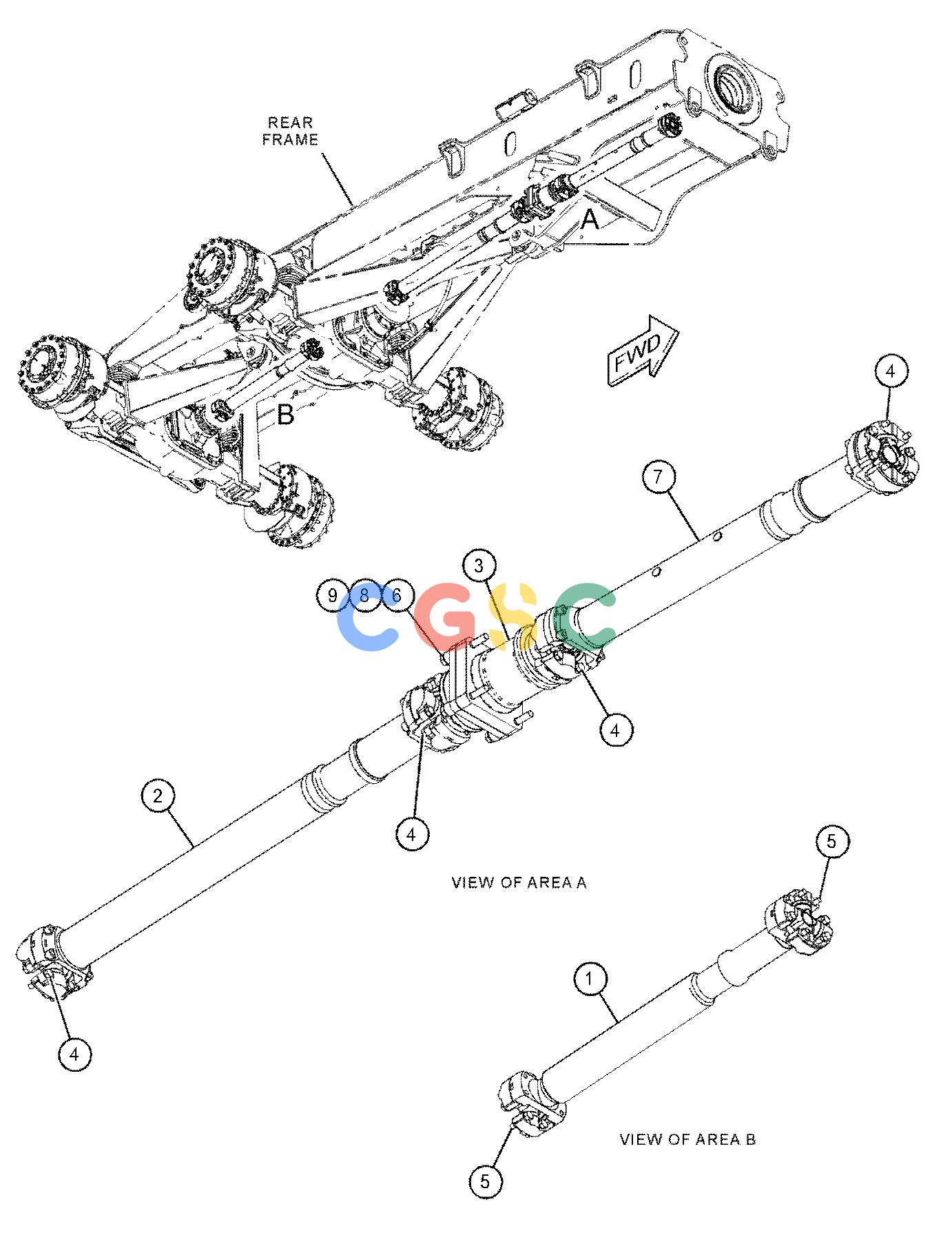

卡特零件查询（725C） 379-3743: SHAFT GP-DRIVE
广数供应链运营团队, 14 02月, 2025，浏览：
886 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 200-7736 | [1] | SLIP JOINT GP | |
| | 0S-1579 | [8] | BOLT(1/2-20X2-IN) | |
| | 9P-0356 | [2] | SPIDER & BEARING AS | |
| | 107-6277 | [1] | SEAL | |
| 2. | 370-8767 | [1] | SLIP JOINT GP | |
| | 0S-1604 | [8] | BOLT(1/2-20X2.5-IN) | |
| | 2T-3013 | [2] | UNIVERSAL JOINT | |
| | 2U-6747 | [1] | SEAL | |
| 3. | 457-2767Y | [1] | SHAFT GP-DRIVE | |
| 4. | 0S-0484 | [16] | BOLT(1/2-20X2.25-IN) | |
| 5. | 0S-1579 | [8] | BOLT(1/2-20X2-IN) | |
| 6. | 127-7122 | [4] | SPACER(17X32X22.5-MM THK) | |
| 7. | 174-4019 | [1] | SLIP JOINT GP | |
| | 0S-1604 | [8] | BOLT(1/2-20X2.5-IN) | |
| | 2U-6747 | [1] | SEAL | |
| | 172-0871 | [2] | SPIDER & BEARING AS | |
| 8. | 7X-2475M | [4] | BOLT(M16X2X130-MM) | |
| 9. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
