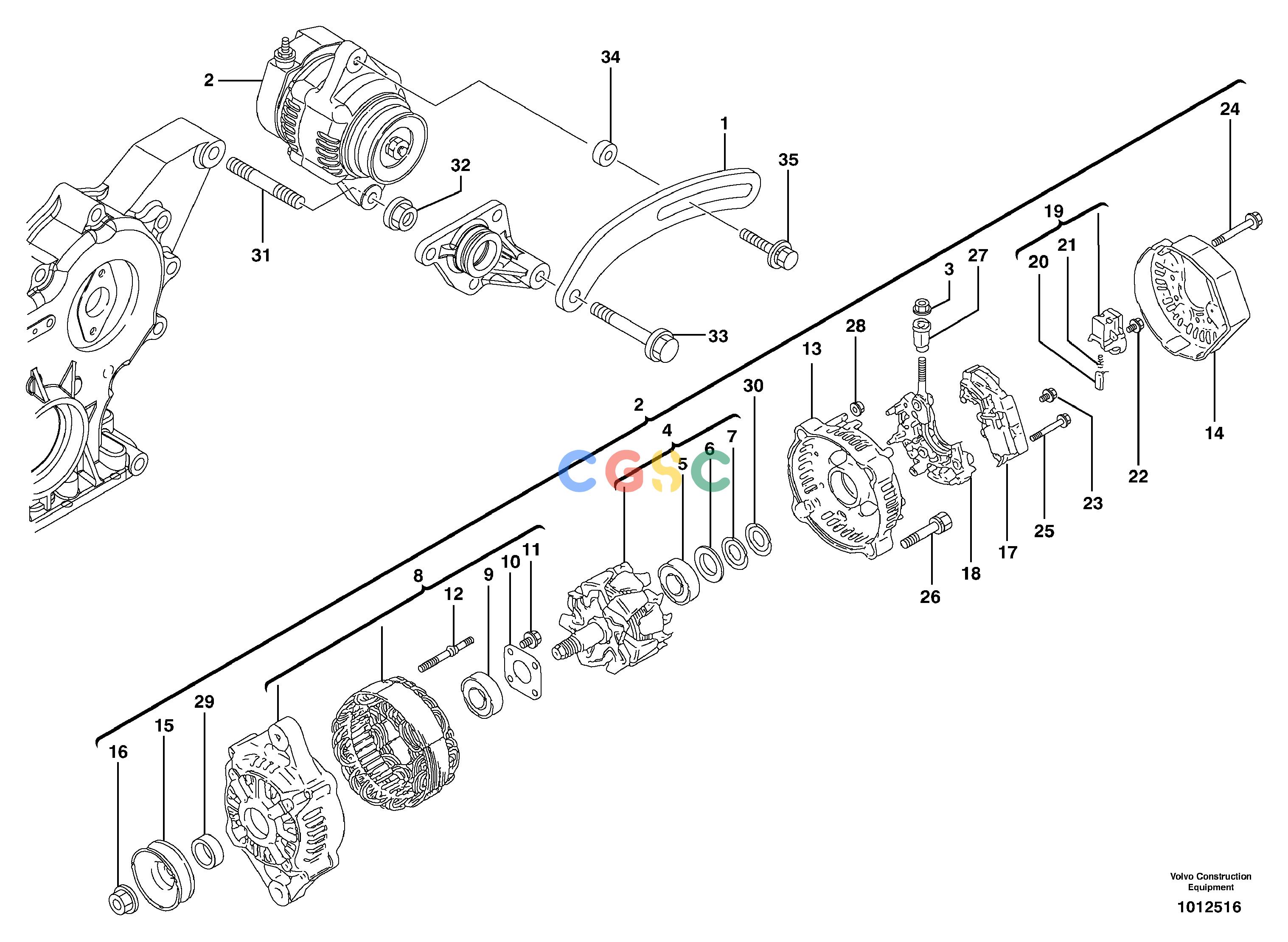

沃尔沃零件查询ECR38 AlternatorTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
353 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713777
|
[1] |
Alternator anchorage
|
|
| 2. |
VOE11713508
|
[1] |
Alternator
|
|
| 3. |
VOE14521614
|
[1] |
Nut
|
|
| 4. |
|
[1] |
Rotor
|
ORDER ITEM NO 2
|
| 5. |
VOE14521616
|
[1] |
Ball bearing
|
|
| 6. |
VOE14521617
|
[1] |
Cover
|
|
| 7. |
|
[1] |
Washer
|
ORDER ITEM NO 4
|
| 8. |
|
[1] |
Cover
|
ORDER ITEM NO 2
|
| 9. |
VOE14521619
|
[1] |
Ball bearing
|
|
| 10. |
VOE14521620
|
[1] |
Plate
|
|
| 11. |
VOE14521621
|
[4] |
Screw
|
|
| 12. |
VOE14521622
|
[2] |
Bolt
|
|
| 13. |
|
[1] |
Body
|
ORDER ITEM NO 2
|
| 14. |
|
[1] |
Body
|
ORDER ITEM NO 2
|
| 15. |
VOE14521624
|
[1] |
Pulley
|
|
| 16. |
VOE14521625
|
[1] |
Nut
|
|
| 17. |
VOE14521635
|
[1] |
Regulator
|
|
| 18. |
VOE11713509
|
[1] |
Brush retainer plate
|
|
| 19. |
VOE11713510
|
[1] |
Brush retainer
|
|
| 20. |
|
[2] |
Carbon brushes
|
ORDER ITEM NO 19
|
| 21. |
|
[2] |
Spring
|
ORDER ITEM NO 19
|
| 22. |
VOE14521628
|
[1] |
Screw
|
|
| 23. |
VOE14521629
|
[1] |
Screw
|
|
| 24. |
VOE14521630
|
[3] |
Bolt
|
|
| 25. |
VOE14521631
|
[2] |
Screw
|
|
| 26. |
VOE14521632
|
[2] |
Bolt
|
|
| 27. |
VOE14521633
|
[1] |
Bushing
|
|
| 28. |
VOE14521634
|
[2] |
Nut
|
|
| 29. |
VOE14521637
|
[1] |
Collar
|
|
| 30. |
|
[1] |
Washer
|
ORDER ITEM NO 2
|
| 31. |
VOE14521613
|
[1] |
Stud
|
|
| 32. |
VOE14521513
|
[1] |
Nut
|
|
| 33. |
VOE11714377
|
[1] |
Bolt
|
|
| 34. |
VOE11713778
|
[1] |
Spacer
|
|
| 35. |
VOE11713779
|
[1] |
Bolt
|
|
| 35. |
VOE11714463
|
|
Flange screw
|
|
