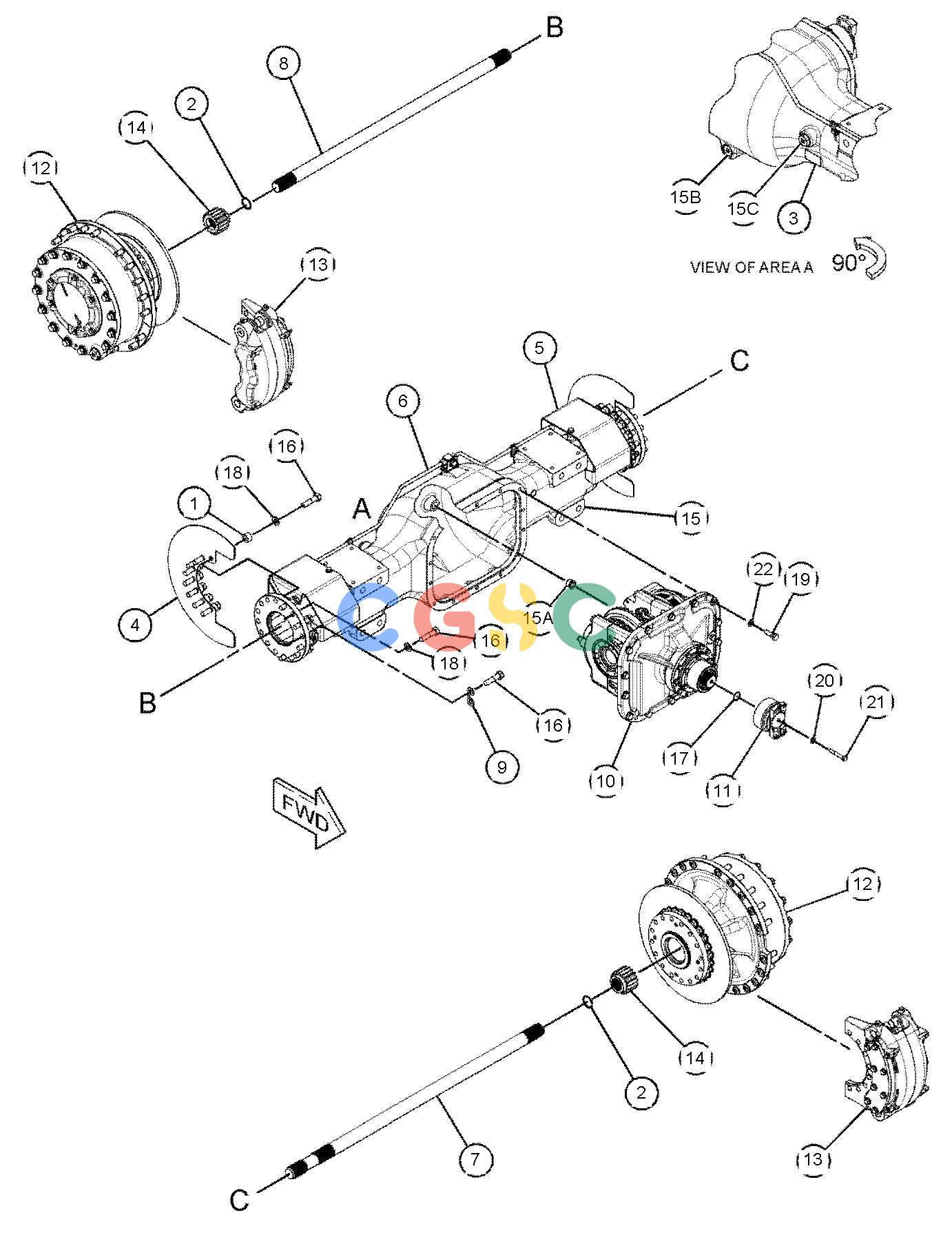

卡特零件查询（725C） 434-3820: AXLE GP-DRIVE
广数供应链运营团队, 14 02月, 2025，浏览：
544 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8K-6000 | [2] | RING-RETAINING | |
| 2. | 109-8895 | [1] | PLATE-IDENTIFICATION(LOGGING SKID) | |
| 3. | 137-5681Y | [1] | GUARD GP-LINES | |
| 4. | 138-1498 | [1] | SHAFT | |
| 5. | 138-4117 | [1] | RETAINER-BEARING | |
| 6. | 138-4121 | [1] | CAGE-BEARING | |
| 7. | 148-2758Y | [1] | LINES GP-SERVICE BRAKE | |
| 8. | 188-3777 | [1] | DISC | |
| 9. | 190-5933 | [1] | SHAFT-AXLE | |
| 10. | 190-5934 | [1] | SHAFT-AXLE | |
| 11. | 194-7819 | [1] | SPACER(76.5X87X4-MM THK) | |
| 12. | 195-9464 | [4] | SPACER-SPECIAL(3.5-MM THK) | |
| 13. | 196-7243 | [1] | LOCKNUT AS(2.75X18-THD) | |
| | 198-0050 | [4] | SETSCREW(1/4-28X0.37-IN) | |
| 14. | 293-4503 | [1] | SEAL-LIP TYPE | |
| 15. | 308-6002 | [1] | YOKE AS | |
| 16. | 308-6003 | [1] | YOKE AS | |
| | 132-0920 | [1] | GUARD | |
| 17. | 322-7323Y | [2] | WHEEL & FINAL DRIVE GP | |
| 18. | 347-9761Y | [4] | BRAKE GP-HYD CALIPER SERVICE | |
| 19. | 371-1063Y | [1] | DIFFERENTIAL & BEVEL GEAR GP | |
| 20. | 380-1598 | [2] | GEAR-SUN(18-TEETH) | |
| 21. | 382-5254 | [1] | HOUSING AS-AXLE | |
| 21A. | 160-6213 | [2] | BUSHING | |
| | 165-4929 | [1] | PLUG AS-MAGNETIC | |
| | 5P-4484 | [1] | PLUG-MAGNETIC | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 197-4977 | [1] | PLUG AS | |
| | 5P-4483 | [1] | PLUG | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 22. | 141-8891 | [2] | CONE-BEARING | |
| 23. | 141-8892 | [2] | CUP-BEARING | |
| 24. | 310-8642 | [32] | BOLT-LOCKING(3/4-10X3-IN) | |
| 25. | 4F-7391 | [1] | SEAL-O-RING | |
| 26. | 5H-3252 | [2] | SEAL-O-RING | |
| 27. | 5P-8248 | [24] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 28. | 7X-2454M | [1] | BOLT(M24X3X110-MM) | |
| 29. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 31. | 8T-4167 | [1] | WASHER-HARD(26X44X4-MM THK) | |
| 32. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 33. | 8T-4193M | [13] | BOLT(M16X2X50-MM) | |
| 34. | 8T-4944M | [20] | BOLT-SOCKET HEAD(M16X2X40-MM) | |
| 35. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 36. | 9X-8257 | [33] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
