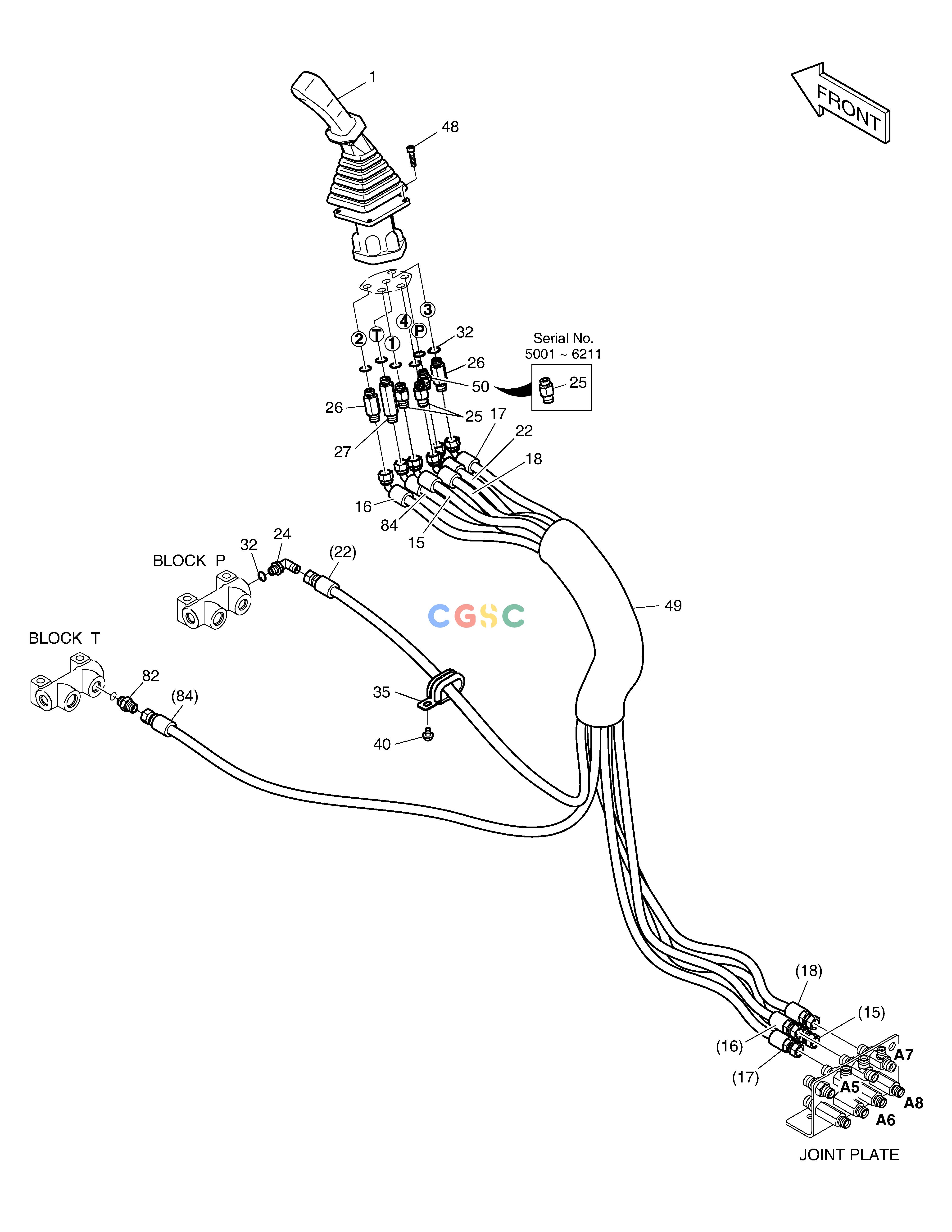

斗山零件查询PILOT PIPING(7) DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
991 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1004429L
|
[-] |
PILOT PIPING(2)
|
|
| -. |
420212-02884
|
[-] |
|
|
| -. |
420212-02884A
|
[-] |
|
|
| -. |
420212-02884C
|
[-] |
|
|
| -. |
420212-02884E
|
[-] |
|
|
| 1. |
K1000555H
|
[1] |
VALVE;REMOCON(R.H)
|
410113-00021A
|
| 1. |
410113-00021A
|
[1] |
|
410113-00125A
|
| 1. |
410113-00125A
|
[1] |
|
410113-00125B
|
| 1. |
410113-00125B
|
[1] |
|
|
| 15. |
DS2095001
|
[1] |
HOSE
|
|
| 16. |
DS2095001
|
[1] |
HOSE
|
|
| 17. |
DS2095001
|
[1] |
HOSE
|
|
| 18. |
DS2095001
|
[1] |
HOSE
|
|
| 22. |
DS2095002
|
[1] |
HOSE
|
|
| 24. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 25. |
DS2213165
|
[3] |
ADAPTER
|
|
| 25. |
DS2213165
|
[2] |
ADAPTER
|
|
| 26. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 27. |
2181-1126D28
|
[1] |
ADAPTER
|
|
| 32. |
S8000141
|
[7] |
O-RING
|
|
| 35. |
124-00209D2
|
[1] |
CLIP
|
|
| 40. |
K1001029
|
[1] |
BOLT
|
|
| 48. |
S2204866
|
[4] |
BOLT
|
|
| 49. |
K1003945
|
[1] |
PROTECTOR
|
|
| 50. |
430201-00113
|
[1] |
ADAPTER
|
|
| 82. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 84. |
DS2095003
|
[1] |
HOSE
|
|
