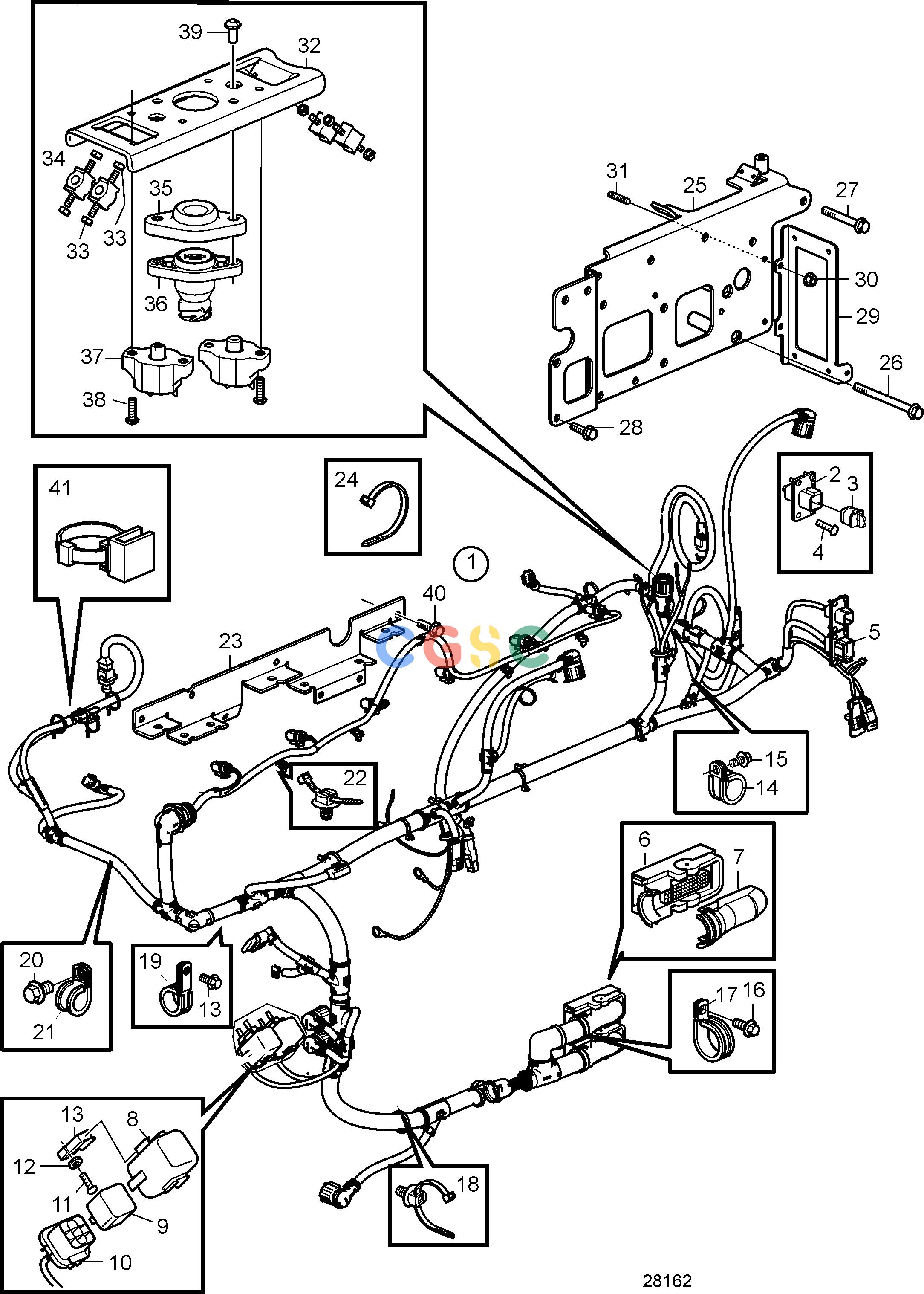

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
924 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22073759
|
[1] |
Wiring harness
|
Replaced by 22680074
|
| 1. |
22680074
|
[1] |
Wiring harness
|
|
| 2. |
992330
|
[1] |
Housing
|
|
| 3. |
3840433
|
[1] |
Sealing plug
|
|
| 4. |
969514
|
[8] |
Six point socket scr
|
|
| 5. |
874432
|
[1] |
Tab housing
|
|
| 6. |
20429843
|
[1] |
Housing
|
|
| 7. |
20429844
|
[2] |
Adapter
|
|
| 8. |
21494263
|
[2] |
Relay box
|
|
| 9. |
3171420
|
[2] |
Relay
|
|
| 10. |
3587172
|
[2] |
Relay socket
|
|
| 11. |
996061
|
[2] |
Flange screw
|
|
| 12. |
960138
|
[2] |
Washer
|
|
| 13. |
21492847
|
[2] |
Relay bracket
|
|
| 14. |
1545432
|
[1] |
Attaching clamp
|
|
| 15. |
984733
|
[8] |
Flange screw
|
|
| 16. |
949997
|
[2] |
Clamp
|
|
| 17. |
984734
|
[2] |
Flange screw
|
|
| 18. |
980881
|
[3] |
Cable tie
|
|
| 19. |
990487
|
[1] |
Clamp
|
|
| 20. |
984751
|
[1] |
Flange screw
|
|
| 21. |
942810
|
[1] |
Clamp
|
|
| 22. |
994891
|
[4] |
Cable tie
|
|
| 23. |
21204994
|
[1] |
Bracket
|
D=73mm
|
| 24. |
948211
|
[1] |
Cable tie
|
D=35mm high tempererature
|
| 25. |
21751060
|
[1] |
Bracket
|
|
| 26. |
984744
|
[2] |
Flange screw
|
|
| 27. |
984740
|
[4] |
Flange screw
|
|
| 28. |
984752
|
[4] |
Flange screw
|
|
| 29. |
21859159
|
[1] |
Bracket
|
|
| 30. |
990940
|
[2] |
Flange nut
|
|
| 31. |
980289
|
[2] |
Stud
|
|
| 32. |
21859167
|
[1] |
Fuse holder
|
|
| 33. |
955779
|
[8] |
Hexagon nut
|
|
| 34. |
21421504
|
[4] |
Rubber damper
|
|
| 35. |
21738845
|
[1] |
Cover
|
|
| 36. |
21847110
|
[1] |
Stop button
|
|
| 37. |
873952
|
[2] |
Automatic fuse
|
|
| 38. |
996061
|
[8] |
Flange screw
|
|
| 39. |
969420
|
[2] |
Six point socket scr
|
|
| 40. |
984733
|
[8] |
Flange screw
|
|
| 41. |
25375469
|
[1] |
Retainer
|
|
