日立零件查询（CX2000）TRANSMISSION GEAR Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
449 次

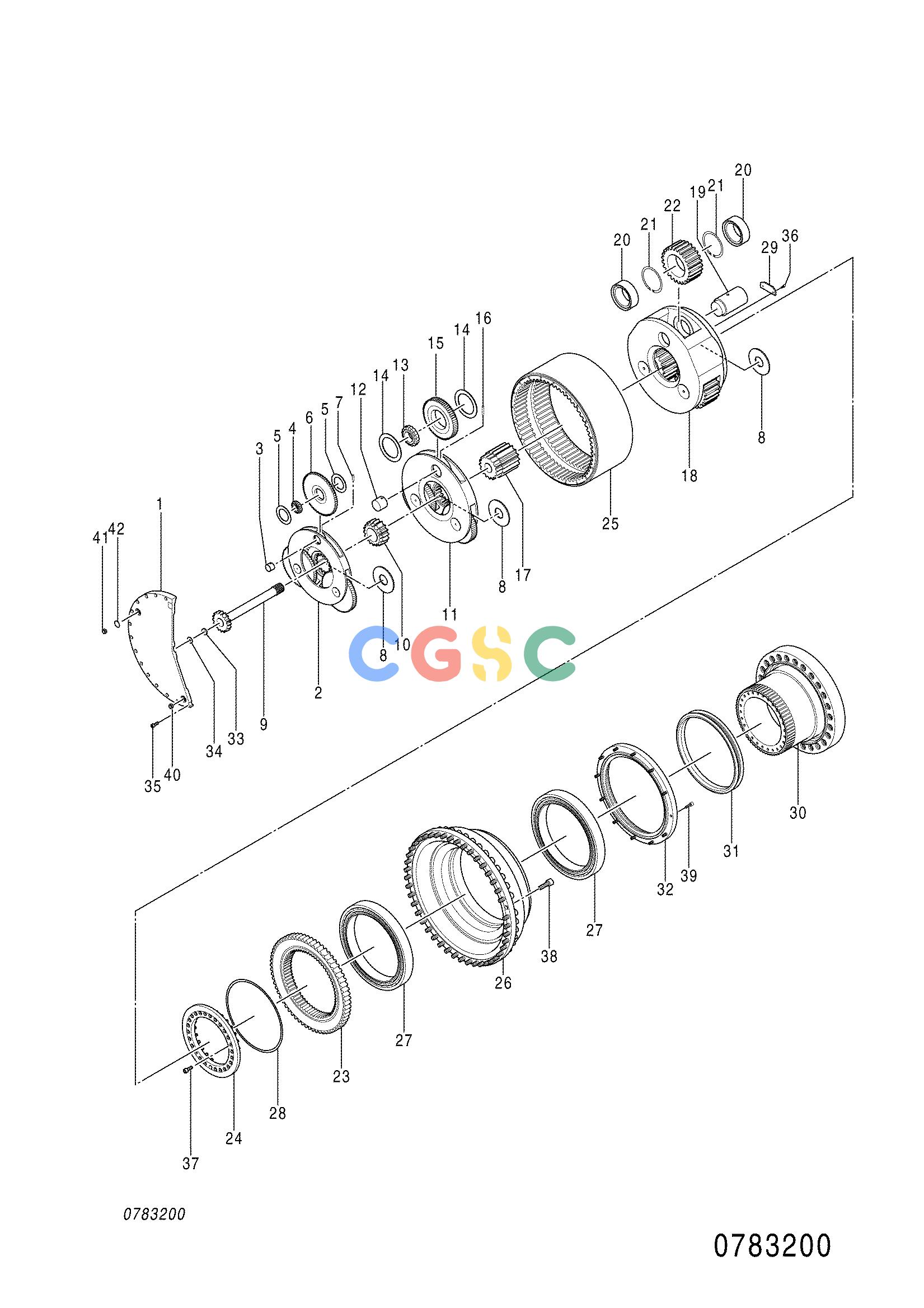

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4410094 | [1] | T.MISSION;GEAR | 0783200 |
| 1. | 0783201 | [1] | COVER | |
| 2. | 0783202 | [1] | CARRIER | |
| 3. | 0783203 | [3] | PIN | |
| 4. | 0783204 | [3] | BRG. | |
| 5. | 0783205 | [6] | WASHER;THRUST | |
| 6. | 0783206 | [3] | GEAR;PLANETARY | |
| 7. | 0783207 | [3] | PIN;SPRING | |
| 8. | 0783208 | [3] | SPACER | |
| 9. | 0783209 | [1] | GEAR;SUN | |
| 10. | 0783210 | [1] | GEAR;SUN | |
| 11. | 0783211 | [1] | CARRIER | |
| 12. | 0783212 | [3] | PIN | |
| 13. | 0783213 | [3] | BRG. | |
| 14. | 0783214 | [6] | WASHER;THRUST | |
| 15. | 0783215 | [3] | GEAR;PLANETARY | |
| 16. | 0783216 | [3] | PIN;SPRING | |
| 17. | 0783217 | [1] | GEAR;SUN | |
| 18. | 0783218 | [1] | CARRIER | |
| 19. | 0783219 | [3] | PIN | |
| 20. | 0783220 | [6] | BRG. | |
| 21. | 0783221 | [6] | RING;RETAINING | |
| 22. | 0783222 | [3] | GEAR;PLANETARY | |
| 23. | 0783223 | [1] | COUPLING | |
| 24. | 0783224 | [1] | HOLDER | |
| 25. | 0783225 | [1] | GEAR;RING | |
| 26. | 0783226 | [1] | HOUSING | |
| 27. | 0783227 | [2] | BRG. | |
| 28. | 0783228 | [3] | SHIM | |
| 29. | 0783229 | [3] | STOPPER | |
| 30. | 0783230 | [1] | SPINDOL | |
| 31. | 0783231 | [1] | SEAL | |
| 32. | 0783232 | [1] | COVER;SEAL | |
| 33. | 0783233 | [1] | RING;THRUST | |
| 34. | 0783234 | [2] | SHIM | |
| 35. | 0783235 | [26] | BOLT;SOCKET | |
| 36. | 0781135 | [6] | BOLT;SOCKET | |
| 37. | 0783236 | [28] | BOLT;SOCKET | |
| 38. | 0783237 | [30] | BOLT;SOCKET | |
| 39. | 0159115 | [15] | BOLT;SOCKET | |
| 40. | 0781136 | [2] | PLUG | |
| 41. | 0783238 | [1] | PLUG | |
| 42. | Z957366 | [1] | O-RING | |
