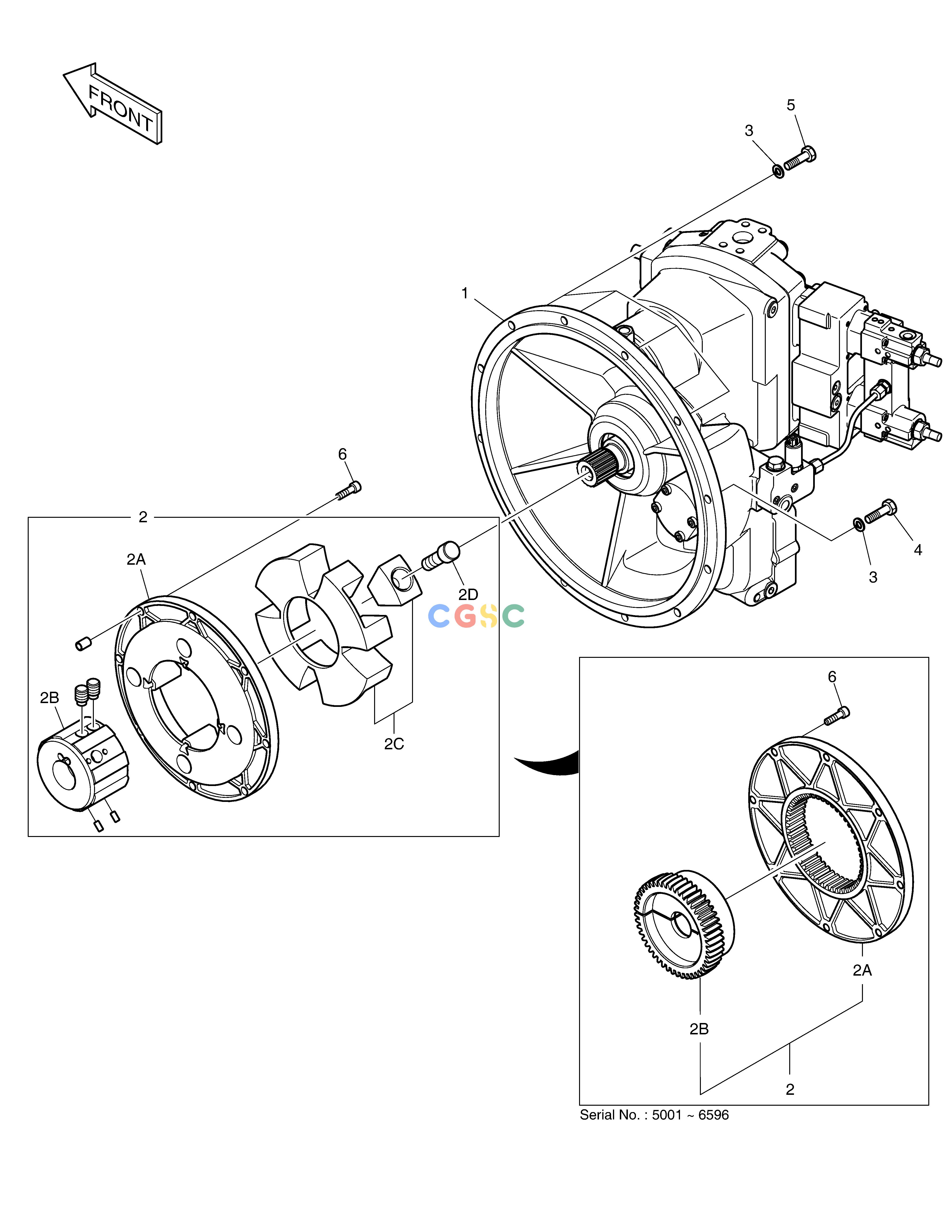

斗山零件查询PUMP MOUNTING DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
912 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005197E
|
[-] |
PUMP ASS'Y
|
|
| -. |
400914-00256
|
[-] |
|
|
| 1. |
K1004522C
|
[1] |
PUMP;MAIN
|
400914-00249
|
| 1. |
400914-00249
|
[1] |
|
|
| 2. |
K1018984
|
[1] |
COUPLING
|
|
| 2. |
130801-00072
|
[1] |
|
|
| 2A. |
414-00063
|
[1] |
FLANGE;COUPLING
|
|
| 2A. |
430215-00998
|
[1] |
|
|
| 2B. |
K1018999
|
[1] |
HUB;COUPLING
|
|
| 2B. |
NA00546
|
[1] |
HUB
|
|
| 2C. |
130801-00053
|
[1] |
|
|
| 2D. |
S2227866
|
[4] |
BOLT
|
|
| 3. |
120804-00070
|
[12] |
WASHER
|
|
| 4. |
S0558366
|
[8] |
BOLT M10X1.5X40
|
|
| 5. |
S0558566
|
[4] |
BOLT
|
|
| 6. |
S2212566
|
[8] |
BOLT
|
|
| 6. |
S2212366
|
[8] |
BOLT
|
|
