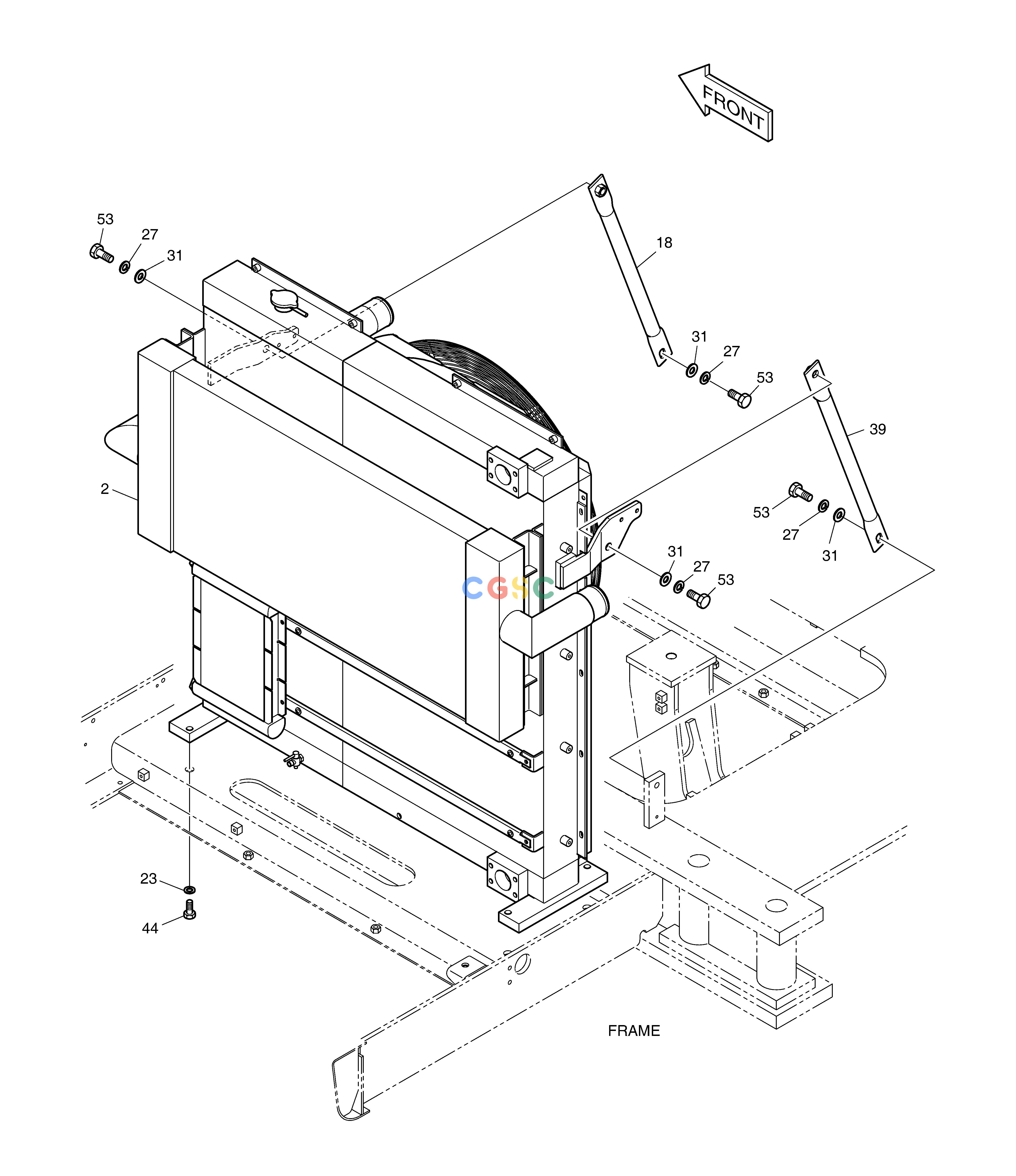

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1004971K | [-] | ENGINE ASS'Y | |
| -. | 150109-00586 | [-] | ||
| 18. | K1005859A | [1] | STAY | |
| 2. | K1023212 | [1] | RADIATOR ASS'Y | 440211-00255 |
| 2. | 440211-00255 | [1] | ||
| 23. | 2114-1816A | [4] | WASHER | |
| 27. | S5102903 | [4] | WASHER | |
| 31. | S5010913 | [4] | WASHER | |
| 39. | K1005860A | [1] | STAY | |
| 44. | S0565066 | [4] | BOLT M16X2.0X40 | |
| 53. | S0521566 | [4] | BOLT |
