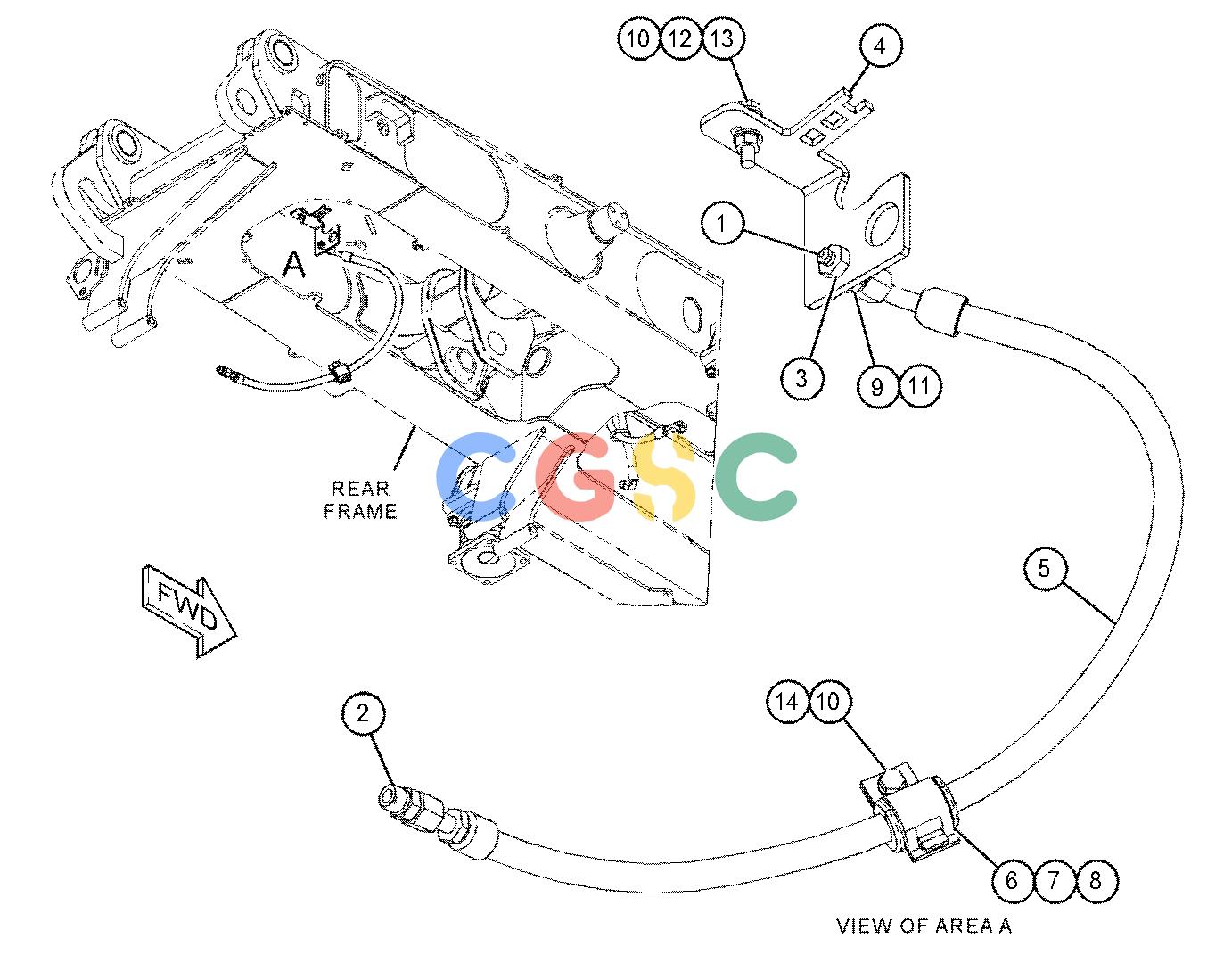

卡特零件查询（725C） 454-7372: BREATHER GP-POWER TRAIN
广数供应链运营团队, 14 02月, 2025，浏览：
373 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 226-3739I | [1] | HOSE AS | |
| 2. | 495-3760Y | [1] | VALVE GP-RELIEF(BREATHER) | |
| 3. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 4. | 5P-7464 | [1] | CLIP(SLOT) | |
| 5. | 5P-7465 | [1] | CLIP(TAB) | |
| 6. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 7. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
