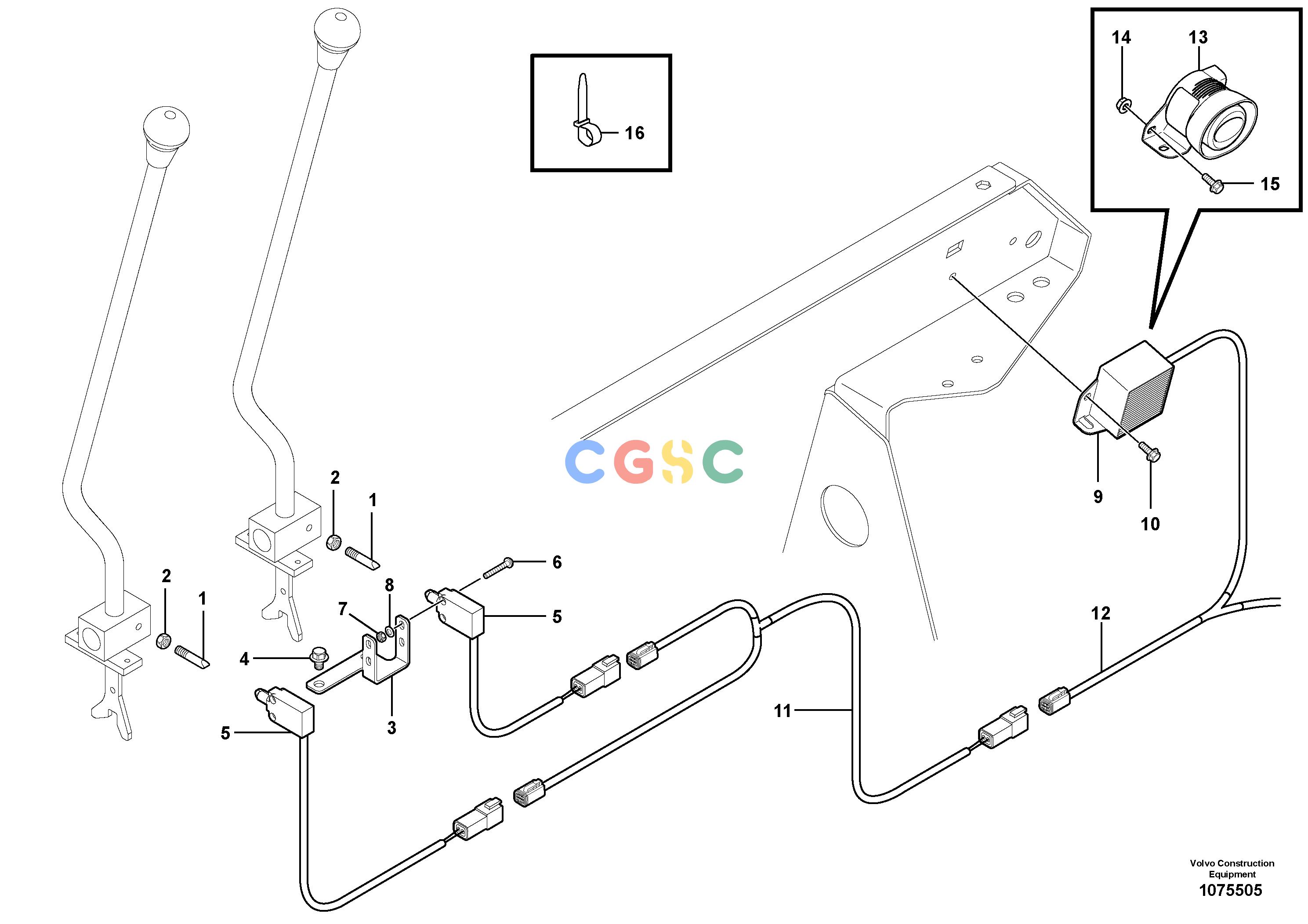

沃尔沃零件查询ECR38 Back-up warning unitTYPE 60211839901-11839042VOE11839901NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
169 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11802211
|
[2] |
Rod
|
|
| 1. |
VOE15670165
|
|
Pin
|
|
| 2. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 3. |
VOE11802213
|
[1] |
Support
|
|
| 3. |
VOE15670172
|
|
Support plate
|
|
| 4. |
VOE947107
|
[2] |
Flange screw
|
|
| 5. |
VOE15075486
|
[2] |
Switch
|
|
| 6. |
VOE969518
|
[4] |
Six point socket screw
|
|
| 7. |
VOE955779
|
[4] |
Hexagon nut
|
|
| 8. |
VOE955891
|
[4] |
Plain washer
|
|
| 9. |
VOE11802755
|
[1] |
Buzzer
|
|
| 9. |
VOE15409160
|
|
Alarm
|
|
| 10. |
VOE946544
|
[2] |
Flange screw
|
|
| 10. |
VOE13946173
|
|
Screw
|
|
| 11. |
VOE11803358
|
[1] |
Wire harness
|
|
| 12. |
VOE11803183
|
[1] |
Wire harness
|
S/N - 602.10524
|
| 12. |
VOE11807270
|
[1] |
Wire harness
|
S/N 602.10525 - 11515
|
| 12. |
VOE15645398
|
[1] |
Wiring harness
|
S/N 11516-12027
|
| 12. |
VOE15660172
|
[1] |
Wiring harness
|
S/N 12028-
|
| 13. |
VOE15409160
|
|
Alarm
|
|
| 14. |
VOE948645
|
|
Flange lock nut
|
|
| 15. |
VOE13946173
|
|
Screw
|
|
| 16. |
VOE4881440
|
[REQ] |
Cable tie
|
|
