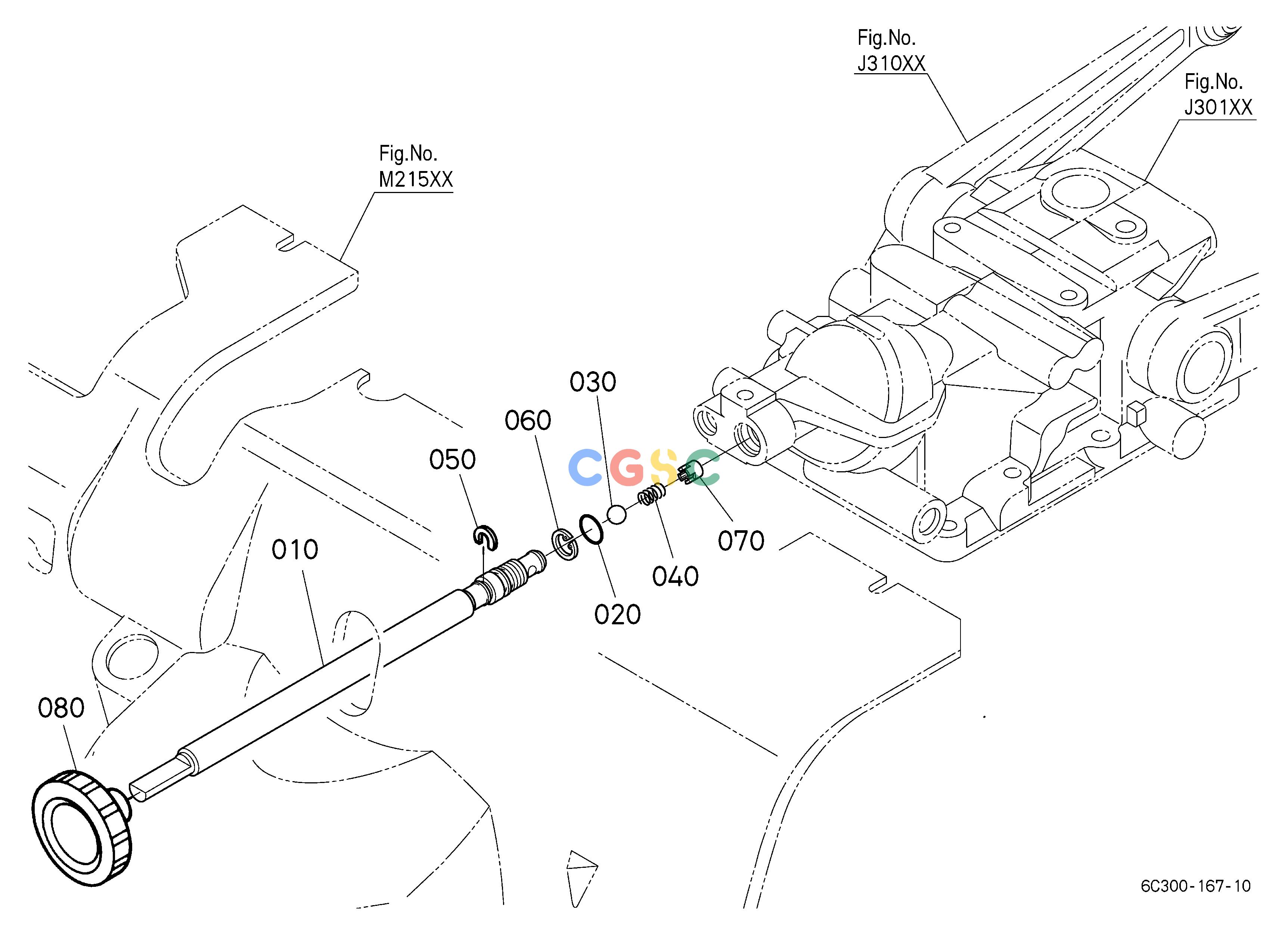

久保田零件查询J42800 FALL ADJUSTMENT SHAFT HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A74136280
|
[1] |
SHAFT,HYD.ADJUST
|
0.2420(lbs); 0.110
|
| 020. |
0481700100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0771503209
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 040. |
6A60093650
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 050. |
6A32037410
|
[1] |
STOPPER
|
0.0044(lbs); 0.002
|
| 060. |
0461100190
|
[1] |
CIR-CLIP,INTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6A60036270
|
[1] |
COLLAR
|
0.0044(lbs); 0.002
|
| 080. |
3741036643
|
[1] |
GRIP
|
0.0660(lbs); 0.030
|
