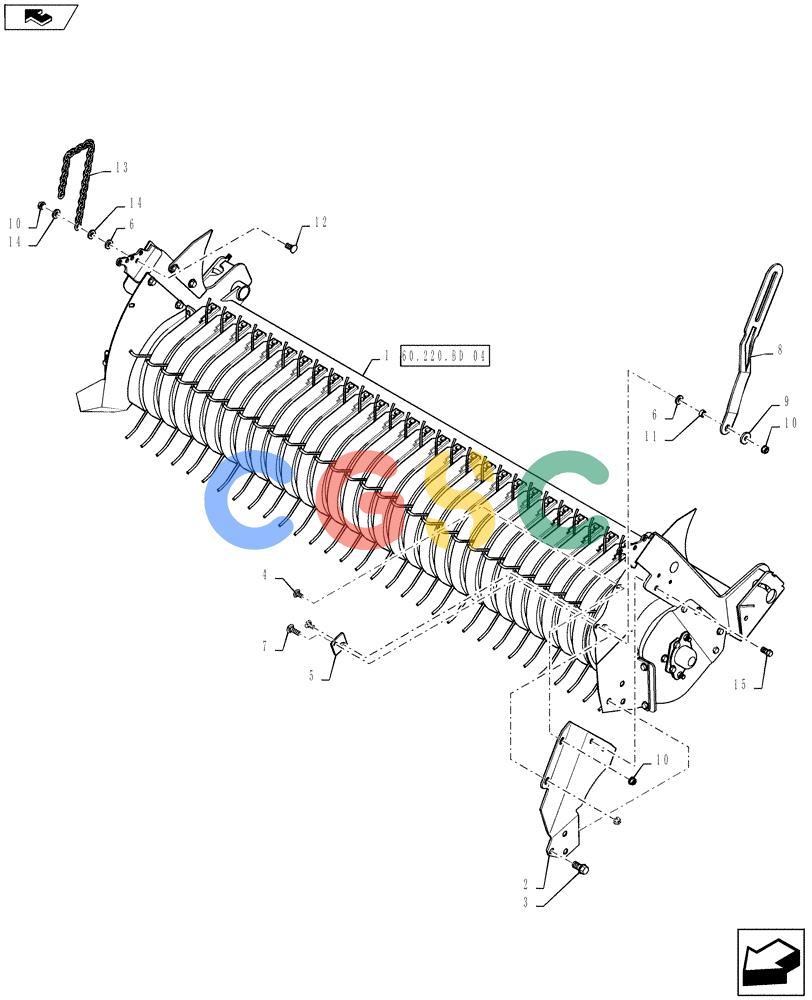

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (60.220.BD[07]) - VAR - 726918 - 2M 5-BAR PICKUP MOUNTING PARTS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
2M - 5 Bar Overshot Rotor Pickup Assembly
|
| 2. |
84353327
|
[1] |
MOUNT
|
NH
LH
|
| 3. |
86511845
|
[3] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
| 4. |
120041
|
[2] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 5. |
84569145
|
[1] |
MOUNT
|
NH
|
| 6. |
48917
|
[2] |
WASHER
|
NH
|
| 7. |
374892
|
[1] |
CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8
|
NH
|
| 8. |
84518496
|
[1] |
LINK
|
NH
|
| 9. |
213404
|
[1] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
|
| 10. |
9804278
|
[4] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 11. |
87020910
|
[1] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
| 12. |
86512446
|
[1] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 13. |
47516607
|
[1] |
CHAIN
|
NH
|
| 14. |
80702
|
[2] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 15. |
9804262
|
[2] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
