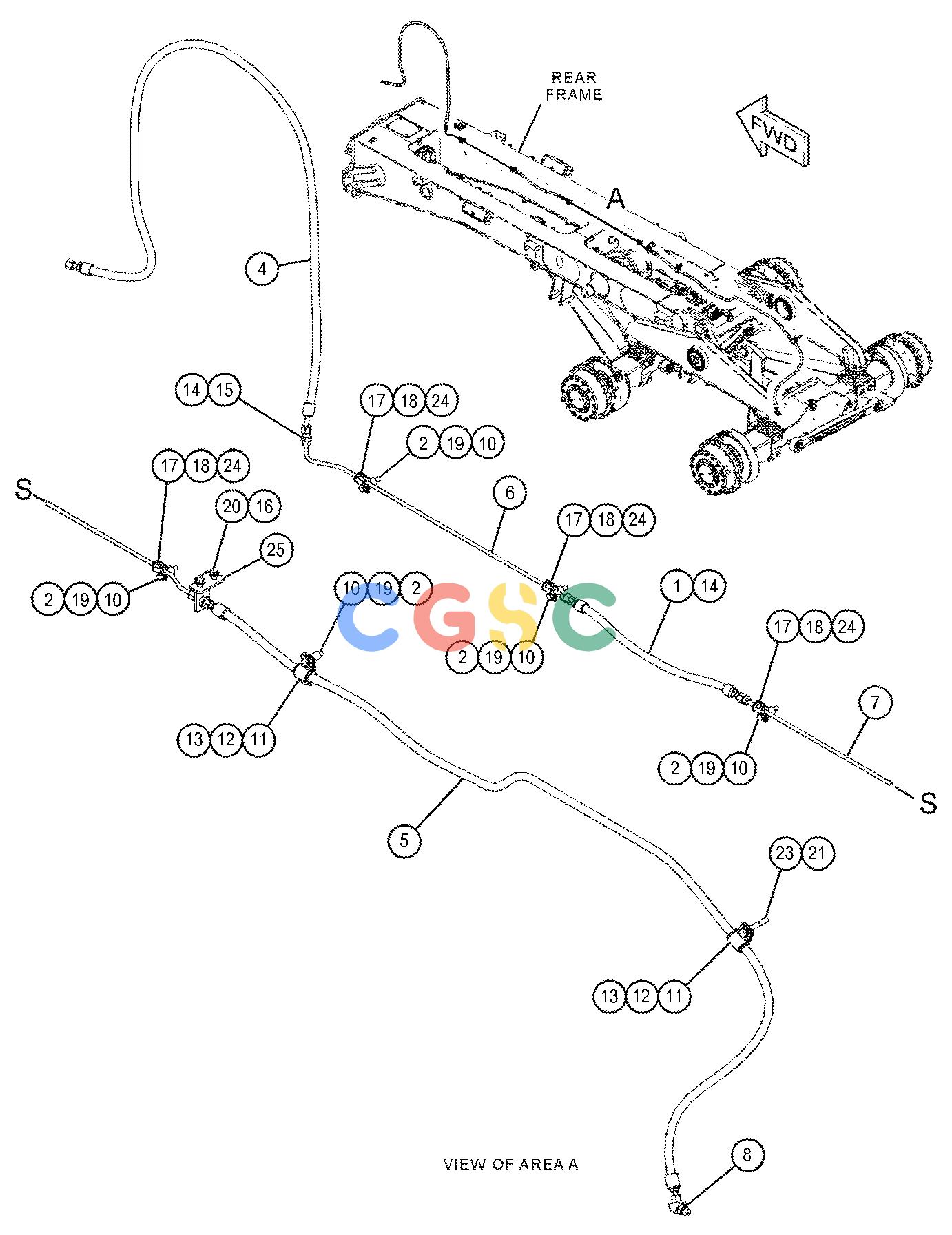

卡特零件查询（725C） 444-9022: CONTROL GP-DIFFERENTIAL LOCK
广数供应链运营团队, 14 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 176-1579I | [1] | HOSE AS | |
| 2. | 217-5449 | [5] | SPACER(11X20X30-MM THK) | |
| 4. | 447-0296I | [1] | HOSE AS | |
| 5. | 481-3009I | [1] | HOSE AS | |
| 6. | 455-1465 | [1] | TUBE AS | |
| 7. | 455-1466 | [1] | TUBE AS | |
| 8. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 10. | 160-8742M | [5] | BOLT(M10X1.5X55-MM) | |
| 11. | 5P-7462 | [2] | CLIP(SLOT) | |
| 12. | 5P-7463 | [2] | CLIP(TAB) | |
| 13. | 6V-0683 | [2] | GROMMET | |
| 14. | 6V-8397 | [3] | SEAL-O-RING | |
| 15. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 16. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 17. | 8T-1887 | [4] | CLIP(SLOT) | |
| 18. | 8T-1888 | [4] | CLIP(TAB) | |
| 19. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 21. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 8T-6868M | [1] | BOLT(M12X1.75X80-MM) | |
| 24. | 8W-8909 | [4] | SLEEVE | |
| 25. | 494-1936 | [1] | ADAPTER GP-MOUNTING | |
| | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| | 8T-4994 | [1] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 396-0514 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
