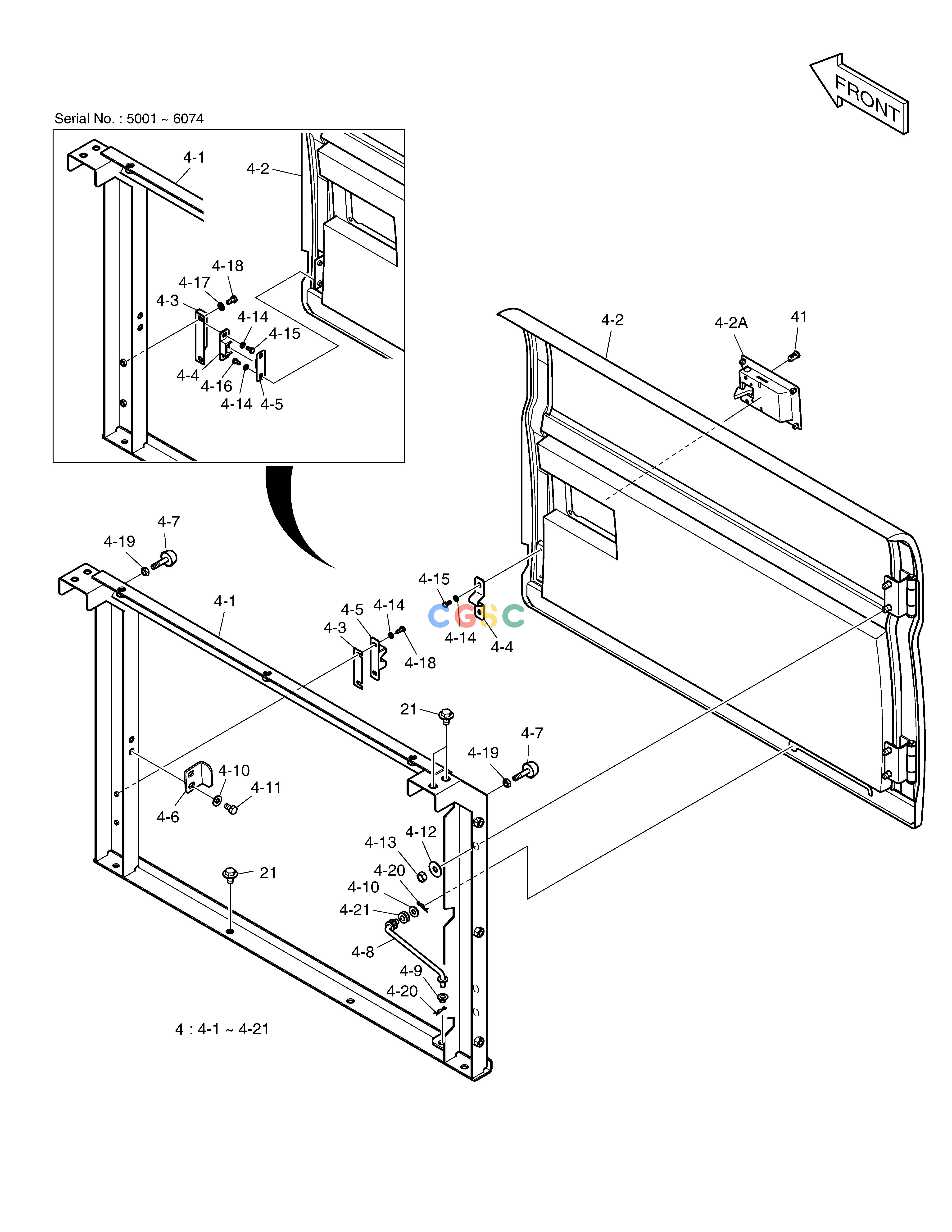

斗山零件查询SIDE DOOR - R.H DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005229C
|
[-] |
COVER ASS'Y
|
|
| -. |
110508-00233
|
[-] |
|
|
| 21. |
DS0025015
|
[6] |
BOLT
|
|
| 4. |
K1005251E
|
[1] |
SIDE DOOR ASS'Y(R.H)
|
110982-00121A
|
| 4. |
110982-00121A
|
[1] |
|
110982-00121B
|
| 4. |
110982-00121B
|
[1] |
|
110982-00121C
|
| 4. |
110982-00121C
|
[1] |
|
|
| 4-1. |
K1005280C
|
[1] |
SUPPORT
|
|
| 4-10. |
2114-1058D45
|
[3] |
. WASHER
|
|
| 4-11. |
S0511866
|
[2] |
BOLT
|
|
| 4-12. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 4-13. |
S4012733
|
[4] |
NUT
|
|
| 4-14. |
S5010513
|
[4] |
WASHER
|
|
| 4-15. |
S0504553
|
[2] |
BOLT
|
|
| 4-16. |
S0504453
|
[2] |
BOLT
|
|
| 4-17. |
S5010513
|
[2] |
WASHER
|
|
| 4-18. |
S0504653
|
[2] |
. BOLT
|
|
| 4-18. |
S0508753
|
[2] |
BOLT M8X1.25X18
|
|
| 4-19. |
S4012633
|
[2] |
NUT
|
|
| 4-2. |
110982-00122A
|
[1] |
|
110982-00122B
|
| 4-2. |
110982-00122B
|
[1] |
|
|
| 4-2. |
K1005282C
|
[1] |
SIDE DOOR
|
|
| 4-20. |
2705-9002
|
[2] |
PIN
|
|
| 4-21. |
K1008335
|
[1] |
. BUSHING
|
|
| 4-2A. |
125-00035A
|
[1] |
LOCK
|
|
| 4-3. |
110947-00027
|
[1] |
. SHIM
|
|
| 4-3. |
2116-1522
|
[1] |
PLATE
|
|
| 4-4. |
250201-00028
|
[1] |
. PLATE
|
|
| 4-4. |
2161-9052
|
[1] |
STOPPER;PLATE
|
|
| 4-5. |
110956-00002
|
[1] |
|
110956-00002A
|
| 4-5. |
110956-00002A
|
[1] |
. STOPPER
|
|
| 4-5. |
2161-9053
|
[1] |
STOPPER;RUBBER
|
|
| 4-6. |
621-02726A
|
[1] |
. PLATE,LOCK
|
|
| 4-7. |
K1001260A
|
[2] |
STOPPER
|
|
| 4-8. |
623-00075B
|
[1] |
. STAY ASSY(L.H)
|
|
| 4-9. |
K1000602
|
[1] |
. BUSHING
|
|
| 41. |
K1004529
|
[1] |
CYLINDER;KEY
|
|
