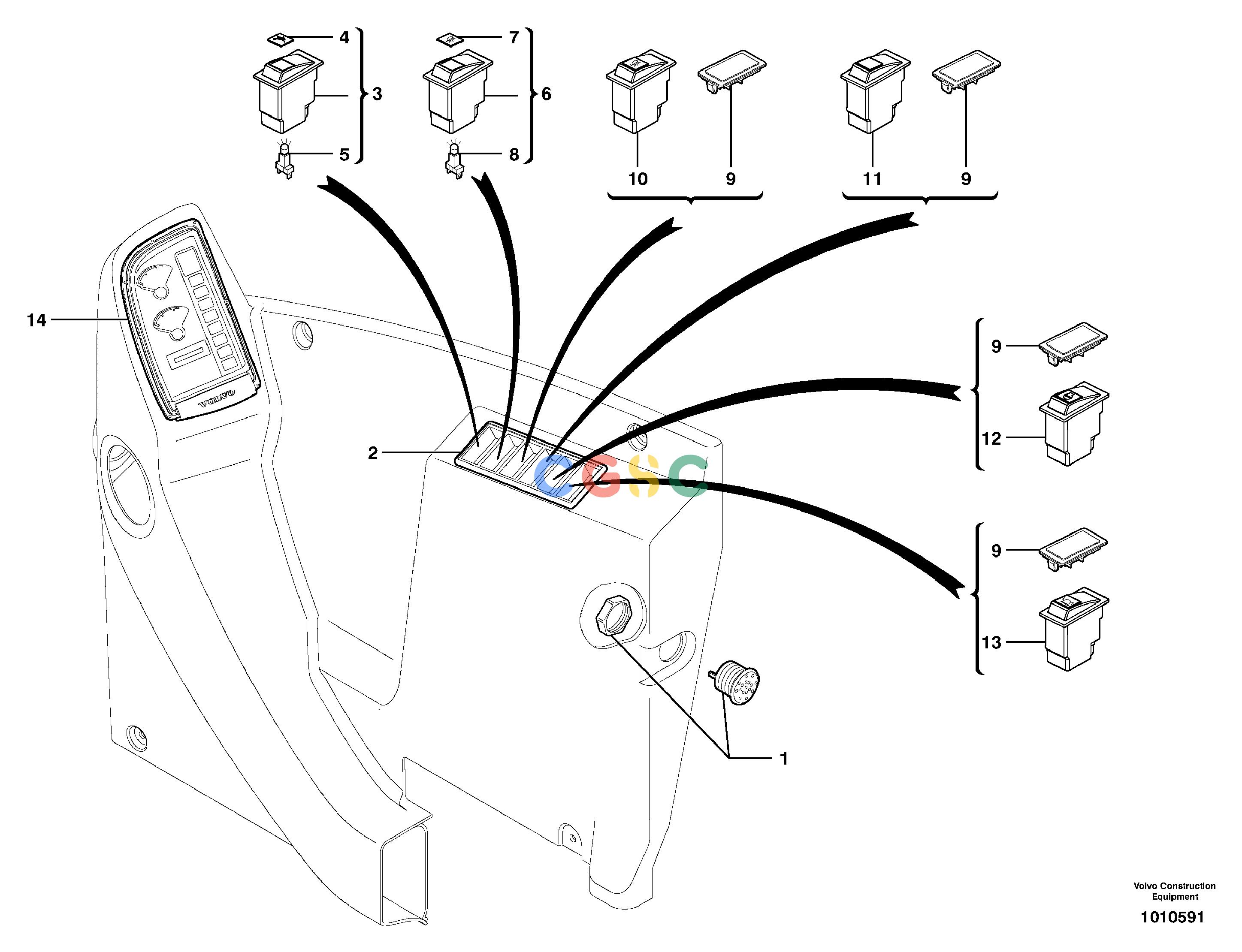

沃尔沃零件查询ECR38 Instrument panel, rightTYPE 602602.10151-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE828587
|
[1] |
Buzzer
|
|
| 2. |
VOE11802460
|
[1] |
Frame
|
|
| 3. |
VOE11710058
|
[1] |
Contact kit
|
|
| 4. |
VOE11803234
|
[1] |
Symbol
|
|
| 5. |
VOE11715954
|
[1] |
Bulb
|
|
| 6. |
VOE11803361
|
[1] |
Switch
|
|
| 7. |
VOE11803360
|
[1] |
Symbol
|
|
| 8. |
VOE11715954
|
[1] |
Bulb
|
|
| 9. |
VOE11803380
|
[REQ] |
Cover
|
|
| 10. |
|
[REQ] |
Halogen switch
|
|
| 11. |
|
[REQ] |
Load safety switch
|
|
| 12. |
|
[REQ] |
Switch
|
|
| 13. |
|
[REQ] |
Flashing light switch
|
|
| 14. |
|
[1] |
Instr Panel
|
|
