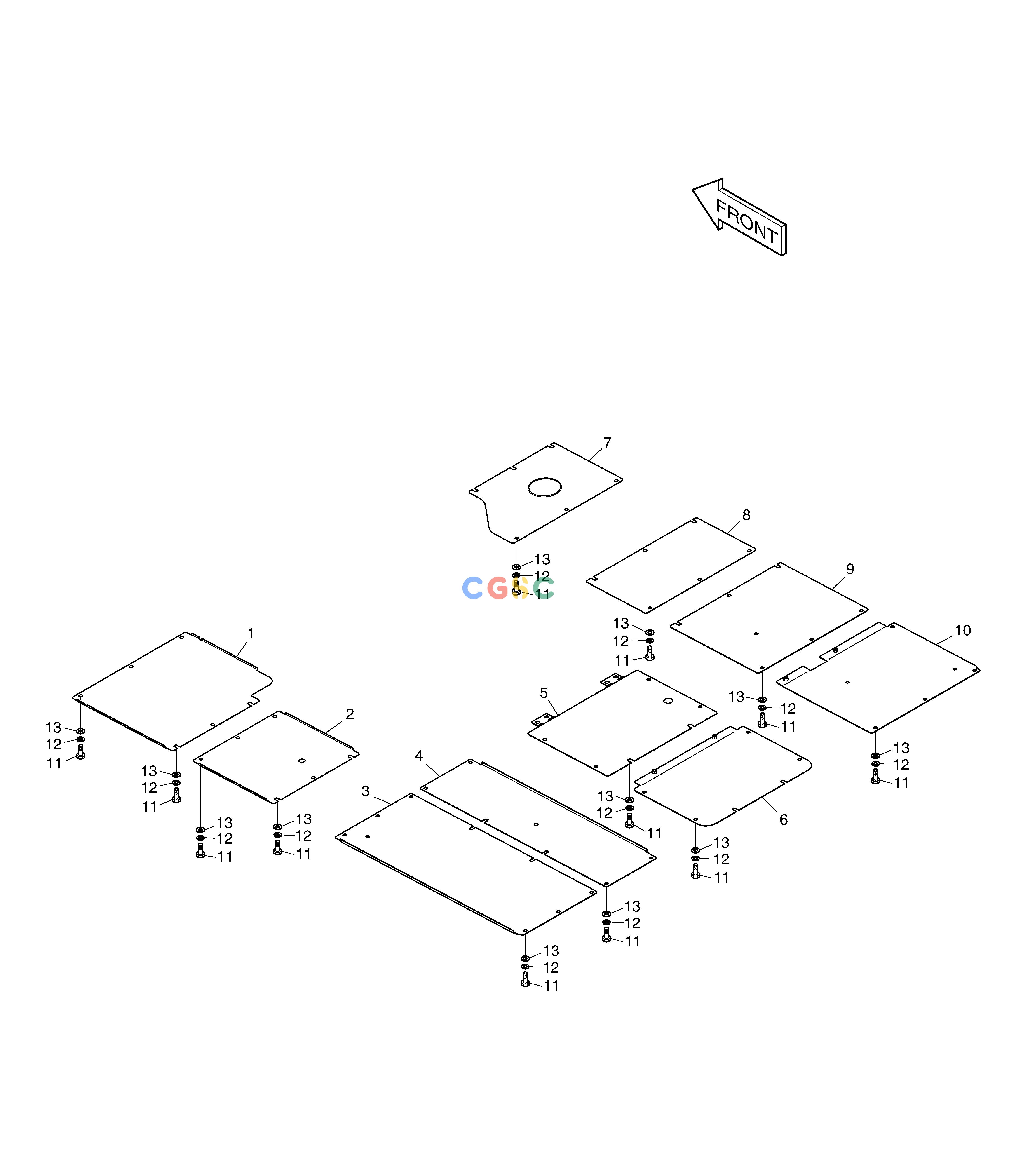

斗山零件查询UNDER COVER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005369G
|
[-] |
UNDER COVER ASS'Y
|
|
| 1. |
K1005370A
|
[1] |
COVER;UNDER
|
|
| 10. |
K1005379C
|
[1] |
COVER;UNDER
|
|
| 11. |
S0560466
|
[67] |
BOLT
|
|
| 12. |
S5102703
|
[67] |
WASHER
|
|
| 13. |
DS0401188
|
[67] |
WASHER
|
|
| 2. |
K1005371A
|
[1] |
COVER;UNDER
|
|
| 3. |
K1005372A
|
[1] |
COVER;UNDER
|
|
| 4. |
K1005373A
|
[1] |
COVER;UNDER
|
|
| 5. |
K1005374C
|
[1] |
COVER;UNDER
|
|
| 6. |
K1005375B
|
[1] |
COVER;UNDER
|
|
| 7. |
K1005376B
|
[1] |
COVER;UNDER
|
|
| 8. |
K1005377B
|
[1] |
COVER;UNDER
|
|
| 9. |
K1005378B
|
[1] |
COVER;UNDER
|
|
