日立零件查询（CX2000）JACK CYLINDER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
397 次

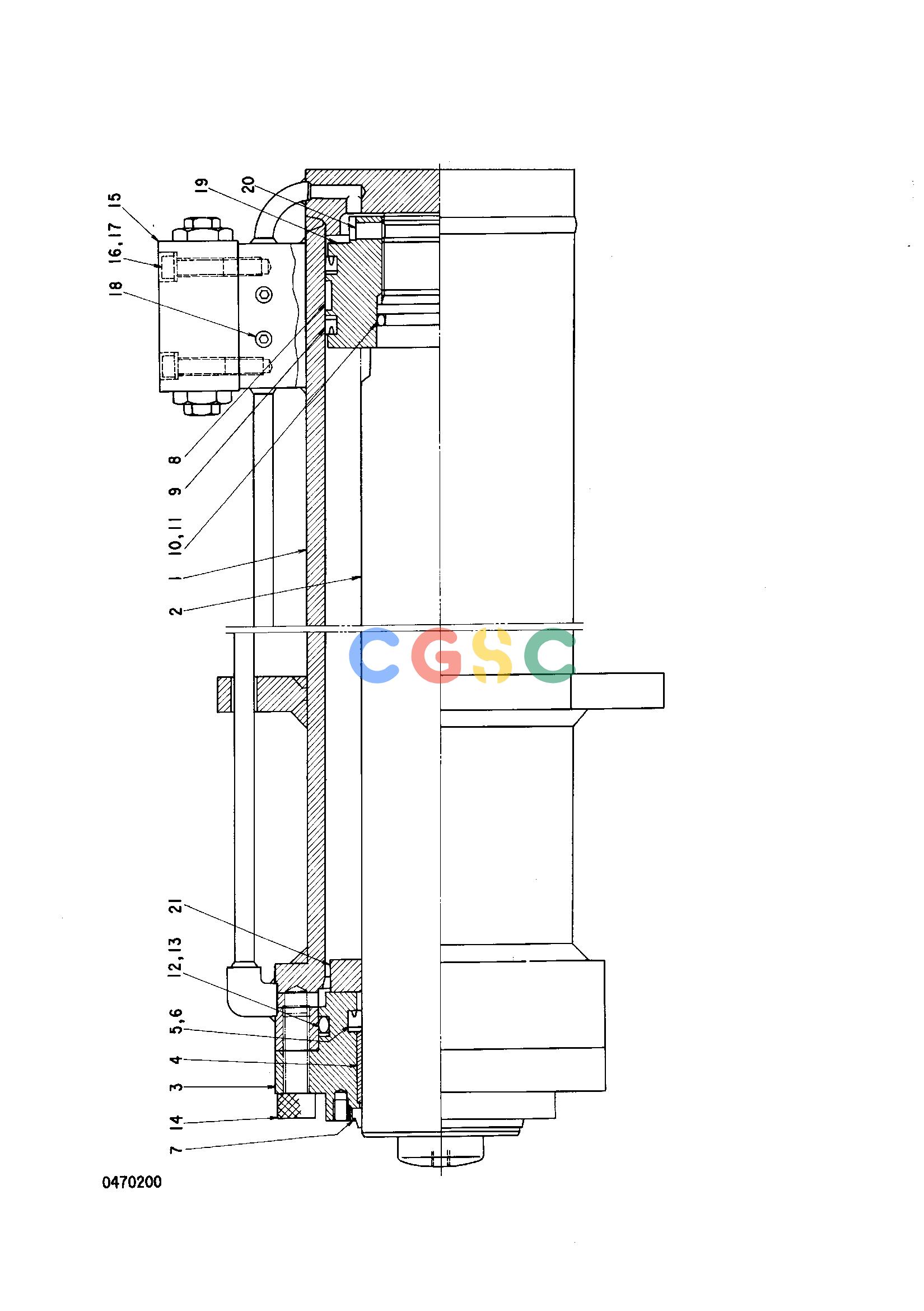

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4261687 | [1] | CYL.;JACK | 0470200 |
| 1. | 0470201 | [1] | TUBE;CYL. | |
| 2. | 0470202 | [1] | ROD;PISTON | |
| 3. | 0286303 | [1] | HEAD;CYL. | |
| 4. | 4505059 | [1] | BUSHING | |
| 5. | 4069701 | [1] | PACKING;U-RING | |
| 6. | 0237309 | [1] | RING;BACK-UP | |
| 7. | 4094812 | [1] | RING;WIPER | |
| 8. | 0470203 | [1] | RING;WEAR | |
| 9. | 0470204 | [2] | U-RING | |
| 10. | 0470205 | [2] | RING;BACK-UP | |
| 11. | 4045634 | [1] | O-RING | |
| 12. | 4035660 | [1] | O-RING | |
| 13. | 0286306 | [1] | RING;BACK-UP | |
| 14. | 0286307 | [12] | BOLT;SOCKET | |
| 15. | 0470206 | [1] | VALVE;CHECK | |
| 16. | 0151312 | [4] | BOLT;SOCKET | |
| 17. | A590910 | [4] | WASHER;SPRING | |
| 18. | 94-2011 | [2] | PLUG | |
| 19. | 0470207 | [1] | PISTON | |
| 20. | 0461207 | [1] | STOPPER | |
| 21. | 0470208 | [1] | SPACER | |
