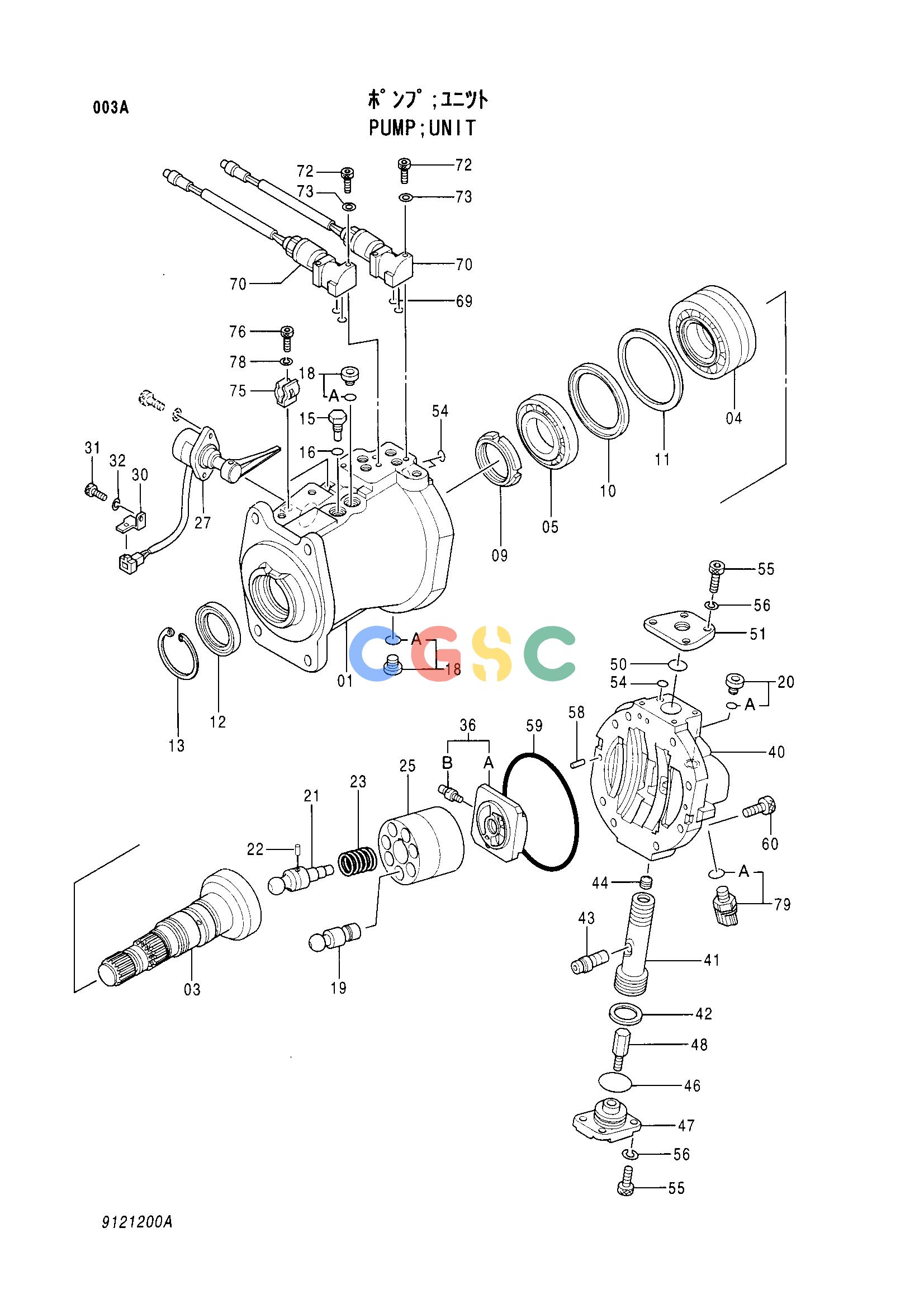

日立零件查询（EX100M-3）UNIT PUMP Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
993 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [1] | PUMP;UNIT | 9121200A |
| 01. | 1018998 | [1] | CASING;PUMP | |
| 03. | 2034788 | [1] | DISC;DRIVING | |
| 04. | 4175666 | [1] | BRG.;ROL. | |
| 05. | 4199307 | [1] | BRG.;ROL. | |
| 09. | 4178173 | [1] | NUT;BRG. | |
| 10. | 4339171 | [1] | RING | |
| 11. | 4330054 | [1] | RING;THRUST | Y4338907 |
| 11. | 4338907 | [1] | RING;THRUST | Y4330054 |
| 12. | 4232069 | [1] | SEAL;OIL | |
| 13. | 4116290 | [1] | RING;RETAINING | |
| 15. | 4310992 | [1] | PLUG | |
| 16. | 957366 | [1] | O-RING | |
| 18. | 9134111 | [2] | PLUG | |
| 18A. | 4509180 | [1] | O-RING | |
| 19. | 8043698 | [7] | PISTON | |
| 20. | 9134110 | [1] | PLUG | |
| 20A. | 957366 | [1] | O-RING | |
| 21. | 4233180 | [1] | SHAFT;CENTER | |
| 22. | 4198956 | [1] | PIN | |
| 23. | 4248499 | [1] | SPRING;COMPRES. | |
| 25. | 2027277 | [1] | ROTOR | |
| 27. | +++++++ | [1] | SENSOR;ANGLE | 9128251A |
| 30. | 4252767 | [1] | BRACKET | |
| 31. | M340613 | [1] | BOLT;SOCKET | |
| 32. | 4169516 | [1] | WASHER;SPRING | |
| 36. | 9128379 | [1] | VALVE ASS'Y | |
| 36A. | +++++++ | [1] | VALVE | |
| 36B. | +++++++ | [1] | PIN | |
| 40. | 1016614 | [1] | HEAD | |
| 41. | 3055313 | [1] | PISTON;SERVO | |
| 42. | 4272674 | [1] | RING;PISTON | |
| 43. | 4260211 | [1] | PIN | |
| 44. | 4179838 | [1] | SCREW;SET | |
| 46. | 4317635 | [1] | O-RING | |
| 47. | 4260500 | [1] | STOPPER | |
| 48. | 4260493 | [1] | STOPPER | |
| 50. | 4317637 | [1] | O-RING | |
| 51. | 3051812 | [1] | STOPPER | |
| 54. | 4317636 | [3] | O-RING | |
| 55. | M340820 | [8] | BOLT;SOCKET | |
| 56. | 4514388 | [8] | WASHER;SPRING | |
| 58. | 4099290 | [2] | PIN;SPRING | |
| 59. | 4241389 | [1] | O-RING | |
| 60. | M341245 | [8] | BOLT;SOCKET | |
| 69. | 4317636 | [4] | O-RING | |
| 70. | 9120292 | [2] | VALVE;SOLENOID | |
| 72. | M340645 | [4] | BOLT;SOCKET | |
| 73. | A590106 | [4] | WASHER;PLANE | |
| 75. | 4365826 | [2] | CLAMP | |
| 76. | M340613 | [2] | BOLT;SOCKET | |
| 78. | 4169516 | [2] | WASHER;SPRING | |
| 79. | 4339754 | [1] | SENSOR;PRES. | Y4355012 |
| 79. | 4355012 | [1] | SENSOR;PRES. | Y4339754 |
| 79A. | 4169516 | [1] | O-RING | Y4365826 |
| 79A. | 4365826 | [1] | O-RING | Y4169516 |
