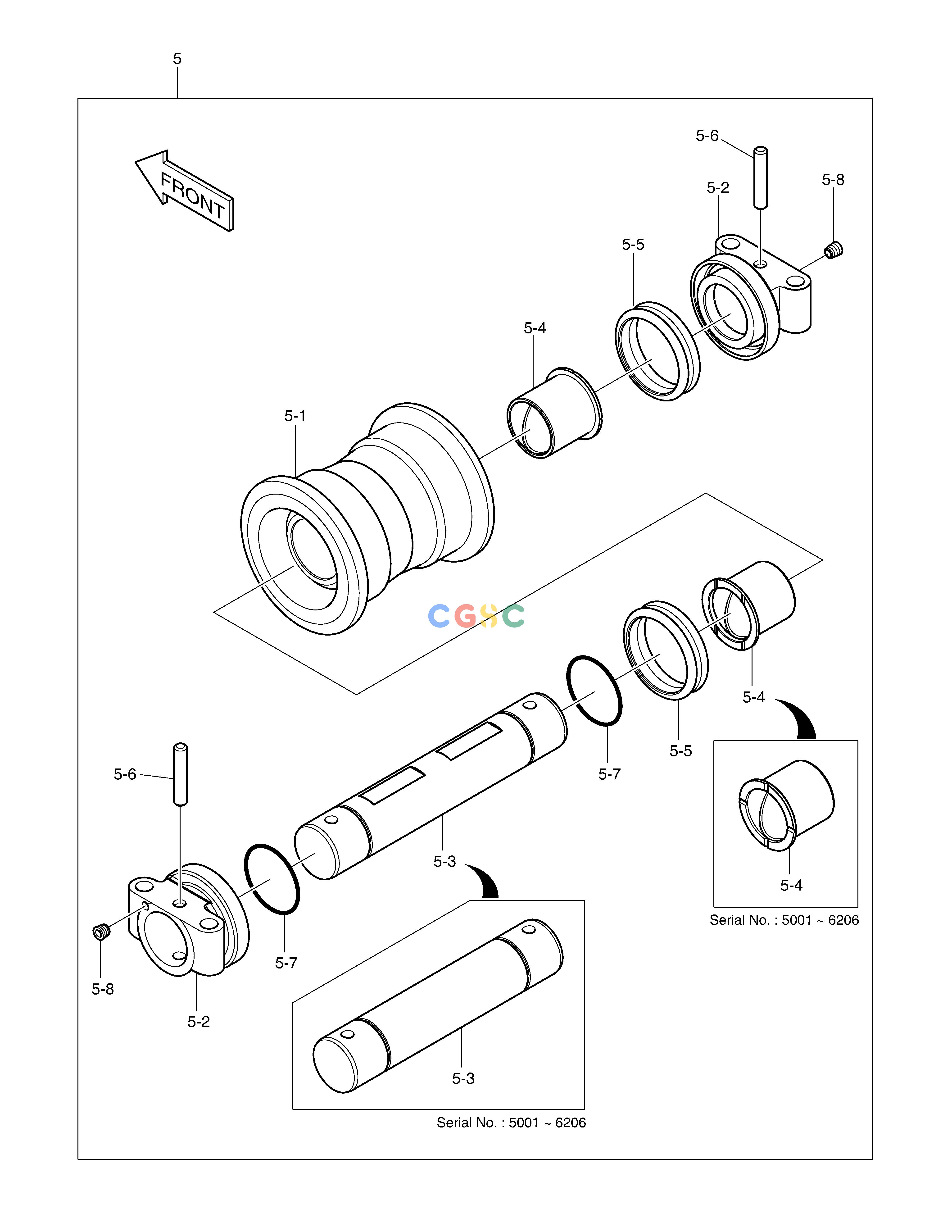

斗山零件查询LOWER ROLLER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
726 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1003013C
|
[-] |
TRACK FRAME
|
|
| -. |
650105-00069
|
[-] |
|
|
| 5. |
K1008896
|
[18] |
ROLLER;LOWER
|
200104-00001A
|
| 5. |
200104-00001A
|
[18] |
|
200104-00001B
|
| 5. |
200104-00001B
|
[18] |
|
|
| 5-1. |
NA00080
|
[1] |
BODY ASSY
|
|
| 5-2. |
K1011500
|
[2] |
COLLAR
|
|
| 5-2. |
110917-00005A
|
[2] |
|
110917-00005B
|
| 5-2. |
110917-00005B
|
[2] |
|
|
| 5-3. |
2112-6005
|
[1] |
SHAFT
|
|
| 5-3. |
130712-00054
|
[1] |
|
|
| 5-4. |
K1011141
|
[2] |
BUSHING
|
|
| 5-4. |
130702-00035
|
[2] |
|
|
| 5-5. |
K1011502
|
[2] |
SEAL;FLOATING
|
|
| 5-6. |
2123-6118
|
[2] |
PIN
|
|
| 5-7. |
S8010700
|
[2] |
O-RING
|
|
| 5-8. |
2181-1116D2
|
[2] |
PLUG
|
|
