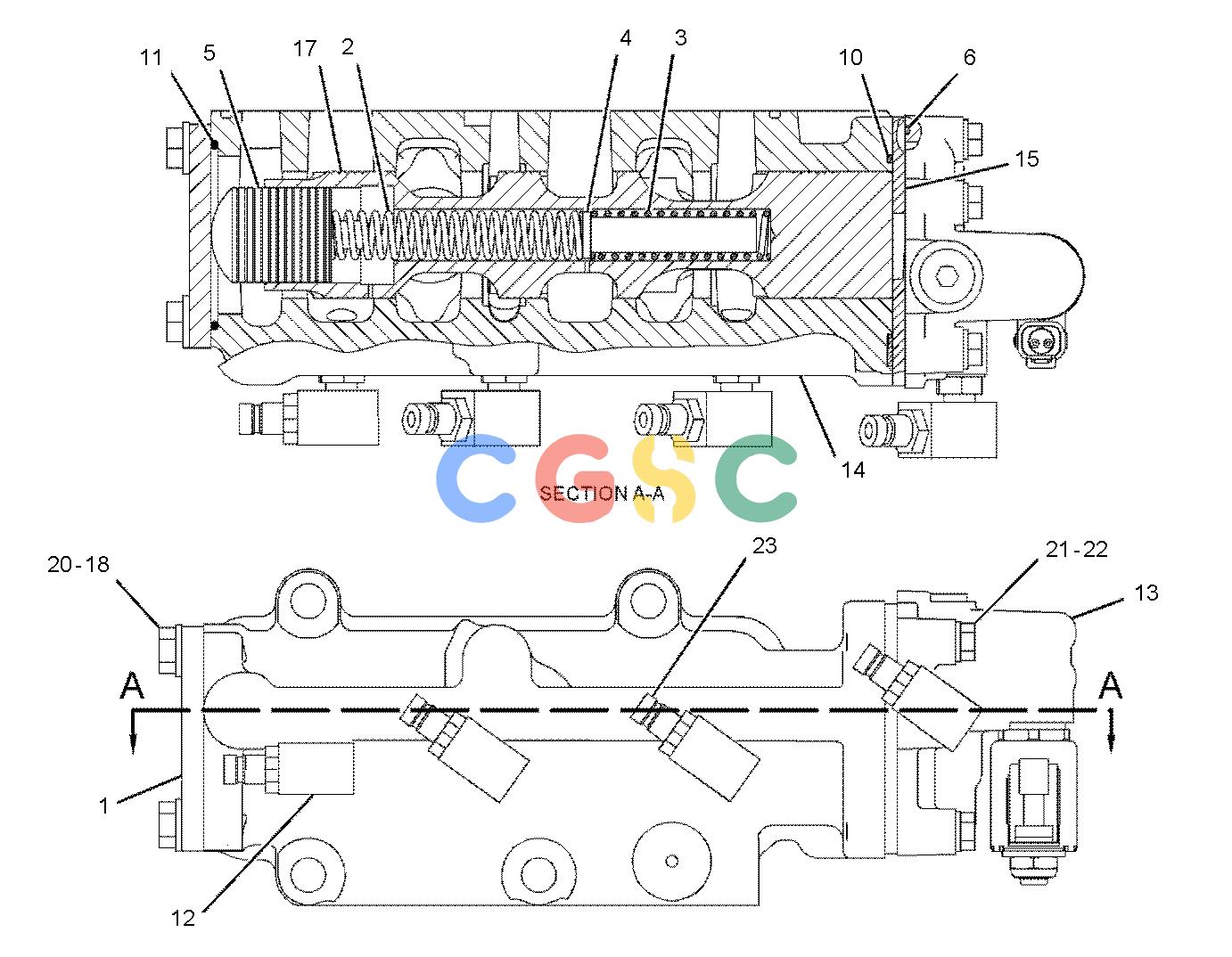

卡特零件查询（725C） 149-0978: VALVE GP-RETARDER HYD CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
811 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-5567 | [1] | COVER | |
| 2. | 1S-5646 | [1] | SPRING | |
| 3. | 2S-6538 | [1] | SPRING | |
| 4. | 2S-6547 | [1] | STOP | |
| 5. | 5S-4498 | [1] | SLUG | |
| 6. | 6D-7146 | [1] | SEAL-O-RING | |
| 10. | 8C-3089 | [1] | SEAL-O-RING | |
| 11. | 9M-7539 | [1] | SEAL-O-RING | |
| 12. | 315-9835 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-0484 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 13. | 147-0867Y | [1] | VALVE GP-REDUCING | |
| 14. | 147-0872 | [1] | BODY-VALVE | |
| 15. | 147-0874 | [1] | PLATE | |
| 17. | 183-1133 | [1] | SPOOL | |
| 18. | 6V-4248M | [4] | BOLT(M10X1.5X25-MM) | |
| 20. | 6V-5839 | [4] | WASHER(11X21X2.5-MM THK) | |
| 21. | 8T-0276M | [5] | BOLT(M8X1.25X45-MM) | |
| 22. | 9M-1974 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 23. | 164-5567 | [3] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
