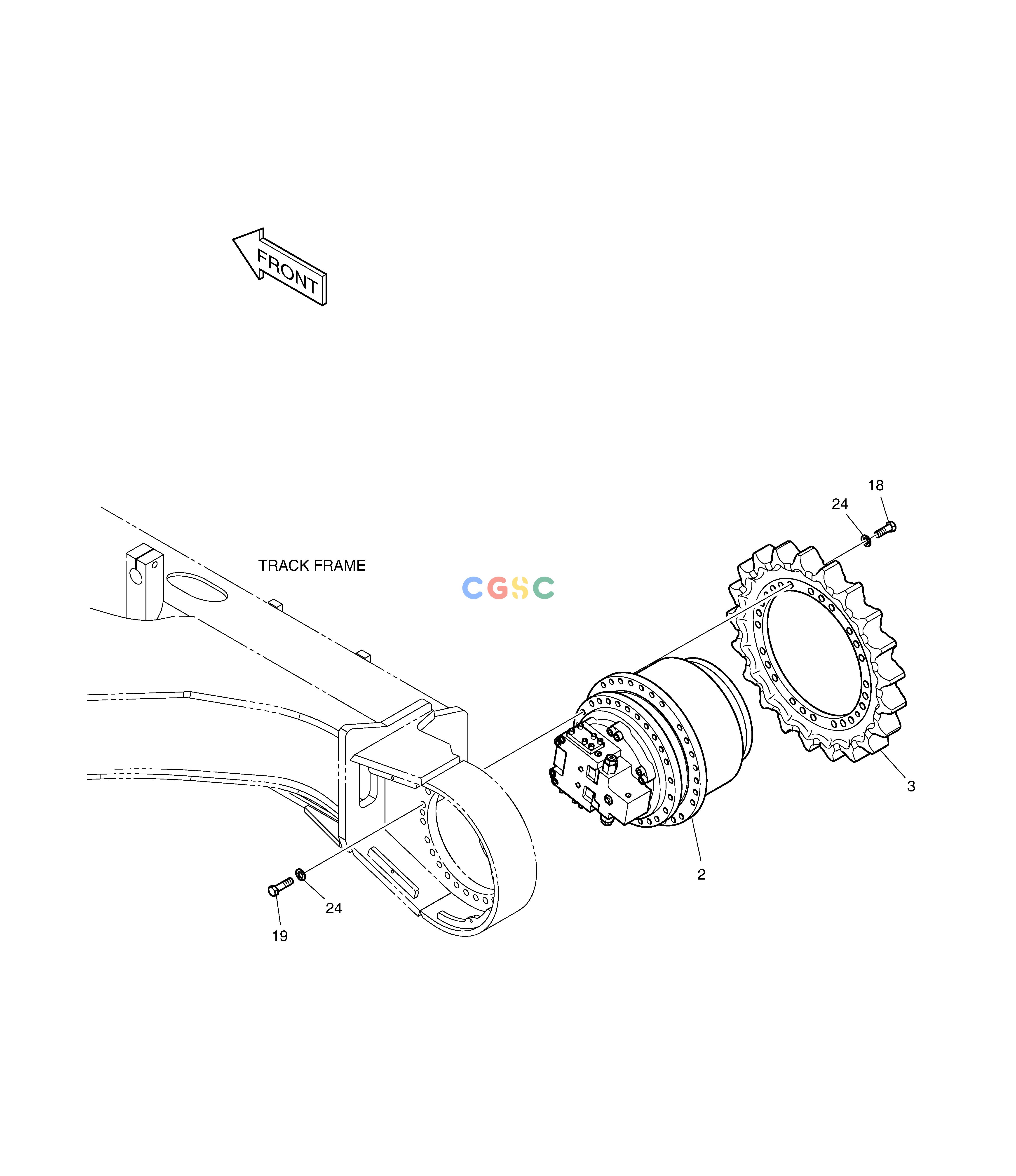

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 650105-00069 | [-] | ||
| -. | K1003013C | [-] | TRACK FRAME | |
| 18. | S0570066 | [48] | BOLT | |
| 19. | S0570366 | [52] | BOLT M20X2.5X75 | |
| 2. | 170401-00014 | [2] | 170401-00014A | |
| 2. | 170401-00014A | [2] | 170401-00014B | |
| 2. | 170401-00014B | [2] | ||
| 2. | K1003131 | [2] | TRAVEL DEVICE | 170401-00014 |
| 24. | 2114-9012A | [100] | WASHER | |
| 3. | 108-00022B | [2] | SPROCKET | 200108-00055 |
| 3. | 200108-00055 | [2] |
