沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPElectrical SystemTransmission Harness for Bulk Mounted PCU, Reverse Gear MGXEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
578 次

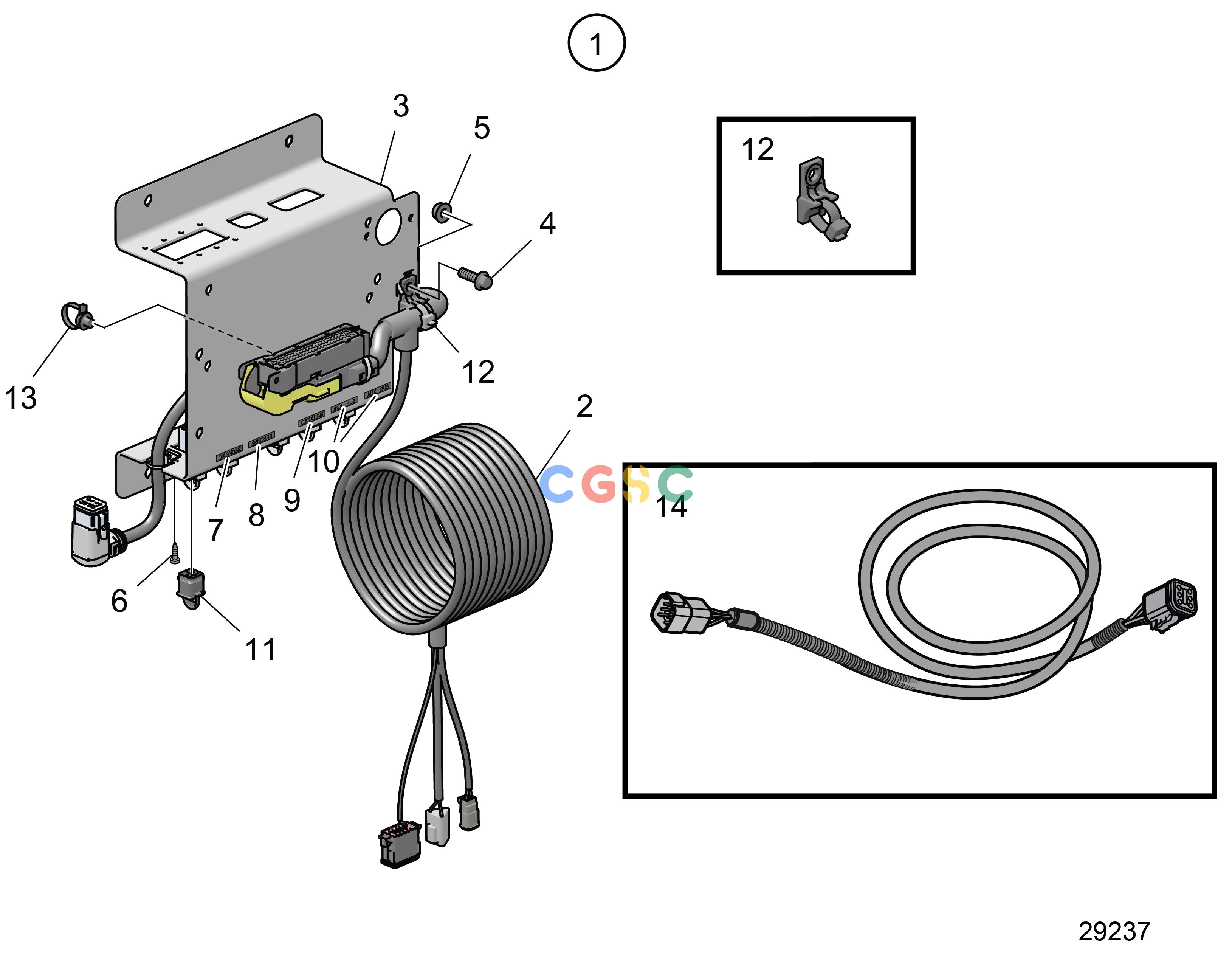

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22805356
|
[1] |
Wiring harness
|
|
| 2. |
|
|
|
|
| 3. |
22680027
|
[1] |
Bracket
|
|
| 4. |
984735
|
[1] |
Flange screw
|
|
| 5. |
990940
|
[1] |
Flange nut
|
|
| 6. |
972399
|
[20] |
Six point socket scr
|
|
| 7. |
21243308
|
[1] |
Decal
|
Diagnose
|
| 8. |
21227098
|
[1] |
Decal
|
Senders
|
| 9. |
21227096
|
[1] |
Decal
|
Datalink
|
| 10. |
21734847
|
[2] |
Decal
|
AUX Bus
|
| 11. |
3840433
|
[5] |
Sealing plug
|
|
| 12. |
993183
|
[1] |
Cable tie
|
|
| 13. |
990073
|
[2] |
Cable tie
|
|
| 14. |
874414
|
[1] |
Extension cable
|
Connection cable CIU, L=3m
|
| 14. |
874119
|
[1] |
Extension cable
|
Connection cable CIU, L=5m
|
| 14. |
874386
|
[1] |
Extension cable
|
Connection cable CIU, L=7m
|
| 14. |
874387
|
[1] |
Extension cable
|
Connection cable CIU, L=9m
|
| 14. |
874388
|
[1] |
Extension cable
|
Connection cable CIU, L=11m
|
