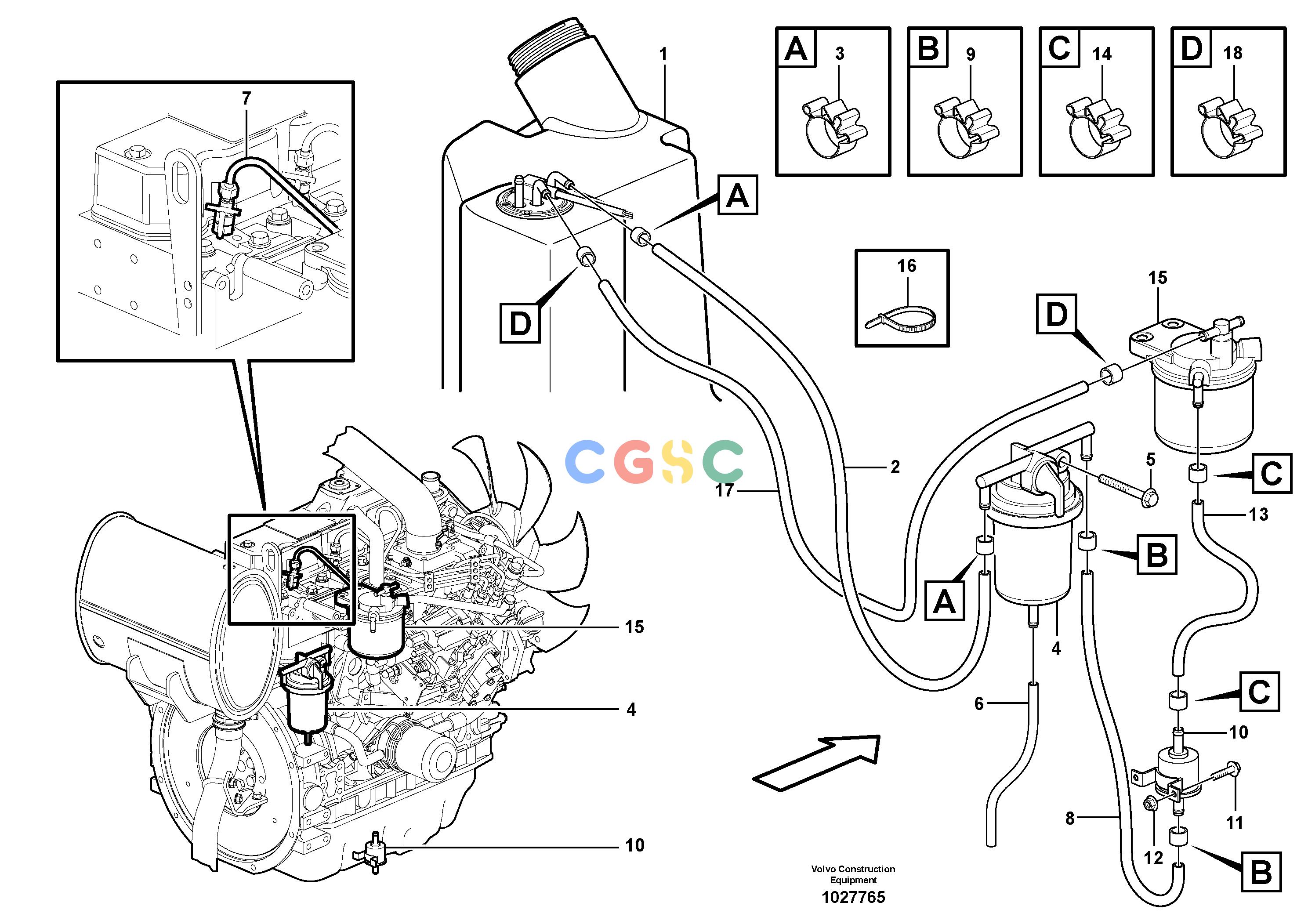

沃尔沃零件查询ECR48C Fuel pipesNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
691 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel tank
|
|
| 2. |
VOE15681443
|
[REQ] |
Tube
|
L = 2350 MM
|
| 3. |
VOE15681496
|
[2] |
Clamp
|
|
| 4. |
|
[1] |
Water Separator
|
|
| 5. |
VOE13965181
|
[1] |
Screw
|
|
| 6. |
VOE11807753
|
[1] |
Tube
|
L = 400 MM
|
| 7. |
|
[1] |
Injector
|
|
| 8. |
VOE15681443
|
[1] |
Tube
|
L = 650 MM
|
| 9. |
VOE15681496
|
[2] |
Clamp
|
|
| 10. |
|
[1] |
Feed Pump
|
|
| 11. |
VOE13947542
|
[2] |
Screw
|
|
| 12. |
VOE13945407
|
[2] |
Nut
|
|
| 13. |
VOE15681443
|
[1] |
Tube
|
L = 520 MM
|
| 14. |
VOE15681496
|
[2] |
Clamp
|
|
| 15. |
|
[1] |
Fuel filter
|
|
| 16. |
VOE4821292
|
[2] |
Cable tie
|
|
| 17. |
VOE15681443
|
[REQ] |
Tube
|
L = 2500 MM
|
| 18. |
VOE15681496
|
[2] |
Clamp
|
|
