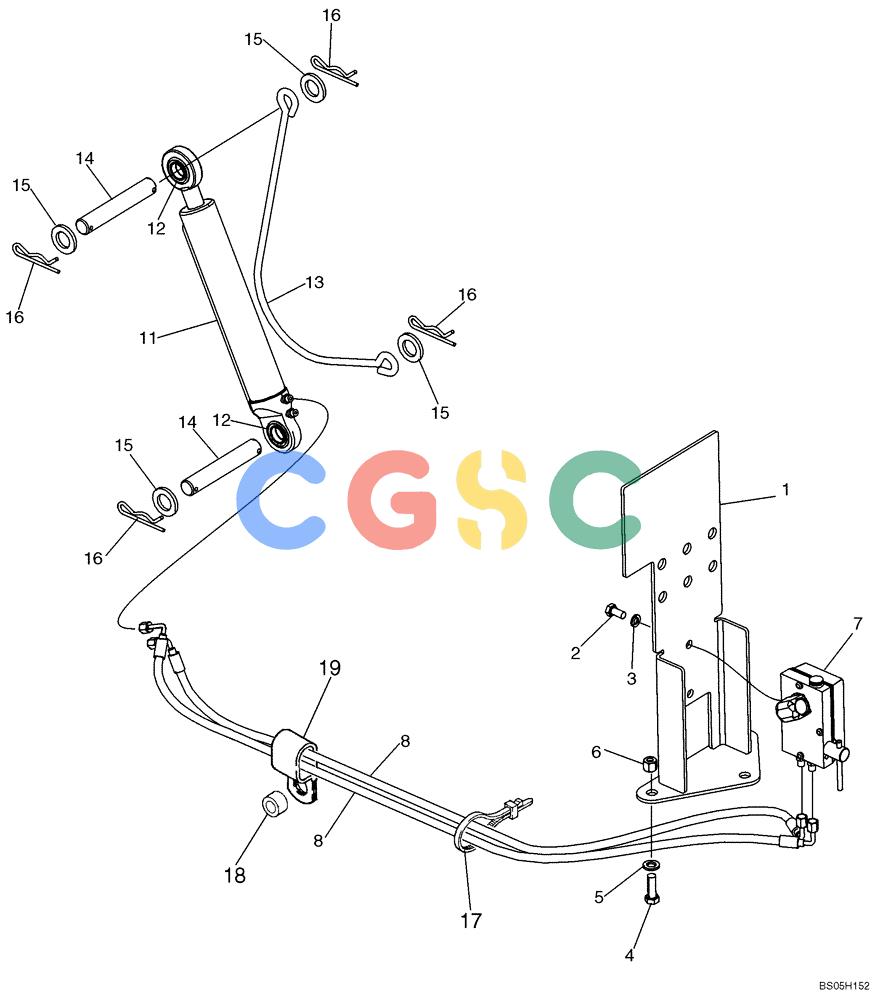

纽荷兰零件查询(D95) - CRAWLER DOZER - NA (1/06-) (09-24) - CAB OR CANOPY - TILT COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
152 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 433002A3 | [1] | BRACKET, SUPPORTING | BUR |
| 2. | 627-10020 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 3. | 140028 | [2] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 4. | 614-12035 | [3] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd | IH |
| 5. | 896-11012 | [3] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 6. | 832-10412 | [3] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 7. | 76074723 | [1] | HYDRAULIC PUMP | LECHand Pump, Cab or Canopy Tilt; Component Parts Not Serviced Separately |
| 8. | 87442124 | [2] | HOSE ASSY. | BUR1300 mm (51-3/16 in); Length Was 1400 mm (55-1/8 in) |
| 11. | 76074722 | [1] | HYDRAULIC CYLINDER | LECLift; Component Parts Not Serviced Separately |
| 12. | 79068258 | [4] | WASHER | LECSpecial |
| 13. | 79093006 | [1] | CABLE | LECCable |
| 14. | 437227A1 | [2] | PIN | BUR |
| 15. | 896-11024 | [4] | WASHER,26mm ID x 44mm OD x 5mm Thk | IH Superseded by part number: 87016608 |
| 16. | 136-251 | [4] | HAIR PIN COTTER,Int, 7/16" x .177" | CAS |
| 17. | L18337 | [1] | CABLE TIE,9.95"-12.1" lg | CAS Superseded by part number: 529070 |
| 18. | 87351518 | [1] | SPACER | BUR |
| 19. | D49498 | [1] | CLAMP | CASDouble, 22.2 dia |
