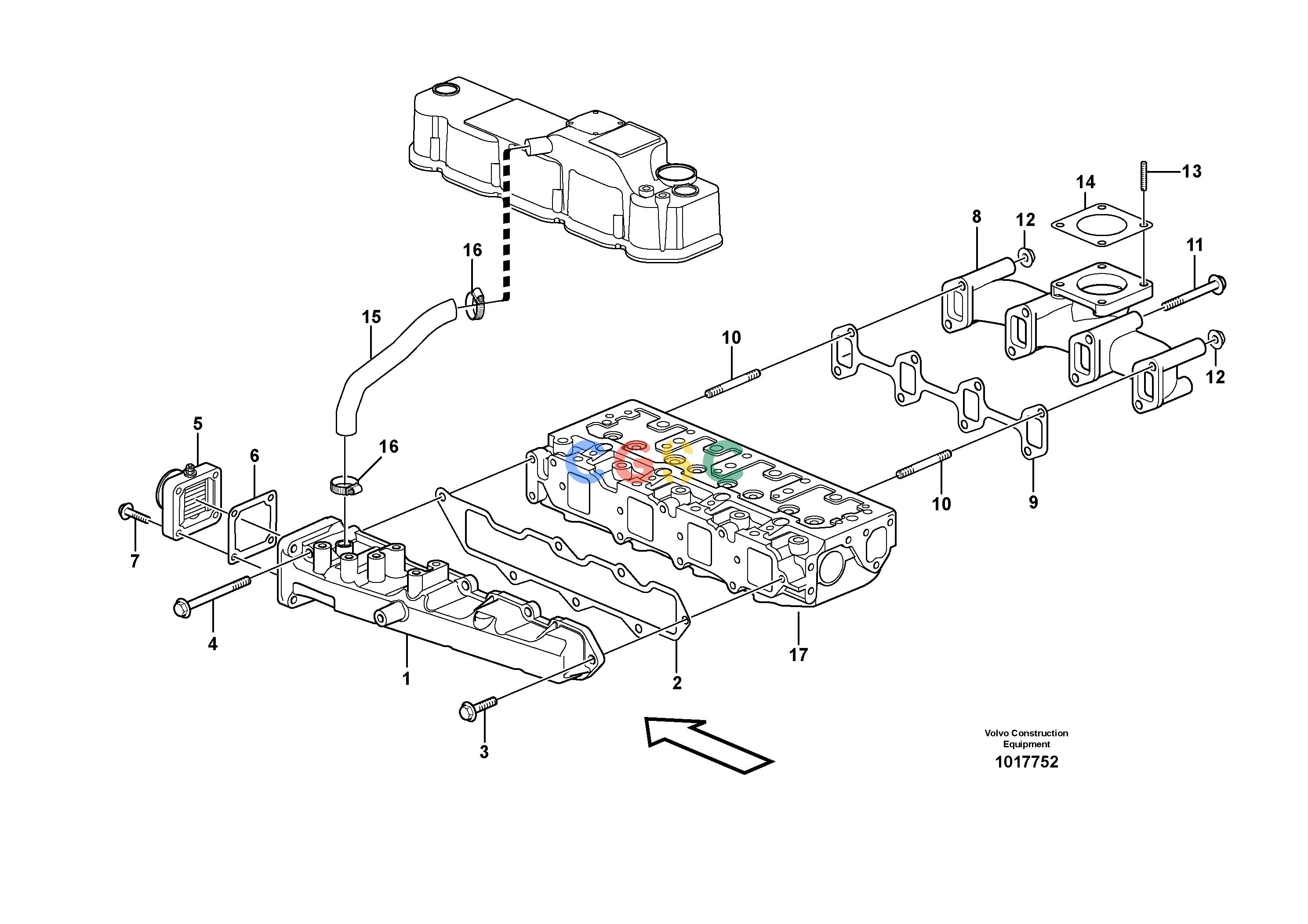

沃尔沃零件查询ECR48C Inlet manifold and exhaust manifoldNone11806938-11808572VOE11806938NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11715314
|
[1] |
Inlet manifold
|
|
| 2. |
VOE11714613
|
[1] |
Gasket
|
|
| 3. |
VOE11714388
|
[6] |
Bolt
|
|
| 4. |
VOE11714388
|
[1] |
Bolt
|
|
| 4. |
VOE11713672
|
|
Bolt
|
|
| 5. |
VOE11713673
|
[1] |
Heater
|
|
| 5. |
VOE15079370
|
|
Joint
|
|
| 6. |
VOE11713674
|
[1] |
Gasket
|
|
| 7. |
VOE11714281
|
[4] |
Flange screw
|
|
| 8. |
VOE11715315
|
[1] |
Exhaust manifold
|
|
| 9. |
VOE11714327
|
[1] |
Gasket
|
|
| 10. |
VOE14521556
|
[2] |
Bolt
|
|
| 11. |
VOE11714632
|
[6] |
Bolt
|
|
| 12. |
VOE14521543
|
[2] |
Nut
|
|
| 13. |
VOE14521558
|
[4] |
Bolt
|
|
| 14. |
VOE11714614
|
[1] |
Gasket
|
|
| 15. |
VOE11713668
|
[1] |
Hose
|
|
| 16. |
VOE11713669
|
[2] |
Clamp
|
|
| 17. |
|
[1] |
Cylinder head
|
|
