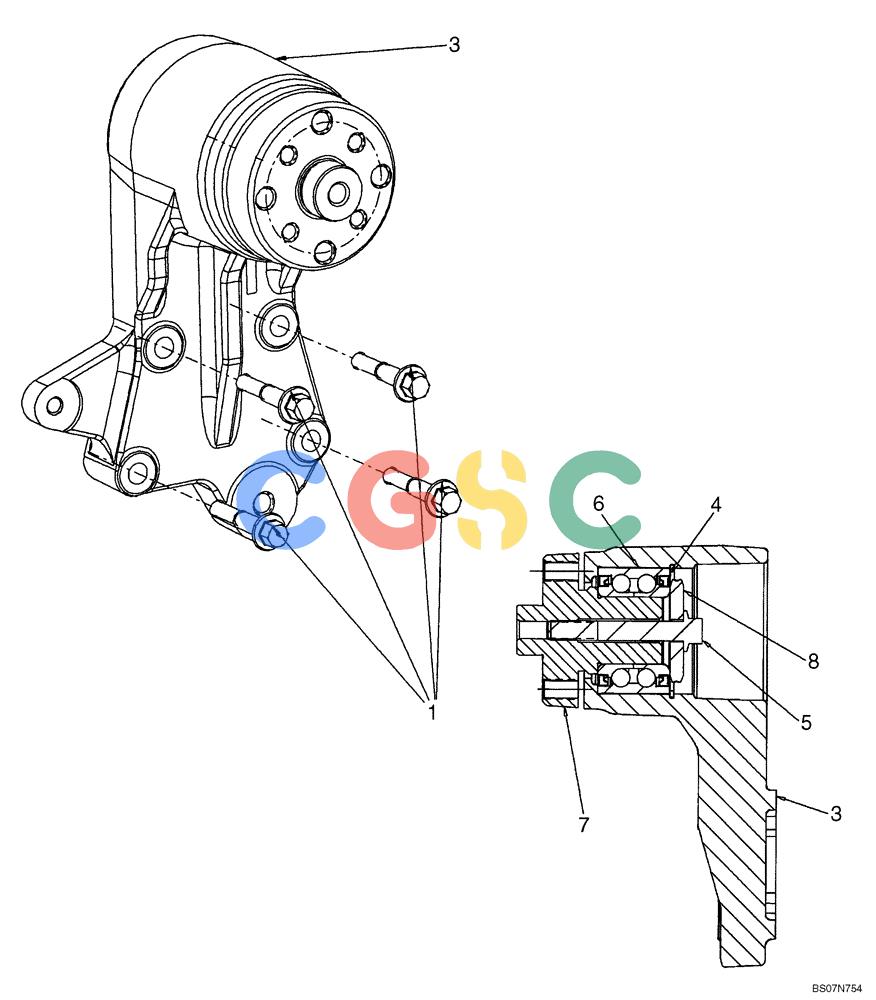

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (02-02A) - FAN DRIVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
751 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899053 | [4] | SCREW,Hex Flg, M8 x 45 | TOR |
| 3. | 2853210 | [1] | BRACKET | TORIncl. Refs. 4 - 8 |
| 4. | 2852171 | [1] | SNAP RING | TOR Superseded by part number: 32324 |
| 5. | 2852172 | [1] | BOLT,Flng, M10 x 1.5 x 70mm | TOR Superseded by part number: 16676834 |
| 6. | 4892732 | [1] | BALL BEARING,34mm ID x 64mm OD x 37mm W | TOR |
| 7. | 4892426 | [1] | HUB | TOR |
| 8. | 4890732 | [1] | RETAINER,11.50mm ID x 52mm OD x 7mm | TOR |
