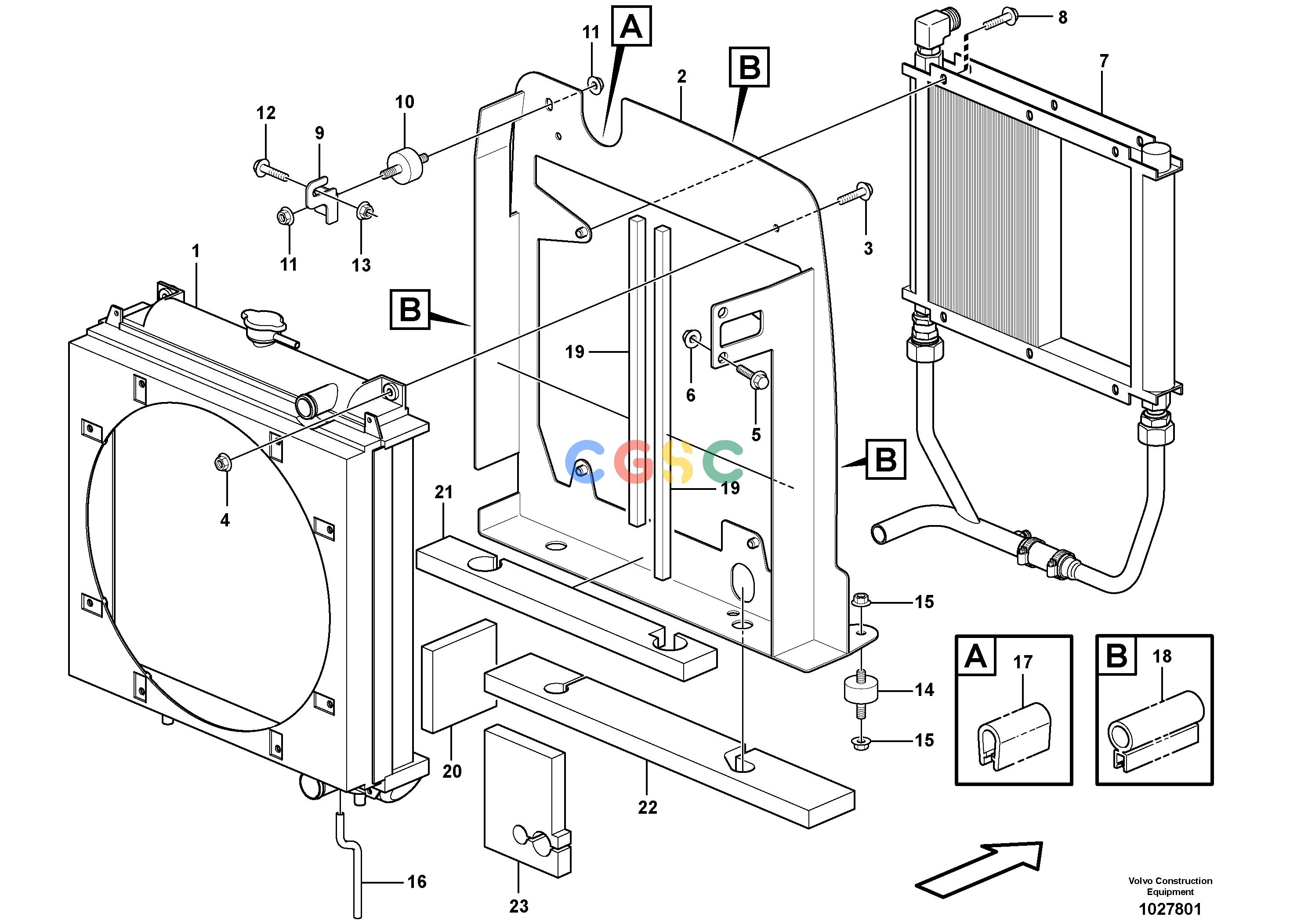

沃尔沃零件查询ECR48C Radiator with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
845 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Radiator
|
|
| |
VOE11806940
|
[1] |
Radiator
|
|
| 2. |
VOE11807055
|
[1] |
Support
|
|
| 3. |
VOE60113082
|
[2] |
Flange screw
|
|
| 4. |
VOE13945408
|
[2] |
Nut
|
|
| 5. |
VOE60113082
|
[2] |
Flange screw
|
|
| 6. |
VOE13945408
|
[2] |
Nut
|
|
| 7. |
|
[1] |
Oil Cooler
|
|
| 8. |
VOE946440
|
[4] |
Flange screw
|
|
| 9. |
VOE11807455
|
[1] |
Support
|
|
| 10. |
VOE11806235
|
[1] |
Stopping device
|
|
| 11. |
VOE13971095
|
[2] |
Flange nut
|
|
| 12. |
VOE946329
|
[1] |
Flange screw
|
|
| 13. |
VOE13971095
|
[1] |
Flange nut
|
|
| 14. |
VOE11806235
|
[2] |
Stopping device
|
|
| 15. |
VOE13971095
|
[4] |
Flange nut
|
|
| 16. |
VOE11806885
|
[1] |
Tube
|
|
| 17. |
VOE11808679
|
[1] |
Rubber strap
|
|
| 18. |
VOE11808677
|
[1] |
Sealing strip
|
|
| 19. |
VOE11807022
|
[2] |
Insulating material
|
|
| 20. |
VOE11807527
|
[1] |
Insulating material
|
|
| 21. |
VOE11807493
|
[1] |
Insulation
|
|
| 22. |
VOE11807494
|
[1] |
Insulating material
|
|
| 23. |
VOE11807593
|
[1] |
Insulating material
|
|
